DURR Small Vapour recovery pump vacuum pump for vapour recovery nozzle Quality Choice
- 1000 Set / Sets per Month
- SHANGHAI/NINGBO
- T/T Credit Card
-
ZVA DN32 high volume nozzle auto fuel nozzle of Service Station Pump Parts
-
Auto Seal Fueling Oil Nozzle fuel dispenser nozzle Oil Injection Nozzle Zva dn25 Automatic Delivery Nozzle for Fuel dispenser
-
hs price TDW 11b oil gun Automatic nozzle venturi nozzle for fuel filling station
-
oil nozzles 11a TDW 11a filling nozzle automatic nozzle price of fuel nozzle
-
Zva Fuel Dispenser Nozzle Zva Fuel Oil Nozzle zva type nozzle of black Zva Fuel Nozzle
-
Zva Nozzle Dn16 Automatic Nozzle ZVA oil gun fuel Nozzle ZVA Oil Nozzle for va Fuel Dispenser
Quality Choice
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | TDW | Model Number: | TDW-VRP70 |
| Theory: | Vacuum Pump | Structure: | Diaphragm Pump | Usage: | Air Pump |
| Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Diesel/gasoline |
| Pressure: | Low Pressure | Application: | Other, AIR PUMP |
Product Description

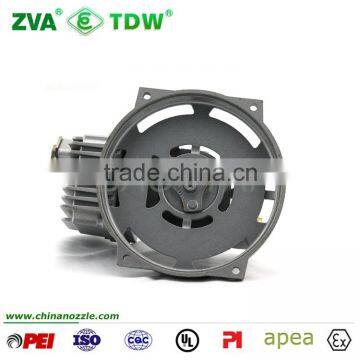

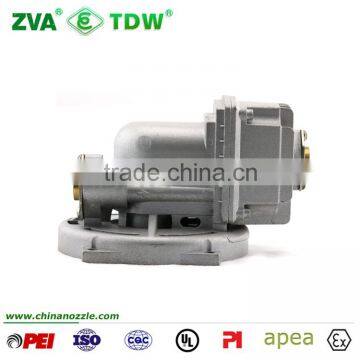

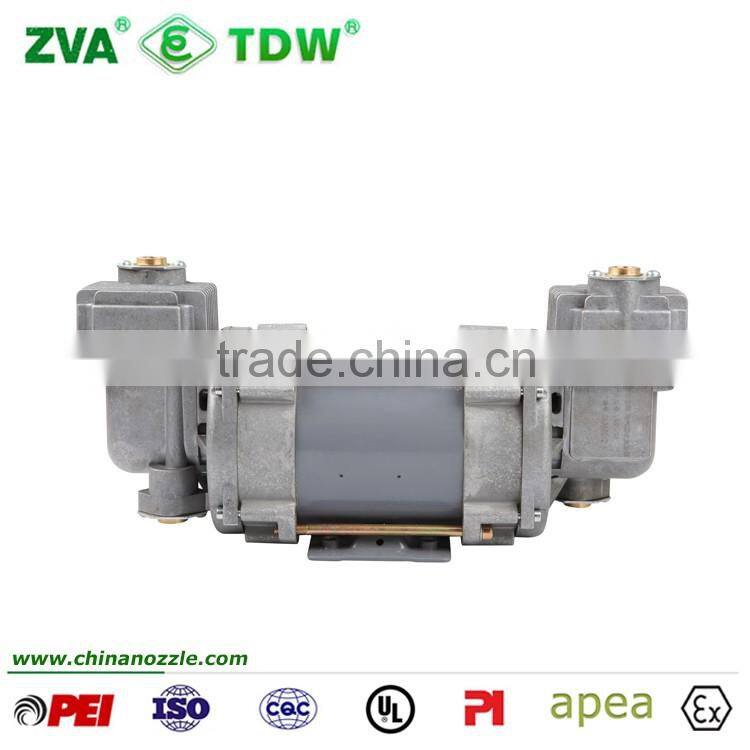

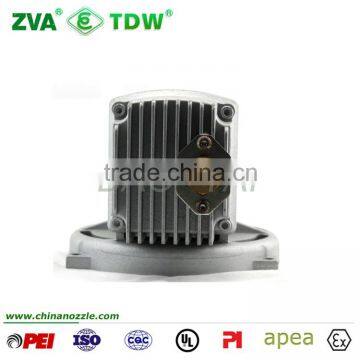

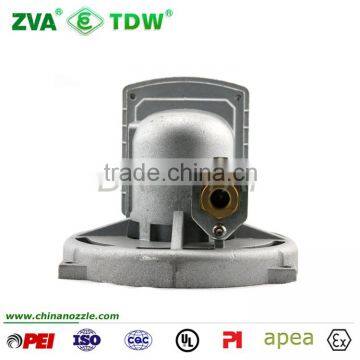

DURR Small Vapour recovery pump vacuum pump for vapour recovery nozzle
The TDW VRP-70 Vapour Recovery Pumps are vacuum pumps with integrated flame arresters arranged on the inlet and
outlet sides to suck off explosion - capable fuel vapour/air mixtures into vapour recovery device s of dispensing devices
at filling stations.
Features and Benefits:
Ø Protection System - To prevent a flame breakthrough in deflagrations or stable detonations of explosion - capable vapour/air
mixtures of explosion group in the case of ignition on the dispensing valve and the following subsequent max. hose and pipe
length: gas return hose with an internal diameter < 10mm in a coaxial hose <6mm, or optionally coaxial hose <6mm with an
outer diameter <38mm, together with a subsequent ID 15pipe (G 1/2")<3mm.
Ø The gas temperature in the outlet line must not exceed 95° C±5° C.
Ø For faultless function is necessary to keep the product clean.
Ø Selective of Single pump head or double pump head.
Ø 100% Factory Tested.
Technical Specifications | |
Resistance to Pressure | 0.3 Mpa |
Setting Pressure | ≤0.18Mpa |
Max Flow rate | 70L/m |
Current | <0.9A |
Voltage | 220V/380V |
Frequency | 50HZ |
Moter Power | 380w |
Motor Speed | 2820r/min |
Noise Sound | <70dB |
Temperature | -25° C to 55° C |
Net Weight | 12.80KG(Single), 14.95KG (Double) |

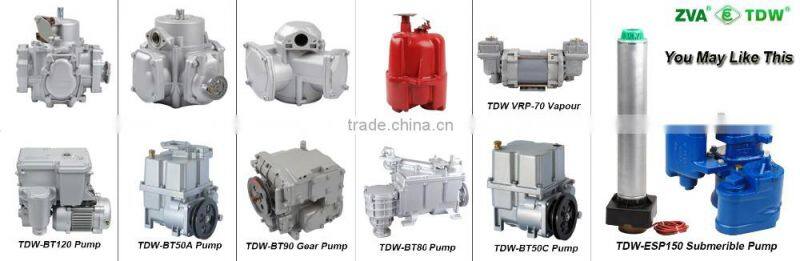

You may like our other flow meter, fuel transfer pump for fuel dispenser.(Click!)
1- Could you develop our own design? Yes
2- The fuel nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
