Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights

Dongguan Sheen Electronic Technology Co., Ltd.
Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights thumbnail-1
Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights thumbnail-2
Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights thumbnail-3
Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights thumbnail-4
Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights thumbnail-5
Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights thumbnail-6
Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights photo-1

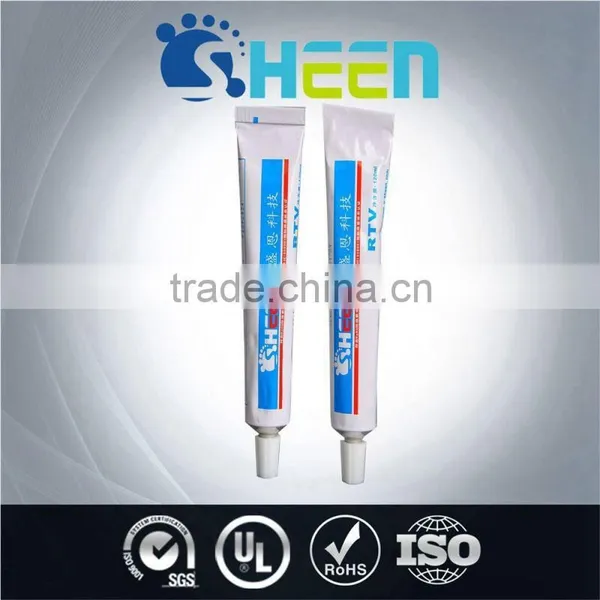

Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights photo-2

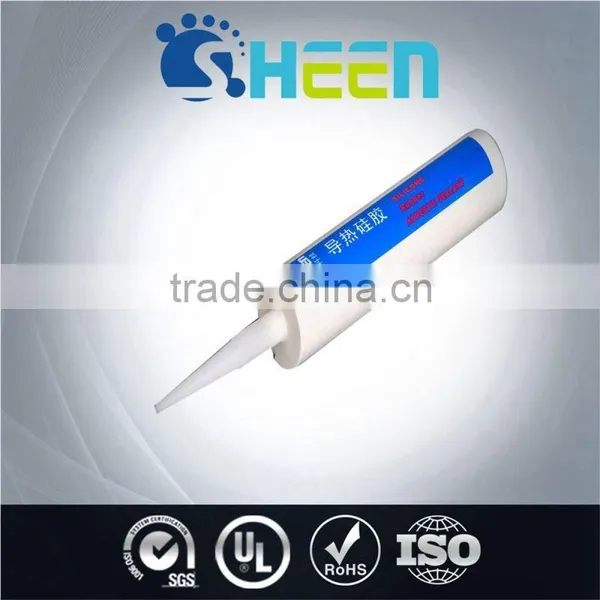

Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights photo-3

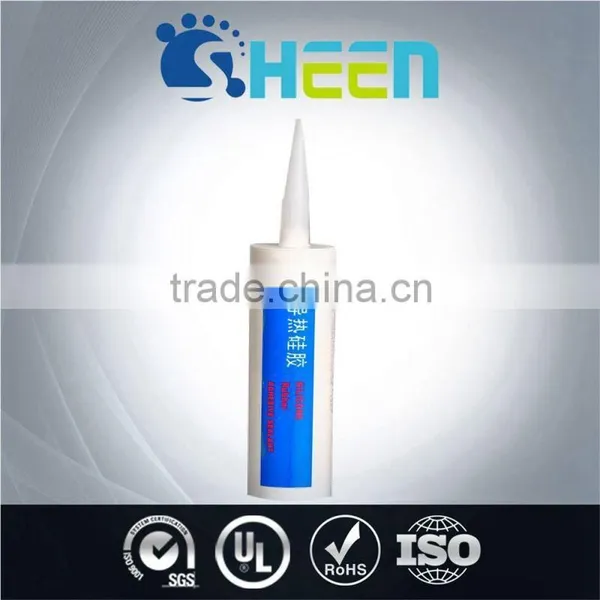

Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights photo-4

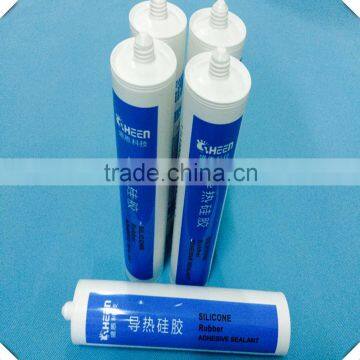

Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights photo-5

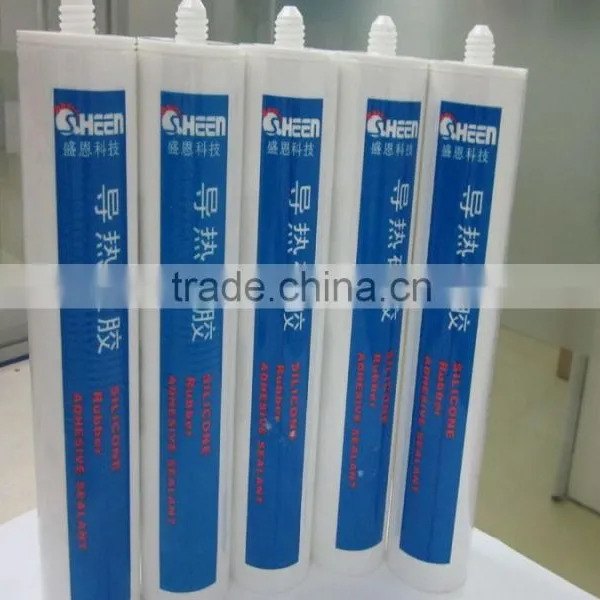

Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights photo-6
US$ 0.04 - 0.1 MOQ: 100 Milliliters
Key Specifications
Get Latest Price
Other Names:
Thermal Conductive Silicone Adhesive
Place of Origin:
Guangdong, China
Classification:
Other Adhesives
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Other Names Thermal Conductive Silicone Adhesive
Place of Origin Guangdong, China
Classification Other Adhesives
Main Raw Material Other, Silicone RTV
Usage Other, LED lighting,Heat Pipe assemblies,Notebook and Desktop PCS, etc.
Brand Name Sheen
Model Number TIV800-10
Type Liquid Glue

Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights

Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights

Product Description
Product Information



Product Name
Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights
Item No.TIV800-10Test Method
ColorWhiteVisual

Construction & Compost

Silicone RTV

ExteriorModerate Flow

Tack free time( min)
5~10

Elongation (%)
150~200

Specific Gravity, (g/cc)
2.0~3.0
ASTM D297
Hardness, (Shore A)40~60
ASTM D2240
Tensile Strength, (kgf/cm2)

20~30



ASTM D412
Continuous Use Temp,(°C)
-60 to 250 °C

BreakdownVoltage, (KV/mm)18~25
ASTM D149
Dielectric loss( 1MHZ)≤4×10-3
ASTM D150
Volume Resistivity (Ohm.cm)

≥3.0 X 1014

ASTM D257
Flame Rating

UL94 V0

Equivalent UL
Thermal Conductivity,(W/m-K)

1.0

ASTM D5470
IntroductionThe TIV800-10 Thermal Silicone RTV has high bond  strength to coherer,ceramic,glass or plastic surfaces, and has good thermal conductivity. It can harder at ordinary temperature then the elastomer is electrically isolated and ageing resistive.
Features and Benefits

-1.0 W/mk thermal conductivity

-High bond strength to coherer,alloy,ceramic,glass or plastic surfaces

-Withstand heat variation long term

-Electrically isolating

-ROHS compliant

Typical Applications Include-LED lighting
-Cooling Components to the Chassis, Frame or other type of heat spreader
- Heat Pipe assemblies
- Motor control
- Telecommunication hardware
- Notebook and Desktop PCS

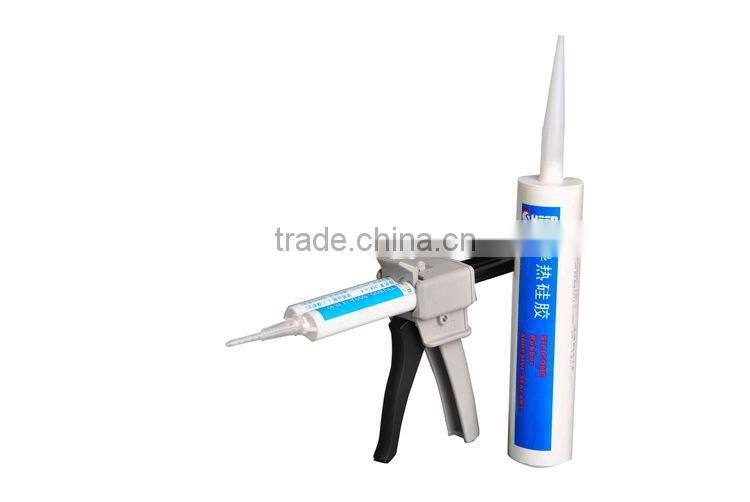

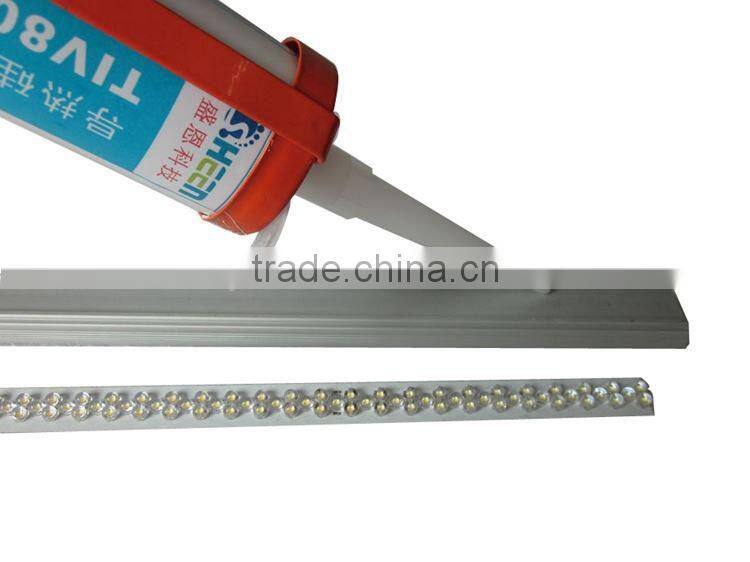

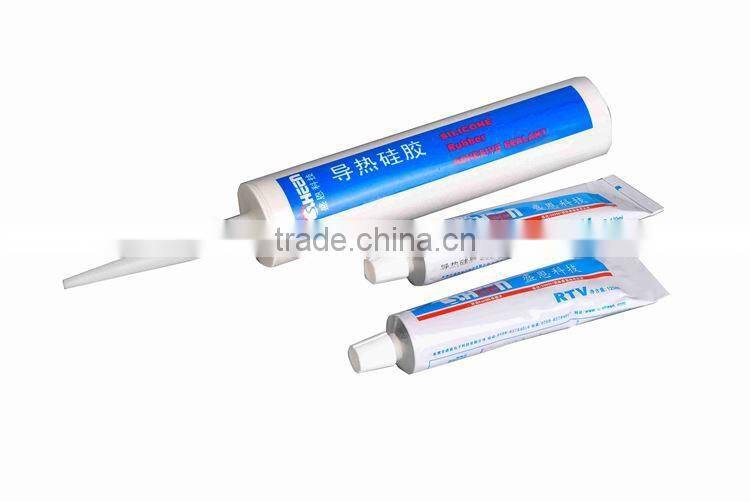

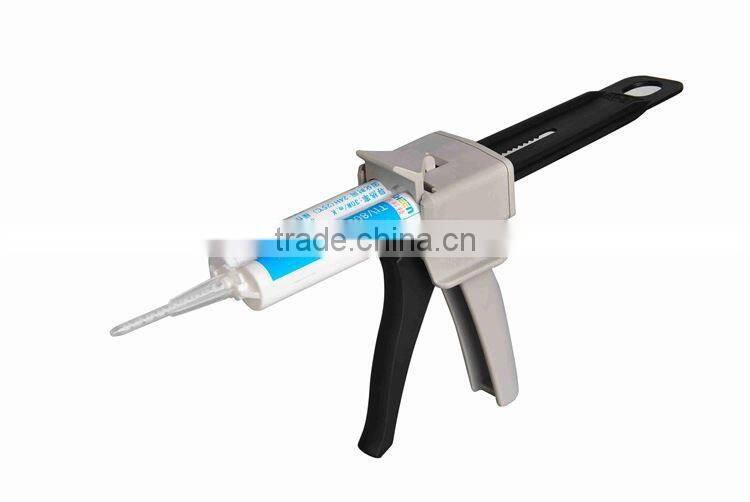

Product Display

 Quality Assured Thermal Isolation Fast Cured Silicone For LED LightsQuality Assured Thermal Isolation Fast Cured Silicone For LED LightsQuality Assured Thermal Isolation Fast Cured Silicone For LED LightsQuality Assured Thermal Isolation Fast Cured Silicone For LED Lights



Hot Sale

" href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">pad >		" href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank"> tape >		" href="http://sheen.en.china.cn/productgrouplist-801533008/Thermal_silicone_RTV.html" target="_blank">Thermal silicone RTV >" href="http://sheen.en.china.cn/productgrouplist-801584663/Thermal_Grease.html" target="_blank">Thermal grease >
" href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank">Phase change thermal
" href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank"> interface materials >		" href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank"> silicone pug >		" href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank"> insulators >		" href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank"> graphite sheets >
" href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank">Thermally double
" href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank"> component silicone >		" href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank"> plastics >		" href="http://sheen.en.china.cn/productgrouplist-801533811/Epoxy_Adhesive.html" target="_blank">Epoxy adhesive >" href="http://sheen.en.china.cn/productlist.html" target="_blank">More products >

Product Advantage

  • Fill the air gap between heating devices and heat sink or metal base

  • Improve the efficiency and service life of heating components

  • Ultra-strong adhesion to various surface

  • High thermally conductive acrylic adhesive

  • Double-sided pressure-sensitive adhesive tape

  • Effectively replace lubricating grease and mechanical fastening

Quality Assured Thermal Isolation Fast Cured Silicone For LED Lights

  • With good adhesion to most metal, glass, alloy and plastic materials, etc.

  • Solidified under room temperature

  • With good electrical insulation and weather resistance

  • No preheating process is required for the product

  • Excellent adhesion and sealing strength with good conductivity

  • Suitable for auto-dispensing and screen printing



Compared with traditional materials, the phase change thermal interface materials can cover and fill the gap and hollow between the contact interfaces when being liquid.


Company Information
Company Overview

Certificate

Contact
We can make many specifications according to your request!
For more information. Please contact us.
Tel+86-769-82784016Address6th Floor, Building M, Jinxiongda Science and
Technology Park, Datanglang Villiage, Dalingshan
Town, Dongguan City, Guangdong Province, China
Fax+86-769-82784017
Web/
/
  E-Mail
sheen.trading @foxmail.com



FAQ
FAQ



1. What are your main products?

We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal grease. Samples of addition cure food grade silicone rubber are available, but the freights need to be paid by the buyers.

2. What about the product quality and which certificate do you have?

We have UL certificate and RoHS certificate.

3. How long does it take to deliver after order?

For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements.

4. What about your after-sale service?

We fully guarantee our product quality and will provide free technical guidance on operations.
