Product Details
Other Names: | Thermal Conductive Silicone Adhesive | Place of Origin: | Guangdong, China | Classification: | Other Adhesives |
Main Raw Material: | Other, Silicone RTV | Usage: | Other, LED lighting,Heat Pipe assemblies,Notebook and Desktop PCS, etc. | Brand Name: | Sheen |
Model Number: | TIV800-20 |
Product Description
Nice Quality Weather Resistance Thermal Two Component RTV Silicone Rubber For Motor Control
Product Information |
Product Name | Nice Quality Weather Resistance Thermal Two Component RTV Silicone Rubber For Motor Control | |
Item No. | TIV800-20 | Test Method |
Color | White | Visual |
Construction & Compost | Silicone RTV | |
Exterior | Moderate Flow | |
Tack free time( min) | 5~10 | |
Elongation (%) | 130~180 | |
Specific Gravity, (g/cc) | 2.3~3.3 | ASTM D297 |
Hardness, (Shore A) | 40~60 | ASTM D2240 |
Tensile Strength, (kgf/cm2) | 20~30 | ASTM D412 |
Continuous Use Temp,(°C) | -60 to 250 °C) | |
BreakdownVoltage, (KV/mm) | 18~25 | ASTM D149 |
Dielectric loss( 1MHZ) | ASTM D150 | |
Volume Resistivity (Ohm.cm) | ≥2.0 X 1014 | ASTM D257 |
Flame Rating | UL94 V0 | Equivalent UL |
Thermal Conductivity,(W/m-K) | 2.0 | ASTM D5470 |
Introduction | The TIV800-20 Thermal Silicone RTV has high bond strength to coherer,ceramic,glass or plastic surfaces, and has good thermal conductivity. It can harder at ordinary temperature then the elastomer is electrically isolated and ageing resistive. | |
Features and Benefits | -2.0 W/mk thermal conductivity -High bond strength to coherer,alloy,ceramic,glass or plastic surfaces -Withstand heat variation long term -Electrically isolating -ROHS compliant | |
Typical Applications Include | -LED lighting - Notebook and Desktop PCS |

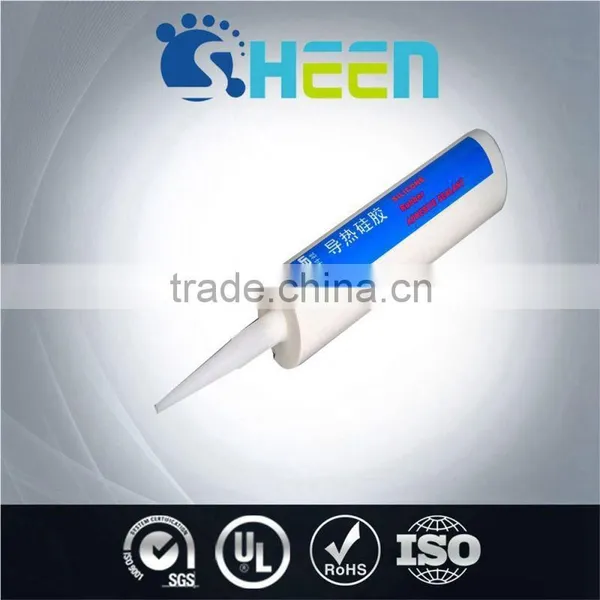

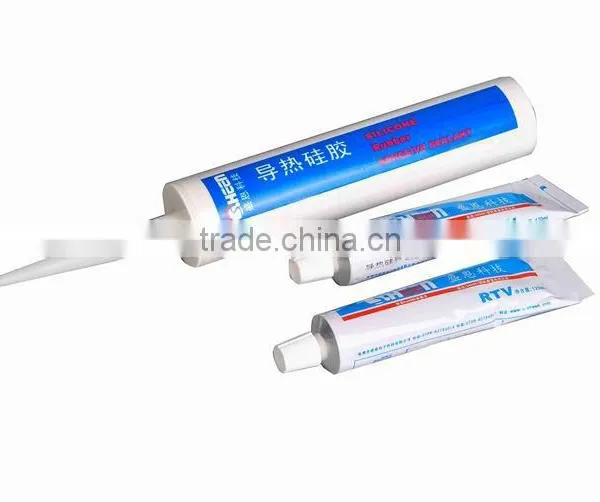

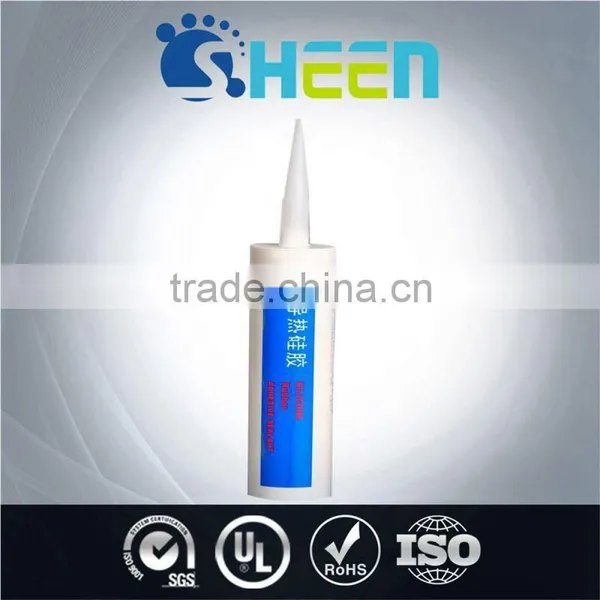

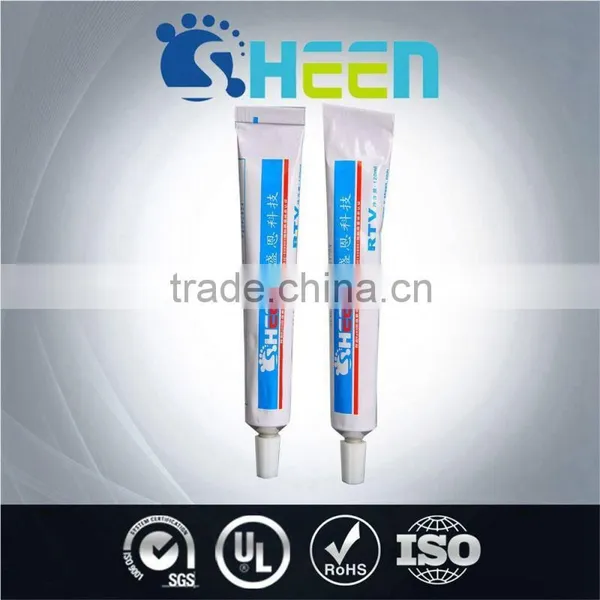

Product Display |
Hot Sale |
" href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">pad > | " href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank"> tape > | " href="http://sheen.en.china.cn/productgrouplist-801533008/Thermal_silicone_RTV.html" target="_blank">Thermal silicone RTV > | " href="http://sheen.en.china.cn/productgrouplist-801584663/Thermal_Grease.html" target="_blank">Thermal grease > |
" href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank">Phase change thermal " href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank"> interface materials > | " href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank"> silicone pug > | " href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank"> insulators > | " href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank"> graphite sheets > |
" href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank">Thermally double " href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank"> component silicone > | " href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank"> plastics > | " href="http://sheen.en.china.cn/productgrouplist-801533811/Epoxy_Adhesive.html" target="_blank">Epoxy adhesive > | " href="http://sheen.en.china.cn/productlist.html" target="_blank">More products > |
Product Advantage |
|
|
|
|
Compared with traditional materials, the phase change thermal interface materials can cover and fill the gap and hollow between the contact interfaces when being liquid. |
Company Overview |
Certificate |
Contact |
We can make many specifications according to your request! For more information. Please contact us. | ||||||||||
|
FAQ |
1. What are your main products? We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal grease. Samples of thermal two component RTV silicone rubber are available, but the freights need to be paid by the buyers. 2. What about the product quality and which certificate do you have? We have UL certificate and RoHS certificate. 3. How long does it take to deliver after order? For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements. 4. What about your after-sale service? We fully guarantee our product quality and will provide free technical guidance on operations. |
