Home > Products > Laser Welding Machine > High precision fiber laser welding machine
High precision fiber laser welding machine
- 500 Set / Sets per Month
- Any China Port
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Chongqing, China | Brand Name: | BENDE |
Model Number: | BD-HM200W | Single Pulse Energy: | 80 joules | Pulse Width: | 0.3-20ms adjustable |
Wavelength: | 1064nm | Focal Spot Diameter: | 0.1-3.0mm | Max. Output Power: | 400W |
Dimensions: | 1600mm*800mm*1500mm | Usage: | welding | Power(W): | 200W |
Certification: | CCC, CE | Warranty: | 1Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

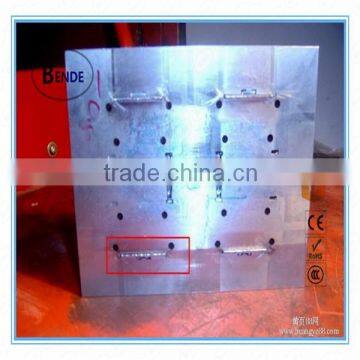

High precision fiber laser welding machine,fiber laser welding machine,steel fiber laser welding machine, series laser welder was originally designed for mould industry for molding and repairing of plastic molds, die-casting molds, extrusion molds, glass molds, plastic blow molds, rubber molds, molds of digital products/mobile phone/toy/automobile/motorcycle/etc. By applying suitable soldering wires, it is possible to fill the crack or blowholes and reuse the mold which saves production cost and improves working efficiency significantly!
BenDe Machine Factory Promise:
1:All machine 1Year guarantee!
2:After get the machine accept 7 days return the goods!
Features:
1. Mould repairing is just a typical application of this machine.This laser welding machine can not only be used for molds repairing/re-shaping, but also for the precision welding of small articles, such as jewelry, electronics, telecommunication devices, electrical hardware, watch and clocks components, products of military industry, etc.
2. Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.
3. YAG laser welder is already very mature and of cause stable to use after more than 20 years development. It is known as easy operation and easy maintenance. Based on the statistics figure of 2013,our total rework rate is only 0.5% and failure rate only 3%. For daily maintenance, you just need to change the water in the chiller tank every two weeks and do some regular cleaning work.
4. The parameters are controlled by intelligent remote controller, which is simple and convenient for the operator
5. The size of light spot can be adjusted accordingly and automatically.
Power | 200W/400W |
Laser working substance | Nd3+: YAG ceramic cavity |
Max. single-pulse energy | 70J/90J |
Max. peak power | 6kW/12kW |
Laser wavelength | 1064nm |
Focal beam diameter | 0.2-3.0mm adjustable |
Rated output power | 200W/400W |
Min welding pool | 0.3mm |
Pulsed width | 0.3-20ms adjustable |
Pulse depth | 0. 5-1.5mm |
Pulse frequency | ≤50Hz adjustable |
Electricity | 220V,50HZ,60A/380V,50HZ,80A |
Power cooling system | internal air cooling |
YAG cavity cooling | external water chiller |
Controlling system | PLC programming |
Observing system | Microscope/CCD |
Weight | 250Kg~300kg |
Materials that can be welded are extensive: titanium, aluminum, copper, zinc, gold, silver and other metal and alloy, steel and other alloy material between the welding of dissimilar metals welding,cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass,aluminum-magnesium alloy, titanium, platinum are also applicable.
BenDe Machine Factory are specializing in producing,developing and selling laser marking machine,laser welding
machine,air tapping machine,servo electric servo tapping machine etc.It is Chinese industrial laser processing
equipment pioneer ,domestic well-known marking equipment manufacturer.And,with rich experience ,we also
have obtained huge success in international market ,the mainly foreign markets are United States, Germany,
Spain, Russia, Singapore, Indonesia...more than 30 countries and regions .Till now, a lot of customers all over the
world have visited us.
In the spirit of responsibility for the customer, our company keeps tight follow-up with product quality, visits our customers periodically, adopts the suggestions from our customers, and offers the all-day, all-directional and top-grade market services.
The technical and after-sale services are listed as follows:
1. Provide free technical training, guidance and information of accessories. One-year warranty is provided. (The detailed reference will be written into the final contract.)
2. Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
3. We guarantee more than 10 years’ service life of our products with 2 years’ warranty and life maintenance.
4. 24-hour hot line: 86- 15803070574. Once receive the customer complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support.
Once receive the calling of complaints, we will respond to it within 12 hours at working time and provide solution within 48 hours. If necessary, our company will send technical staff there and provide on-site solution.
1.Durable wooden case or as per required.
2.The delivery lead time would be 7 working days after recieving the payment.
3.As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.
4:Computer & laser weld soft ware system.
Portable type equipped notebook with English system.
Desktop type equipped LCD and industrial compute, (PC the English laser welding soft ware installed).
5. We will give customer the fixed tools for helping to fixed the focus distance.
6. One-year warranty is provided. (The detailed reference will be written into the final contract.).
7: Professional staff for installation and training if needed.
