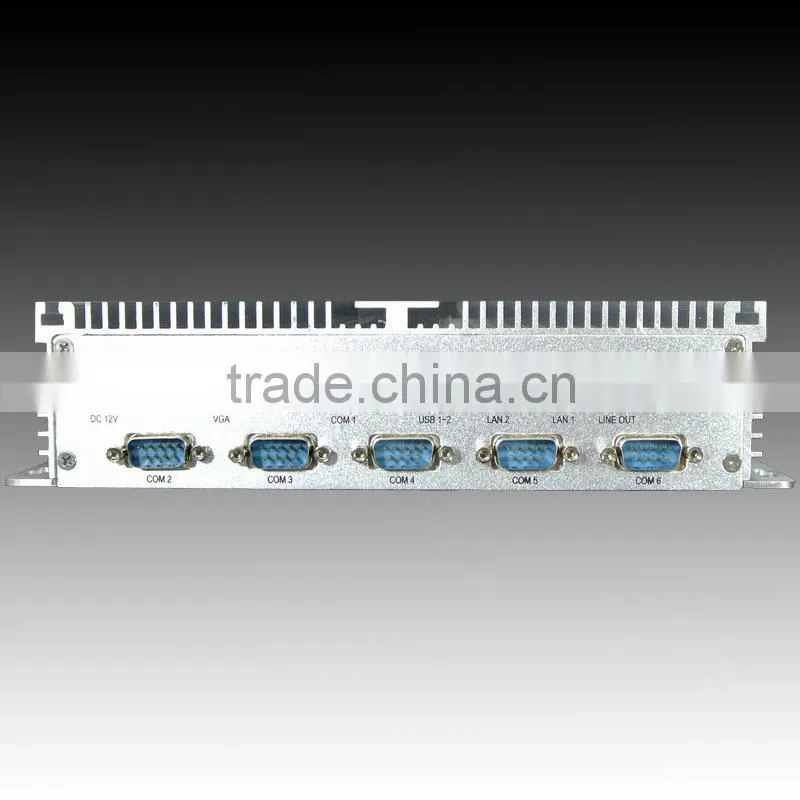

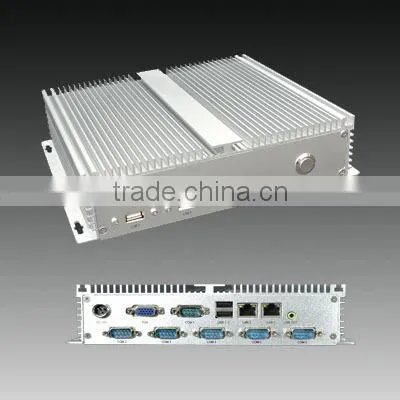

mini fanless industrial personal computer
- 3000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
Product Details
Products Status: | Stock | Type: | Embedded Computer | Brand Name: | Geshem |
Model Number: | GS525-10 | Place of Origin: | Guangdong, China |
Product Description
|
| |
Performance | Chipset | Intel ®ATOM D525 + ICH8M |
Memory | 2G memory (DDRIII), up to 4GB | |
Hardware Monitor | Monitors voltage, TEMP and CPU fan speed | |
Watchdog Timer | Programmable 256 levels timer interval, from 1 to 255 sec, setup by software | |
Storage | HDD:320GB 2.5'HDD CF :(Optional) | |
Operating System | Windows XP/ Windows 7/ Linux | |
Power Feature | Input voltage/frequency: 100~240VAC/50~60Hz (Power adapter); Input voltage/current:12VDC/5A; (No power adapter) | |
Power consumption of the PC: 15W (standby); Power consumption of the PC: 25W (operating MaxPower 100%). | ||
|
|
|

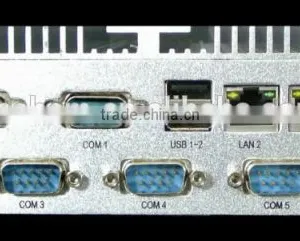

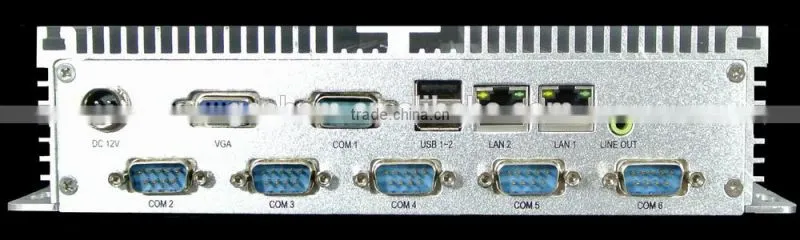

I/O Interface | USB | 4 *USB2.0 Ports |
Serial Port | 6~10*RS232 (1~2*RS485 Optional) | |
Ethernet | 2* RTL8111DL 10/100/1000Mbps RJ45 | |
Audio | 1*Line out | |
Display | 1*VGA | |
|
|
|
Environmental | Anti-vibration | 5-19Hz/1.0mm amplitude;19-200Hz/1.0g acceleration; |
Anti-shock | 10g acceleration, 11ms duration. | |
Reliability | MTBF≥50000h; MTTR≤0.5h | |
Operating Temperature | -10℃~50℃ (with air flow) | |
Storage Temperature | -20℃ ~60℃ | |
Operating Humidity | 95% @40℃, non-condensing | |
|
|
|
Mechanical | Dimensions | 235mm (L) *200mm (W) *58mm (H) |
Material | High-strength and elegant Al-alloy panel | |
Weight | 2.0kg/3.0kg(NET./GROSS.) | |
Color | Slivery/Black |
Standard export packing and Sea or Air delivery is available
Flexible delivery time can be nigotiated and on time delivery is our consistent style.
Geshem technology Co.,Ltd is the professional supplier of industrial PC such as industrialpanel pc, box pc, rugged pc and so on. With the top quality, competitive price and good services, we have established long-term business relationship with foreign customers.
Company Introduction
Geshem Technology Co., Ltd, a professional all-in-one supplier of industrial motherboard and computer, is focusing on research and development, manufacturing and marketing various size and specification of industrial computer, embedded computer, network computer, industrial panel PC, rugged computer for military application and embedded industrial motherboard.
With a research & development, marketing and ODM team over ten years of experience in industrial computer field, Geshem can realize quick, cost-effective, flexible OEM & ODM service for short-noticed market demand; With completed quality control system complying with ISO9001 and after-sale service team, Geshem is able to fulfill its quality policy from design to delivery: quality is the first and customer satisfaction is the priority. In the meantime , as a responsible corporate citizen, Geshem fully practice ISO14000 with aim to build a environment-friendly facility
Besides China, our products has been exported to oversea market including German and some other Europe countries, America, middle east, Brazil, Israel and Chile. Geshem now has successfully established its office in German for better after-sale service. We are expecting to open more offices in other counties by creating win-win situation with our customer and employees.
Geshem Tech, improve your value!
