IP16 submersible level transmitter, composed by high accuracy & stability pressure sensor, is transformed to standard 4~20mA electrical output signal separately. The unique craft seal structure has good performance of preventing leak, even this product is be immersed into liquid for a long time, still has good operation reliability. It is featured with high accuracy, good stability, long service life as well as easy installation etc.
Media | Oil or Liquid |
Type | Gauge or absolute |
Range | 0~300m |
Accuracy | 0.25%FS |
Output | 4~20mA,0~5V,1~5V,0~10V |
Power | 12~36VDC |
Working Temp. | -30~60℃ |
Environment Temp. | -40~85℃ |
Zero drift | ≤±0.05%FS℃ |
Span drift | ≤±0.05%FS℃ |
Compensation Temp. | 0~70℃ |
Overload pressure | 200%FS |
Burst pressure | 500%FS |
Response Time | ≤2ms |
Load | (Current output)250~1425Ω(Voltage output)≥2KΩ |
Sealing | IP68 |
Long time stability | 0.1%FS/Year |
Vibration | 0.1%FS |

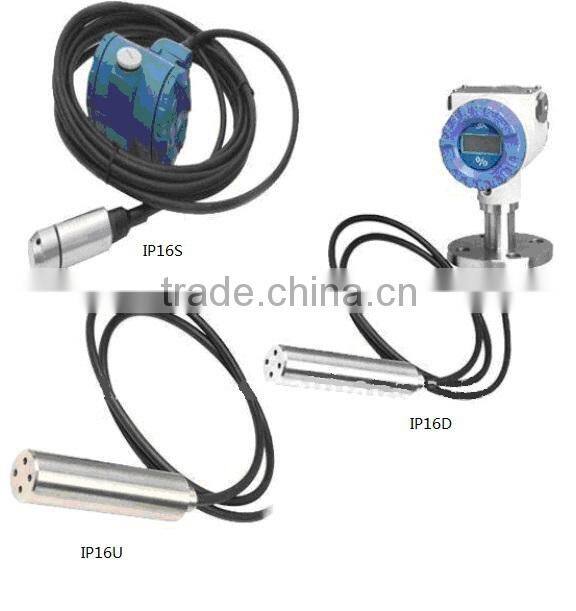

IP10U | IP16 Level Transmitter With Unit Structure | |||||
IP10S | IP16 Level Transmitter With Separate Structure | |||||
IP10D | IP16 Level Transmitter With Separate and Display Structure | |||||
| 3 | 0.5~4.5V(Three-Wire) | ||||
| 4 | 1~5V( Three-Wire ) | ||||
| 5 | 4~20mA( Two-Wire ) | ||||
| 6 | 0~5V( Three-Wire ) | ||||
| 7 | 0~10V( Three-Wire ) | ||||
| 9 | Output type according the customer request | ||||
|
| Mxxx | Xxx meter cable length | |||
|
|
|
| Mxxx | 0~xxx meter liquid level | |
|
|
|
|
| G | Gauge |
|
|
|
|
| S | Seal |
|
|
|
|
| A | Absolute |
IP16U | 5 | M005 | - | M005 | G | |
How to place an orde
1) Please let us know the following information about the pressure transmitter
Requirements | ||
NO | Technical Parameters | |
1 | Pressure range | |
2 | Output signal | |
3 | Cable length | |
4 | Quantity | |
2) We will give you a competitive price and make invoice for you
3) After you payment, we will start to produce them for you.
4) We will ship goods by DHL,UPS ,Fedex.... If you have special require, please let me know
All products are warranted to change new one for fault for our product quality for one (1) year from the date of purchase from an authorized dealer of Basis products.
