Ruian Hongyin Automatic plastic machine for produce egg tray/boxes/container/fast-food boxes/lids(HY-510580)
- 5 Set / Sets per Month
- NingBo
- T/T
You May Like
-
2015 Ruian Hongyin Factory New Automatic Thermoforming Machine
-
High Quality Plastic Cup/Bowl/Box/Tray/Lid Forming Machine (HY-660)
-
Plastic Disposable Cups/Bowls/Trays Making Machine (HY-660)
-
Cam drive systerm disposable plastic cup molding machine (HY-660)
-
disposable cup and plates machine disposable plastic cup molding machine thermoforming machine(HY-660)
-
disposable plastic plates and cups making machine (HY-660)
Product Details
| Product Type | Other, Plastic tray,lid,container ect, Plastic Tray,Fast Food Box,Tray,Lid | |||
| Place of Origin | Zhejiang, China | Brand Name | HongYin, HongYin | |
| Model Number | HY-510580 | Voltage | 380V 50/60HZ | |
| Power(W) | 23kw | Dimension(L*W*H) | 2750*1410*2350mm, 2750*1410*2350mm | |
| Weight | 2500kg | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
I. Introduction With The Machine
HY-510580 plastic thermoforming machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by a micro PLC, which can be operated in man-interface. It combines the material sending, heating, forming and cutting info one process. It has three operation models. " manual", " semi-automatic" and "automatic, so it is a new generation ideal package equipment telecommuting and memory reserve functions.
II. Application Area:
It is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.
III.Main Parameter
The parameter of forming machine
| 1.Forming area | 510×580mm |
| 2. Forming depth | 100mm |
| 3.Sheet thickness range | 0.15-1mm |
| 4.Sheet roller diameter | 710mm |
| 5.Cutting length | 6350mm |
| 6. Air pressure | 0.7Mpa |
| 7.Water consumption | 10 Liters/min(15-20) |
| 8. Air consumption | 2200 Liters/min |
| 9.Production Speed | 600-1200 recyles/hr. |
| 10. Voltage | AC380V±15V,50HZ |
| 11.Preheating power | 4kw |
| 12. Mould plate heating power | 6kw |
| 13.Heating plate power | 15kw |
| 14 Usable material | BOPS,HIPS,PS,PVC,PET |
| 15 Weight | 2500kg |
| 16 Dimensions (L ×W×H)mm | 2750×1410×2350 |
IV. Machine Picture

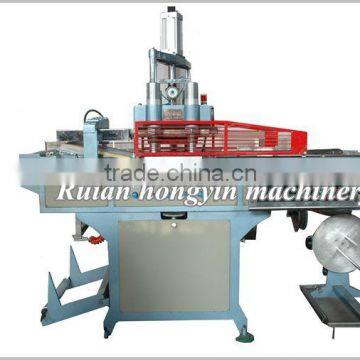

1. HY-510580 The host figure of plastic thermoforming machine
2.HY-510580 plastic thermoforming machine workshop.
3. Complete production line for plastic forming machine
4. HY-510580 thermoforming machine products samples
About the wooden packing of plastic forming machine .
above this part need 20 feet container to packaging.
Machine model | Dimension(m) | Packing dimension(m) | NW(KG) | GW(KG) |
HY-510/580 | 2.75×1.41×2.35 | 3×1.4×1.9 | 2500 | 2700 |
About HongYin company service
Hongyin factory founded in 1985, Ruian Hongyin Machinery Factory is a manufacturer of plastic production and processing machinery.
Our factory currently covers an area of 8, 000 square meters of land, 5, 000 square meters of which are utilized by workshops.
The products we have done:
Automatic plastic BOPS thermoforming machine, semi-automatic plastic forming machine, plastic vacuum forming machine, In line cutting machine, cup forming machine,sheet extruder, three sides folding machine, sealing machine, cooling tower packing forming machine, laminating machine, EPE foamed film production line, etc.
Export market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe.
Welcome to vist our products, if you are interested in which machine please feel free and contact us .
Contact information:
Contacter:Mr Michael
Skype:michaelrao3
Phone:+86 15158704325
