JLS-10 Current&Voltage Combined Transformer Metering Box CT&PT Transformer
- 50 Set / Sets per Month
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
LZZBJ9-10 LZZBJ9-12 Current Transformer
-
LZZBJ10-10Q Current Transformer 11kv current transformer 12kv current transformer
-
JSJW-3 3KV Outdoor Voltage Trasformer Potential Transformer
-
JSJW-10 3KV 6KV 10KV Outdoor Voltage Trasformer Potential Transformer
-
JDJ(J)2-35, JD(X)N2-35 35kv 40.5kv Voltage Transformer Outdoor Voltage Trasformer Potential Transformer
-
JDJ 3KV 6KV 10KV Voltage Transformer Outdoor Voltage Trasformer Potential Transformer
Product Details
| Place of Origin | China | Brand Name | HOSSIN | |
| Model Number | JLS-10 |
Product Description

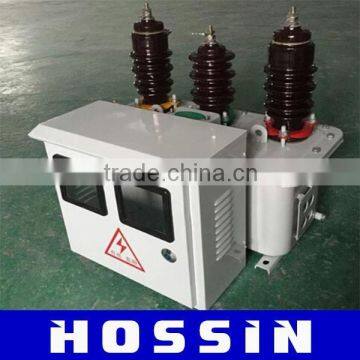

JLSV-10 Current&Voltage Combined Transformer Metering Box CT&PT Transformer
The product mainly consists two parts, combined transformer and watt-hour meter
tank. The former is made up of two or three single-phase voltage transformer and
current transformer, which adopts 25# mutual inductor oil as insulating medium and
whose primary and secondary line ends are both installed on the panel by porcelain
bushing. Watt-hour meter tank is fixed on the side of combined transformer and
comprises one active watt-hour meter and reactive watt-hour meter, which has highprecision
measurement, light weight, convenient install-stion and electricity theft
resistance.
The power measuring tank is applicable to three-phase system net with rated
voltage of 6, 10, 35kV and rated frequency of 50Hz.
JLS-10
J: voltage transformer
L: current transformer
S: three phase, oil-immersed type
10: rated voltage
The product function is in accordance with GB17201-2006;
Rated Voltage: 6kV, 10kV, 35kV;
Accurate Grade: 0.5 and 0.2; 0.5S and 0.2S
Rated Ratio: Ratio-voltage 6000/100; 10000/100; 35000/100
Ratio-current 5~300/5 (high ratio-current can made to order)
