Help CenterBIG DISCOUNT!! Electric/hydraulic Stainless Steel Reel Winch / Capstan for Sale
Related Products
Specifications
1.High Efficiency2.Low Energy Consumption
3.Low Noise
4.Beautiful Form
5.Compact Structure

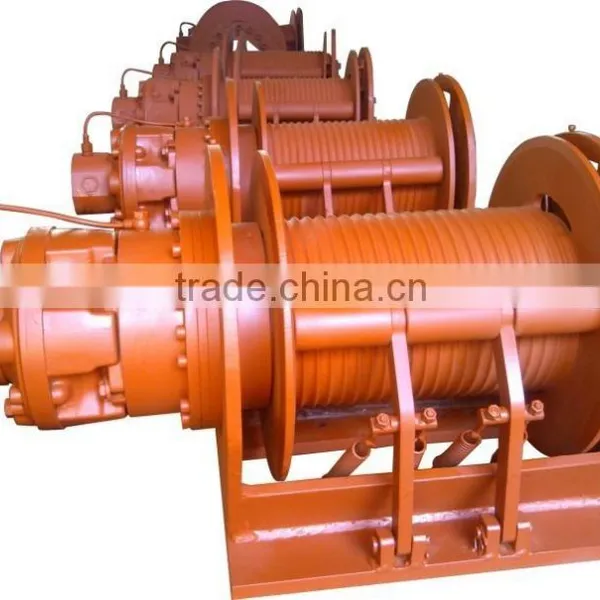

Sinma hydraulic winch is composed of oil distributor, SM hydraulic motor, Z brake, C reducer, reel and stand.
The oil distributor includes one-way balance valve, brake and high pressure shuttle valve.
SM winch has its own valve group, so that it makes hydraulic system more simple and increases stability of the transmission device. The hydraulic valve group of SM winch solves the problem of empty hook vibrating and fall again during hoisting. So SM winch can lift and put down stably. When starting and working, SM winch is high efficiency, low energy consumption, low noise and beautiful form.
Specifications:
1) Drive: hydraulic
2) Force: 5kn-550kn acceptable according to your request
3) Rope speed: 10-500m acceptable according to your request
4) Brake: automatic hydraulic brake
5) Paint: as per your specifications
Hydraulic Winch List (Partial)
XHJ2.5/3/4/5/6/7 Hydraulic Winch | ||||||||||
| Model | First layer | Reel bottom diamete (mm) | Total displacement (ml/r) | Difference of working pressure (Mpa) | Diameter of steel cable (mm) | Steel cable capacity (m) | Model of hydraulic motor | Model of planetary reducer | Weight (kg) | |
| Pull force(KN) | Rope speed(m/min) | |||||||||
| XHJ2.5-10-60-10-ZP | 10 | 0-25 | 238 | 610 | 15.1 | 10 | 60 | XHM2-110D51 | C2.5-5.5 | 120 |
| XHJ2.5-20-50-12-ZP | 20 | 0-25 | 238 | 1442 | 14 | 12 | 50 | XHM2-200D51 | C2.5-7 | 120 |
| XHJ3-30-66-15-ZP | 30 | 0-35 | 305 | 2455 | 14.4 | 15 | 66 | XHM6-500D120101 | C3-7 | 300 |
| XHJ3-40-64-16-ZP | 40 | 0-35 | 305 | 3267 | 14.6 | 16 | 64 | XHM6-600D120101 | C3-5.5 | 300 |
| XHJ4-50-87-20-ZP | 50 | 0-40 | 380 | 4961 | 13.6 | 20 | 87 | XHM11-1000D480101 | C4-5 | 685 |
| XHJ4-60-68-21.5-ZP | 60 | 0-40 | 380 | 6138 | 14.2 | 21.5 | 68 | XHM11-1100D480101 | C4-5.5 | 685 |
| XHJ5-80-103-24-ZP | 80 | 0-40 | 470 | 9983 | 14.5 | 24 | 103 | XHM16-1800D480101 | C5-5.5 | 1200 |
| XHJ5-100-90-28-ZP | 100 | 0-40 | 470 | 14113 | 13 | 28 | 90 | XHM16-2500D480101 | C5-5.5 | 1200 |
| XHJ6-120-176-30-ZP | 120 | 0-30 | 600 | 16714 | 17 | 30 | 176 | XHM31-3000D480101 | C6-5.5 | 2300 |
| XHJ6-150-153-34-ZP | 150 | 0-30 | 600 | 19904 | 18 | 34 | 153 | XHM31-3500D480101 | C6-5.5 | 2300 |
| XHJ7-180-143-38-ZP | 180 | 0-30 | 640 | 24140 | 16 | 38 | 143 | XHM31-5000D480101 | C7-5 | 2600 |
