5.2meutectic Refrigeration System Reefer Truck Body for Iveco ML 100E18 Chassis Ice Cream Container Mini Ice Cream Truck Most Popular

5.2meutectic Refrigeration System Reefer Truck Body for Iveco ML 100E18 Chassis Ice Cream Container Mini Ice Cream Truck Most Popular photo-1
5.2meutectic Refrigeration System Reefer Truck Body for Iveco ML 100E18 Chassis Ice Cream Container Mini Ice Cream Truck Most Popular photo-2
5.2meutectic Refrigeration System Reefer Truck Body for Iveco ML 100E18 Chassis Ice Cream Container Mini Ice Cream Truck Most Popular photo-3
5.2meutectic Refrigeration System Reefer Truck Body for Iveco ML 100E18 Chassis Ice Cream Container Mini Ice Cream Truck Most Popular photo-4
5.2meutectic Refrigeration System Reefer Truck Body for Iveco ML 100E18 Chassis Ice Cream Container Mini Ice Cream Truck Most Popular photo-5
5.2meutectic Refrigeration System Reefer Truck Body for Iveco ML 100E18 Chassis Ice Cream Container Mini Ice Cream Truck Most Popular photo-6
US$ 9,100 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
COLDKING
Model:
AJC5200IC2
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name COLDKING
Model AJC5200IC2
Place of Origin China
Transmission Type Manual
Condition New
Horsepower 150 - 250hp
Emission Standard Euro 4
Fuel Type Diesel
Dimensions (L x W x H) (mm) 8700mm(L) x 2300mm(W) x 2800mm(H)
Box Dimensions (L x W x H) (mm) 5200mm(L) x 2200mm(W) x 1700mm(H)
Temperature Range -25C to -40C, -40C To -25C
Gross Vehicle Weight 10000
Truck Body Details

Ice Cream Truck Body

Key Features

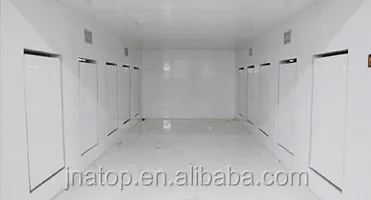

ColdKing ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Truck Body Outer Size
5.2m(L)x2.2m(W)x1.7m(H)

Truck Body Inner Size

4.95m(L)x1.95m(W)x1.45m(H)
Roof/Floor Panel
125mm Thickness
Side Wall Panel
125mm Thickness
Front Wall Panel
125mm Thickness
Rear Door Panel
125mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP

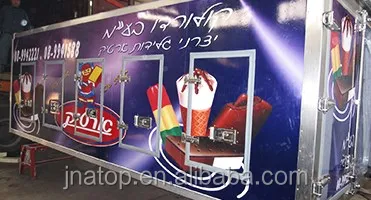

Side Door Quantity
10 (Ten) Sets
Side Door Location
5 Sets On Left/5 Sets On Right
Side Door Type
Single Opening
Side Door Size
580mm(W) x 900mm(H)
Rear Door Type
Full Size Double Opening Rear Door, Right Hnad Rear Door Open First
Truck Body Flooring
Reinforced Floor Covered With Removable PVC Grating mini ice cream truck body
Cargo Control System
None, Optional Ice Cream Truck Body
Ceiling Light mini ice cream truck body
4 (Four) Sets of 12/24V Multi-Voltage LED
Marker Light mini ice cream truck body
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch mini ice cream truck body
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain
mini ice cream truck body
European Standard -40C PVC Strip Curtain System For Side & Rear Doors
Refrigeration Unit
Service Ladder
None/Optional
mini ice cream truck body
Refrigeration Unit
Service Platform
None/Optional
mini ice cream truck body

Quality Insulation Performance

125mm Thickness All-Closed Sandwich Structure Panels Provides Quality Insulation Performance To Meat -40C Working Temperature

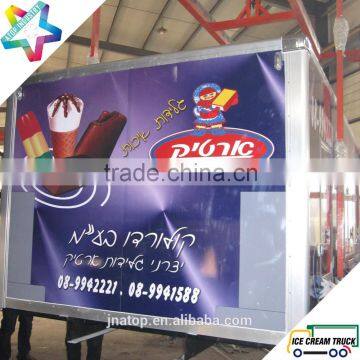

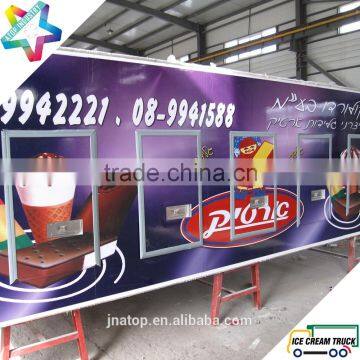

Customized Advertising Sticker

Advertising Sticker Service As Per Customer's Design

Double Opening Rear Door Assembly

Full Size Double Opening Rear Door Assembly With Full Sets of Stainless Steel Lock Sets & Hinges, Sealed By Low Temperature High Quality Door Gasket

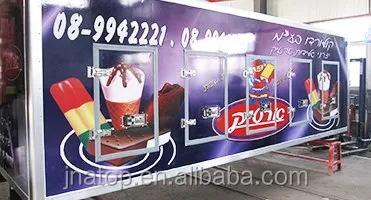

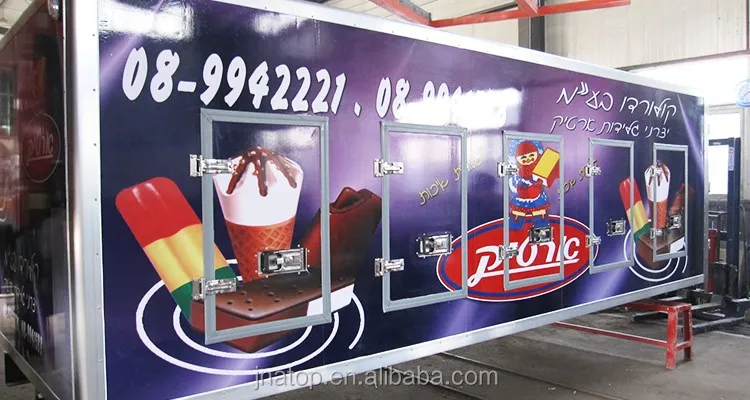

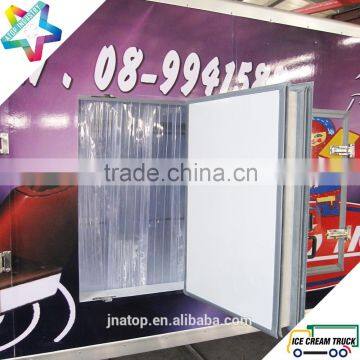

Cargo Delivery Side Door Assembly

Customized Size Side Door Assembly With Full Sets of Stainless Steel Lock Sets & Hinges, Sealed By Low Temperature High Quality Door Gasket

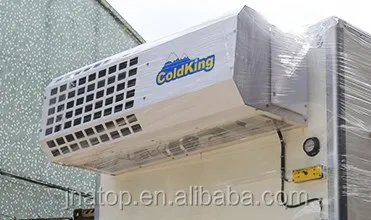

Kooltube Unit

Key Features mini ice cream truck

ColdKing Kooltube is a holdover or latent heat storage system. It is one of the simplest refrigeration systems and has been around in its basic configuration for many years. Simply, it can be compared to a block of ice in a glass of water or to the freezer pack, which you freeze in your fridge at home and put into a cooler box to keep your drinks cold.The eutectic beams perform the same function as the block of ice or freezer pack while the condenser replaces your domestic fridge. The system is plugged into an electrical supply until the tubes are properly frozen, unplugged and then the vehicle used for its delivery round.
Refrigeration Unit Model
KT450-14N
Refrigeration Unit Brand
ColdKing
Refrigeration Unit Type
AC Power Driven Eutectic Solution, Condenser Split mini ice cream truck body
Refrigeration Capacity
3,755W (@ -40C)
5,065W (@ -35C)
8,535W (@ -25C)
Total Refigeration Heat Exchange Rate
14,490Kcal/h mini ice cream truck body
Refrigerant
HFC R404a
Defrost
Manual Warm Water
Condenser Mounted Method
Under Chassis
Kooltube Beams Assembly
4.50m(L) x 14 Pcs
Compressor Brand & Power
Bitzer 5.0Hp
Expansion Valve
Danfoss
Condenser Fan
EBM
Thermometer
REFCO
Power Supply Voltage/Phase/Frequency
380V/3Ph/50Hz 220V/3Ph/60Hz ice cream truck body

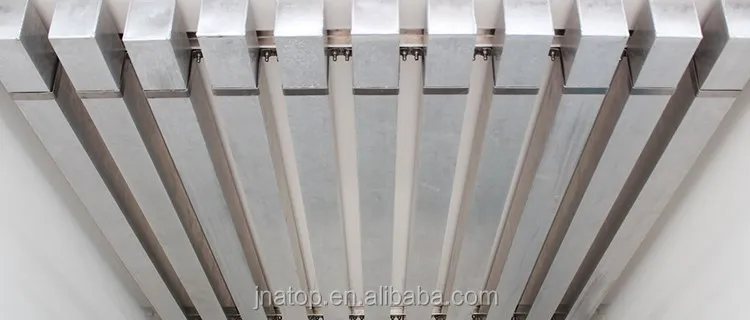

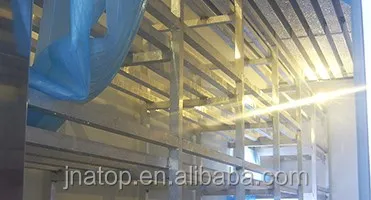

4,500mm(L)  x 14 pieces Kooltube Beams mini ice cream truck body

The Kooltube beam is extruded aluminum containing a non-toxic eutectic solution. A wide range of solutions is available for various temperature applications. ice cream truck body ice cream cold plate

Bitzer Compressor mini ice cream truck body

Germany brand BITZER compact semi-Hermetic reciprocating compressors boast an efficient suction gas–cooled motor, high-quality valve plates, wear-resistant drive gears and adjustable capacity control. This gives the BITZER compressor, which can also be used at very low condensing temperatures, a beneficial seasonal energy efficiency beyond comparison. mini ice cream truck body ice ceam container ice cream cold plate mini ice cream truck body ice ceam container ice cream cold plate

Quality Components mini ice cream truck

Quality components from EBM Fans, Danfoss Expansion Valve, Schneider Electric Control, etc.  mini ice cream truck  reefer truck body  mini ice cream truck body ice ceam container ice cream cold plate mini ice cream truck reefer truck body mini ice cream truck body ice ceam container ice cream cold plate mini ice cream truck reefer truck body mini ice cream truck body ice ceam container ice cream cold plate mini ice cream truck reefer truck body

Optional Items

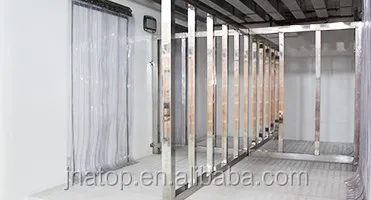

Internal Dividers

Internal Dividers In Stainless Steel To Divide 4 (Four) Cargo Space For Rapid & Efficient Loading & Delivery.

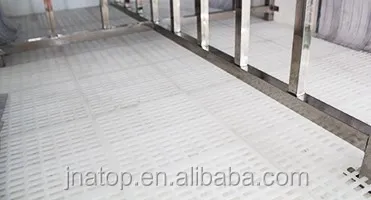

Removable PVC Grating

Removable PVC Grating Is Good At Prevent Cargo Packages From Condensing Water Damage

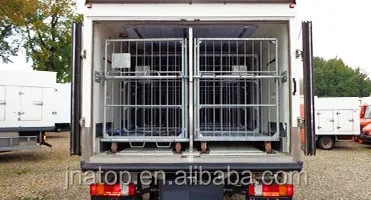

Roll Carts Ice Cream Truck Body

Roll carts for rapid and efficient loading, delivery and unloading goods mini ice cream truck body

Cargo Versatile Shelving

Offers a wide variety of cargo shelving from stainless steel to aluminum alloy mini ice cream truck body

Hydraulic Tail Lift

Aluminium Alloy/Steel Platform Hydraulic Tail Lift Are Available

Cargo Control System

Smart & customized cargo Loading control system

Products Show

2.7m Ice Cream Truck Body

2.7m ice cream truck body fitted on Hyundai H100 truck chassis  mini ice cream truck body

2.4m Ice Cream Pickup Truck

2.4m (L) x 1.8m(W) x 1.5m(H) ice cream pickup body fitted on Toyota Hilux pickup chassis ice cream truck body

4.8m Ice Cream Truck Body

4.8m ice cream truck body fitted on Isuzu NPR truck chassis mini ice cream truck body

Packing & Delivery
Professional Packing & Loading For Different Transportation Method mini ice cream truck body

Export Truck Fleet In Seaport mini ice cream truck body

Large Order Quantity Queue Up Delivery  mini ice cream truck body
