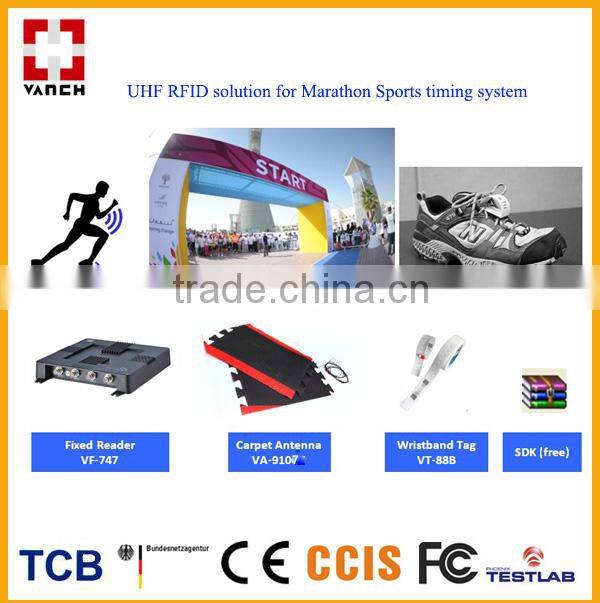

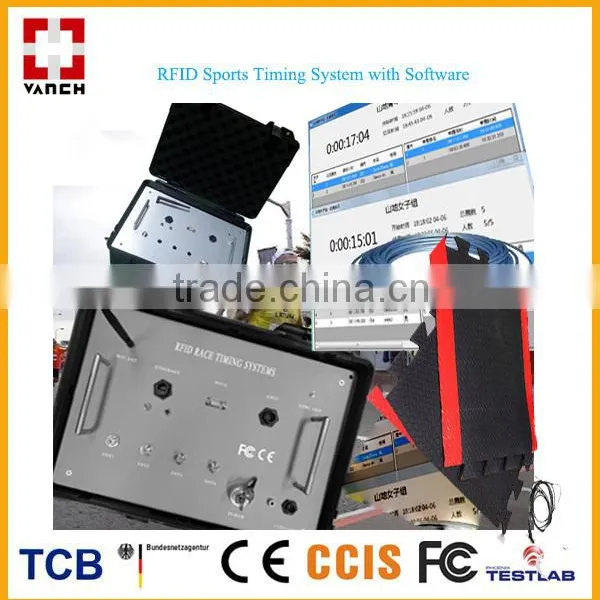

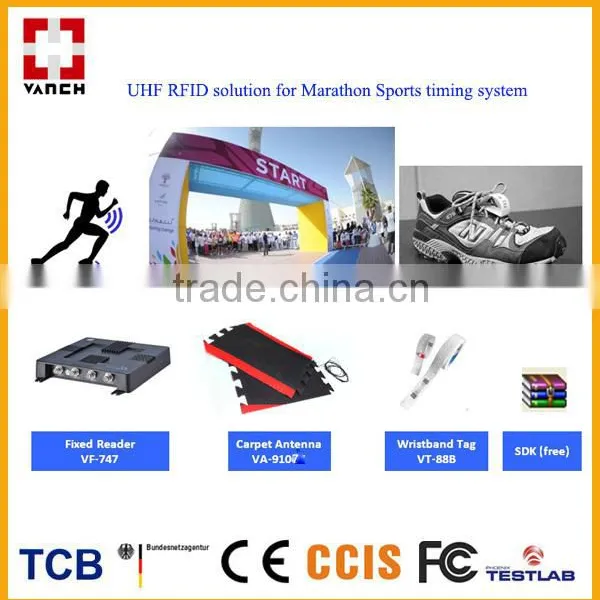

rfid marathon timing system
1. customized frequency available
2. With CE/FCC certificates
3. good design antenna UHF RFID reader
Specification | |

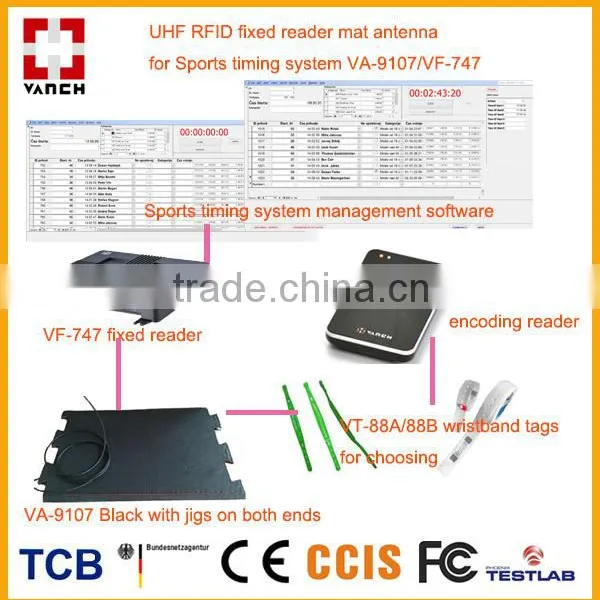

Model | VF-747 |
| |
Performance Index | |
Frequency range | 860-868MHZ,902-928MHZ(can be customized) |
Frequency modulation | FHSS or fixed-frequency, can be set by software |
RF output | +10.0 to +32.5 dBm;50 ohm load. |
The number of antennas | 1 SMA antenna connector; 2 SMA antenna connector; 4 SMA antenna connectors for selections |
Communication interface | 10M/100MAdaptive Ethernet,RS232,RS485,Wiegand26/34 interface |
Communication rate | Serial rate 9600~115200bps,RJ45 is 10Mbps |
Secure firmware upgrade | The upgrade mechanism can be extended |
input / output (GPIO) | 2 inputs, 1 output |
Certifications | CE/FCC |
Application software | Supply API SDK and VC and VB, Delphi application routines |
Tag Operation Performance | |
Reading distance | 8dbiAntenna configuration, typical read range: 3 to 25 m (depends on tag) |
Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B |
Maximum receiver sensitivity | -82 dBm;Maximum return loss: 10 DBm |
Mechanical electrical performance | |
Dimension | 200 (L) * 200 (W) * 35 (H) mm |
Power | With 220V AC input, the output of +12 V/3A DC power converter |
Weight | 1.1KG |
Humidity | 5% to 95%, Non-condensing |
IP rating | IEC IP51 |
Operating Temp. | -20 ºC to +60 ºC |
Storage Temp. | -40°C to 80°C |

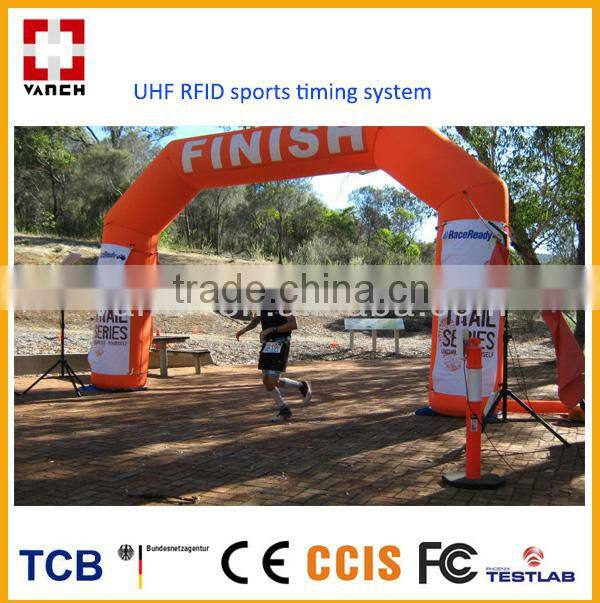

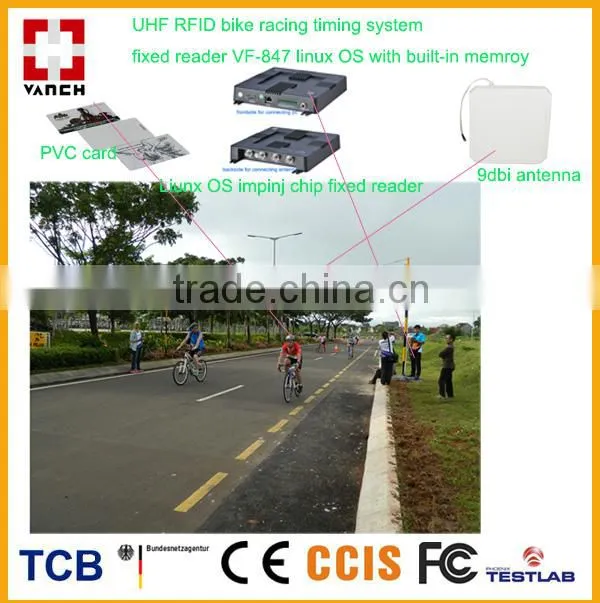

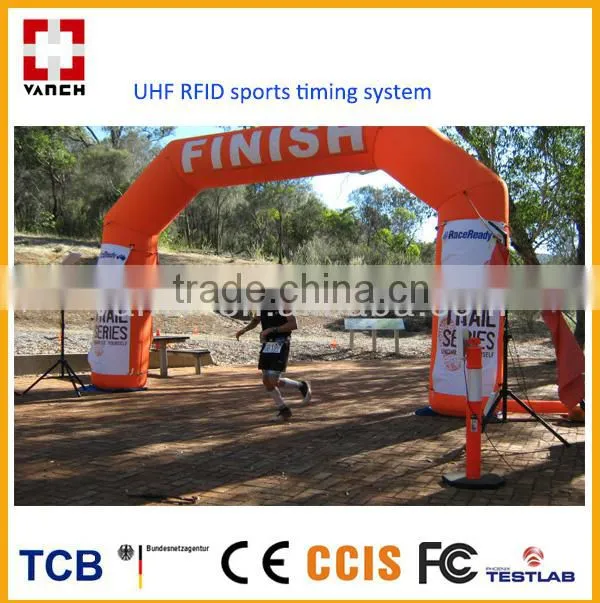

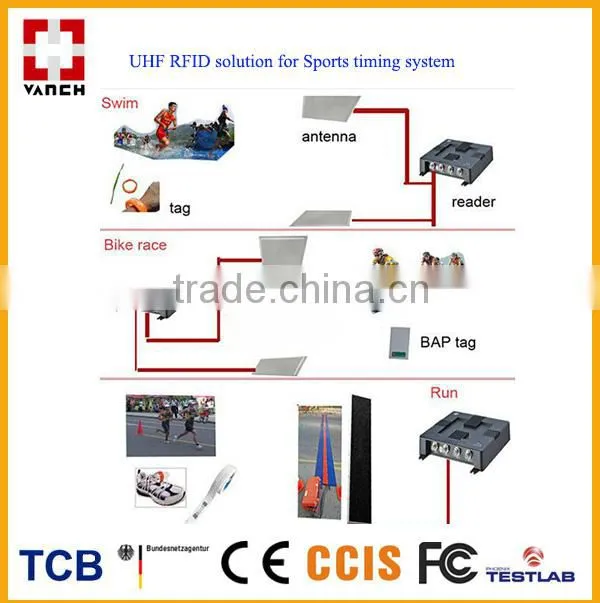

Sports timing system for marathon, bicycle, running, swimming etc etc.
- We accept Paypal, T/T , Western Union as payment method.
- We will be happy to Combine shipping for more than 1 item ship to the same address
- Please make the payment in 3-5 days after you place the order to arrange the production.
- We make sure all of items are 100% in good status before shipment
- The product have one year warranty from the buying date. It's ok to send back the product for repairing during the warranty.

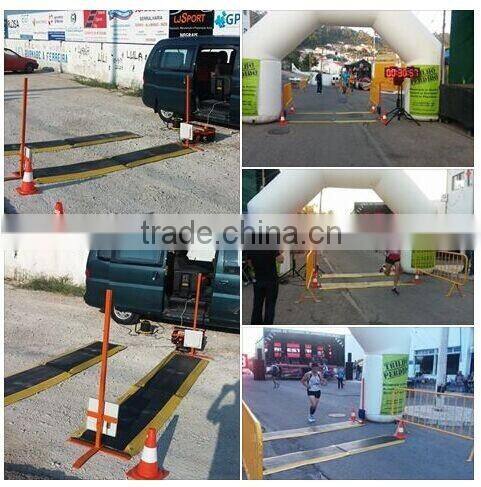

Not only for this, we did some other related projects as well, pls check the project pictures.
Welcome to contact me at mail beata at if you have any interest!
** Vanch Intelligent Technology Co.,Ltd. was established in 2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.
** As High-tech enterprise and software development &Design company, Vanch has a number of patents and copyright of software and hardware. RFID products passed CE certification and FCC, sold very well in Europe and America market.
** VANCH is membership of RFID Enterprise Alliance, RFID Standards Association and Internet of Things Association.
If you want to know more details, please kindly contact me as the following:
