Product Details
| Type | Parking Lift | Height (mm) | 306 | |
| Width (mm) | 306 | Place of Origin | Guangdong, China | |
| Brand Name | VANCH | Model Number | VI-86F | |
| Warranty | 1 Years |
Product Description
rfid reader hang tags for car parking Sensor System
RFID Reader VI-86F
Application
logistics, access control, ETC, electronic security, manufacturing automation and etc.
Features
Reliable industry structure design, workable in varied severe environment.
Specification
Performance Index |
| |
Frequency range | 902-928MHZ/865-868MHZ(or customized) |
|
FM mode | FHSS or fixed frequency, set by the software |
|
Reader chip | Impinj R2000 indy | |
RF output | 30dBm adjustable |
|
Communication interface | TCP/IP,RS232,RS485,Wiegand26/34 |
|
Communication rate | Serial port 9600~115200bps,RJ45 10Mbps |
|
GP I/O interface | 12 pin + 4 pin |
|
Power dissipation | average<15W |
|
Application software | Provide with API SDK and VC, VB, Java application routines |
|
Tag Operation Performance |
| |
Reading distance | 5-30m equipped with 12dbi antenna(tag dependent) |
|
Air interface | EPC global UHF ISO-18000-6C(EPC G2),ISO-18000-6B |
|
Mechanical and Electrical Performance |
| |
Dimension | 445(L)*445 (W)*70(H)mm |
|
Power supply | Equipped with power convertor 220V AC input, +9V/3A DC output |
|
Weight | 2KG |
|
Humidity | 5% to 95%, non-condensing |
|
Protection grade | IEC IP65 |
|
Operation temperature | -20 ºC to +60 ºC |
|
Storage temperature | -40°C to 80°C |
|
Project case

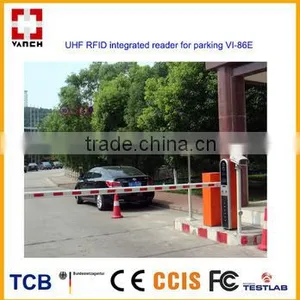

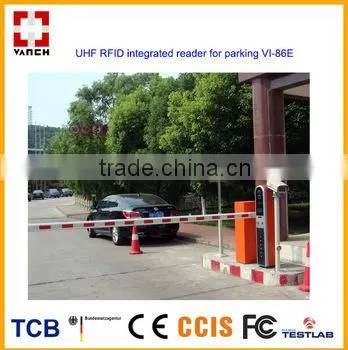

Underground Parking lot System
