HF100Y gold drilling equipment
- 100 Set / Sets per Month
- Shanghai Tianjin Qingdao port
-
Hot Sale! Max 600m Depth! HF-3 Hydraulic concrete core drilling machine
-
KT5000 Type Fully Hydraulic Power Unit radial drilling machine
-
Welcomed!!! Sampling Type HF30A manual drilling equipment
-
Max 600M! HFT-3 Truck Mounted Water Well Drilling Equipment
-
Max 600M! HFT-3 Truck Mounted Core Drilling Machine
-
HF100Y auger drilling equipment
Product Details
| Condition: | New | Type: | Other, DTH | Power Type: | Diesel |
| Place of Origin: | Henan, China | Brand Name: | HF | Model Number: | HF-100Y |
| Usage: | Water Well | Voltage: | 220V/380V | Dimension(L*W*H): | 4100mm*2030mm*2020mm |
| Weight: | 2600KG | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
gold drilling equipment1. Max depth:40m
2. diameter:90-130mm
3. crawler type
gold drilling equipment

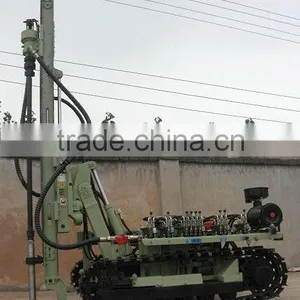

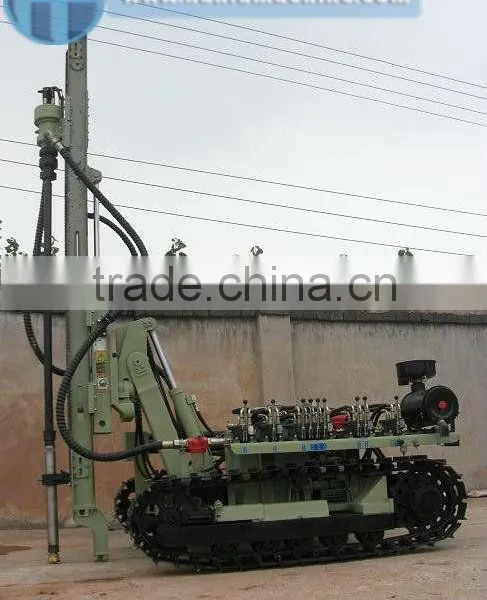

HF-100Y DTH Crawler Drilling Rig
HF-100Y Crawler drilling rig improved the lifting mechanism, running gear, and the entire system life and reliability of hydraulic components , thereby greatly reducing the customer's use of cost. The drilling rig compact structure, climbing ability, simple operation, sliding shelf with telescopic compensation function to ensure the stability of the drilling operations.
This product is mainly suitable for open mining, water conservancy, power plants, road building and other Rock blasting whole drilling.
Main technical parameters
Total Weight (kg) | 2600 |
Drilling diameter (mm) | 90---130 |
Dimension (L * W * H)(mm) | 4100*2030*2020 |
Drilling depth (m) | 30 (max:40) |
Travelling speed (km/h) | 2 |
Once promotion distance (mm) | 2000 |
Grade ability (°) | 30 |
Working pressure (Mpa) | 0.7---1.0 |
Chassis ground clearance (mm) | 260 |
Air consumption (m³/min) | 7---15 |
Skid pitch (°) | up and down total 100 |
Host Power (Kw) | 18.6 |
Sliding tilt swing (°) | Left 35, right 10 |
For rock (f) | 6----20 |
Skid compensation (mm) | 900 |
Impact frequency (r/min) | 840 |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation. | |
