Huawei UA5000 C8-B2LIM2

Specifications

1, Huawei ua5000 C8-B2LIM2

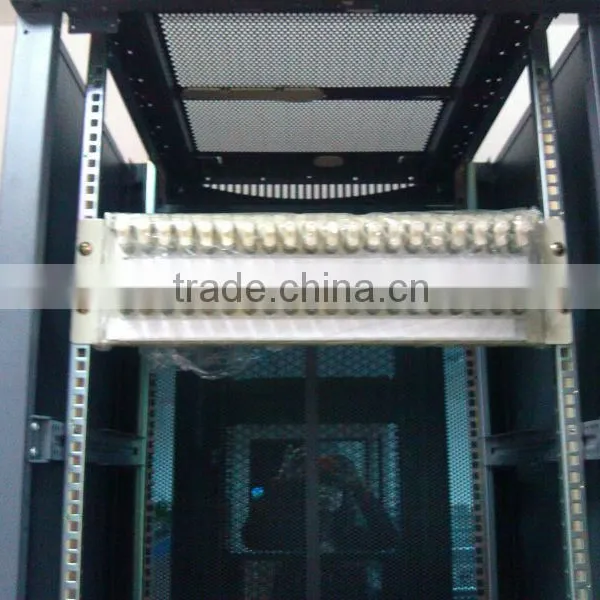

2, Interface Rack 2

UA5000 Multi-Service Access   C8-B2LIM2





With the increasing demands on telecommunication services, including data, video, voice, and multimedia services, large-capacity access networks that provide high-speed, high-quality integrated services have become the focus of access network development. To address the tendency toward this type of access network, Huawei HONET UA5000 multi-service access product integrates traditional voice, VoIP, private line, PBX, video, and multimedia services for subscribers. It provides GE, FE, E1, GPON, and EPON network ports for transmitting services upstream. Huawei HONET UA5000 can be used in scenarios such as integrated access, broadband access, and enterprise access.

Features



Smooth Evolution

By supporting V5, H.248, and Session Initiation Protocol (SIP), the UA5000 is adaptable to PSTN, NGN, and IMS networks and can also be used in gigabit and Ethernet passive optical networks.

Traditional Services Retained

The UA5000 provides all service ports required for a traditional network (including the POTS, ISDN BRA/PRA, E1, TDM G.SHDSL, V.24/V.35, E&M, FXO/FXS, R2, and two/four-wire audio ports). As a result, all traditional services are retained when evolving from a TDM network to an IP network, and subscribers do not have to change terminals.

The UA5000 supports various traditional private services on a TDM/PSTN network – as well as IP semi-permanent connection (SPC) and pseudo wire emulation edge-to-edge (PWE3) features – on an all IP-based network. This ensures that the UA5000 supports all traditional private services on PSTN, NGN, IMS, and FTTx networks without affecting services during network evolution.

The UA5000 provides a 32-port combo board that has the functions of the POTS, ADSL2+ and SPL boards. The UA5000 with a combo board requires less distribution cables and main distribution frames (MDF), which translates into less time on wire seating and easier operation and maintenance. High-Speed Broadband Access

The UA5000 supports: 1) the ADSL2+ and VDSL2 technologies to achieve a maximum transmission rate of 100Mbit/s to the desktop; 2) EFM G.SHDSL 4-wire bonding technology to meet enterprise user requirements for high-speed service access; 3) Internet Group Management Protocol Versions 2 and 3 (IGMPv2 and v3) to provide MVLAN and IPTV services, which have become new sources of revenue for operators.

Energy-Saving

The UA5000 is the first multi-service access device in the world to meet the European Union's CoC energy-saving requirements.

With an optimized design and low power consumption components, on average, UA5000 combo and ADSL service boards consume 10% less power than the similar boards, and 64-port POTS boards consume 20% less power than the industry-standard 32-port POTS board.

In addition, the UA5000 uses intelligent fan speed adjustment technology, which reduces fan power consumption more than 50%.

Flexible Installation

The UA5000 provides indoor and outdoor cabinets to meet operators' requirements for flexible deployment and rapid installation.

Applications & Benefits

For eight consecutive years, Huawei has been ranked number one in the global market for its multi-service access node (MSAN) solution.

The superior networking and terminal interconnection performance of the UA5000 ensures system maturity and service stability, which in turn improves network deployment efficiency.

Thanks to its ability to retain all traditional TDM services and powerful service functions, the UA5000 is the best choice for PSTN network reconstruction.

Furthermore, it enables smooth network evolution and ensures investment gains. UA5000 broadband services help Huawei's customers broaden their revenue sources.

UA5000 professional network cutover solution and line operation & maintenance solution help operators implement network evolution more efficiently, helps enhance network reliability, and reduce operation and maintenance costs.







Boards

Abbreviated Name	Full Name	Functions
PVM	Packet voice processing board	The PVM board is also called the narrowband control board of the master shelf. The PVM board supports the following functions: l   Controls the narrowband service boards. l   Converts the TDM voice traffic into IP packets. l   Supports the H.248/SIP protocol. l   Provides one FE port for transmitting the IP-based voice service. l   Supports the V5 interface to provide the V5 voice service. The PVMB board can provide four E1 ports. The PVMD backplane provides four E1 ports, and the panel of the PVMD board provides one GE optical port and one FE optical/electrical port.
A32	Analog service board	The A32 board provides 32 POTS ports.
A64	Analog service board	The A64 board provides 64 POTS ports.
ASL	Analog service board	The ASL board provides 16 POTS ports.
CDI	Direct-dialing- in subscriber interface board	The CDI board provides 16 DDI ports, through which the analog service is transparently transmitted.
DSLD	Digital service board	The DSLD board provides 16 ISDN BRI ports.
EDTB	E1 trunk board	The EDTB board provides 16 E1 trunk ports.
SDLE	TDM G.SHDSL board	The SDLE board provides eight TDM G.SHDSL ports and eight E1 ports.
SRX	Sub-rate board	The SRX board provides five V.24 synchronous sub-rate ports or three V.24 asynchronous sub-rate ports.
HSL	High-speed synchronous line interface board	The HSL board provides two V.35 ports and two FE1 ports, each with the rate of N x 64 kbit/s (1≤N≤31).
VFB	Audio frequency interface board	The VFB board provides sixteen 2-wire audio frequency ports or eight 4-wire audio frequency ports
ESC	Environment monitoring board	The ESC monitors the power supply, temperature, humidity, door status, fan, battery, and other analog and digital parameters, and also reports the monitored information to the control board through the serial port.
PWX	Secondary power supply board	One PWX board occupies one slot. One master shelf can be equipped with two PWX boards. The PWX board supports inter-board and inter-shelf load-sharing and mutual aid function.
VMS	Message LED analog service board	The VMS provides 16 analog service ports.
ATI	Analog trunk interface board	The ATI board provides six channels for the access and transparent transmission of E&M audio frequency signals.
SCS board	Sub-rate centralized cross board	The SCS board provides the sub-rate centralized cross function.
