MACHINE FUNCTION

LB023-152 Combined Raw Wool Washing Machine is guided for opening and scouring the grease wool to remove weeds crumbs, sandy, soil, impurities and grease retained wool.



ALL PARTS OF COMBINED MACHINE

1. B031-122 FEEDER                       1SET

2. B044-100 THREE DRUMS OPENER        1SET

3. B051-152 WASHING BOWL               5SETS

4. B051-152 SQUEEZE PRESS               5SETS

5. B031-152 FEEDER                       1SET

6. B031-183 FEEDER                       1SET

7. B061-8 DRYER                          1SET



TOTAL POWER: about 58.1KW.

OUTPUT: 500KGS/H (grease wool)

DRIVING MODE: Each unit is driven by separate motor

TOTAL AREA: 72×7.5 M²

TOTAL WEIGHT: about 78 Tons



TECHNOLGICAL PROCESS:

    B031-122 First feeder → B044-100 three drums opener → B031-152 second feeder → B051-152 first washing bowl → B051-152 first squeeze press → B051-152 second washing bowl → B051-152 second squeeze press  → B051-152 third washing bowel → B051-152 third squeeze press → B051-152 forth washing bowl → B051-152 forth squeeze press → B051-152 fifth washing bowl → B051-152 fifth squeeze press → B031-183 feeder → B061-8 dryer.

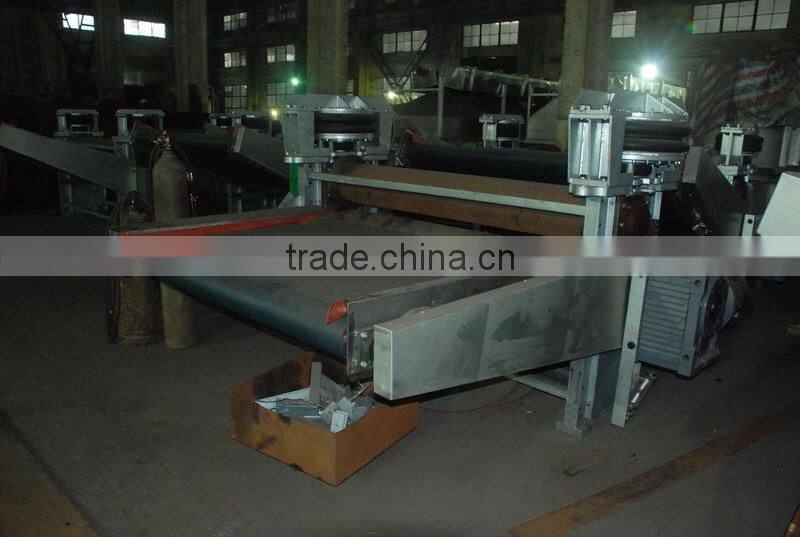

B031 FEEDER



USE:B031 feeder is used for feeding or cotton to opening and washing and drying.

 MAIN SPECIFICATIONS

Type	Width	Dimension	Net Weight
B031-122	1220	2453×2050×2720	1.75T
B031-152	1520	2453×2350×2720	1.85T
B031-183	1830	2453×2660×2720	2.0T

 HORIZONTAL LATTICE: The distance between working side to the ground is 643mm. And the driving speed is 1.1~3m/min.

 TILTED LATTICE: Horn height: 32 mm.

 Horn distance: 32 mm. (parallel arrangement)

 Driving speed: 6.5~15.2 m/min.

 EVENER HARROW: Working sway: 161.5 times/min.

 STRIPPER ROLLER: Diameter: φ487 mm.

 Rotational speed: 104~161.5 m/min.

 DRIVING METHOD: Driven by individual motors with v-belt.

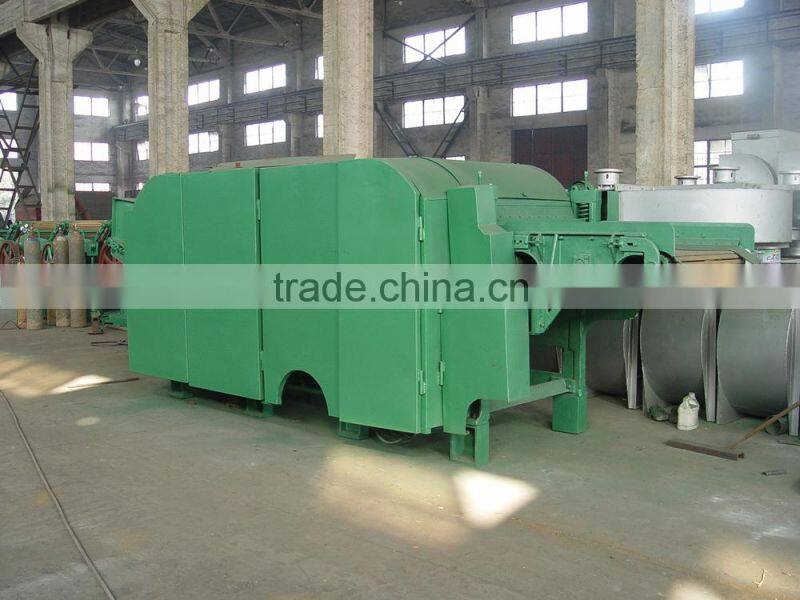

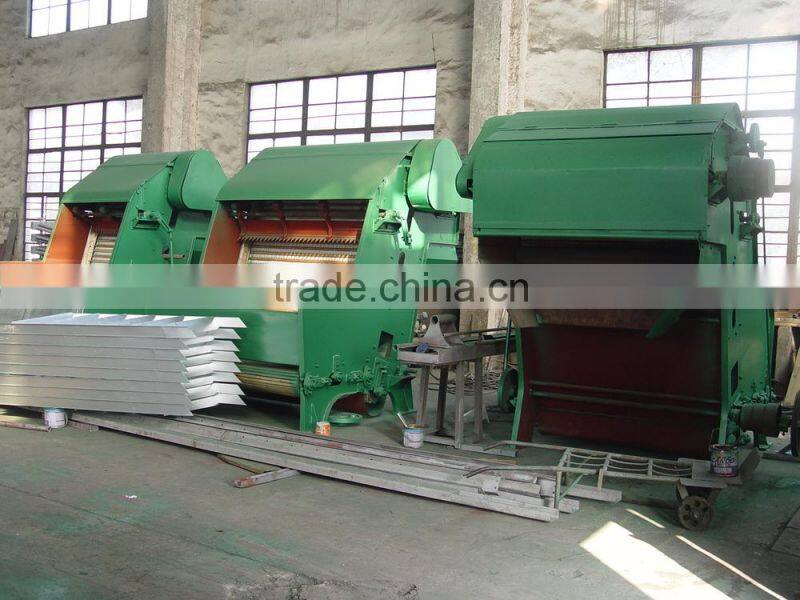

 B044-100 TYPE THREE CYLINDER OPENER





USE:Three cylinder (wool) openers is the unit of type LB023 combined wool scouring machine. It is suited for opening and cleaning grease of wool, cashmere and camel hair to remove the impurities of sandy, soil, weeds and burrs.



MAIN SPECIFICA TIONS:

1. Mode of machine: three cylinders.

2. Working width: Bw=980mm.

 3. FEEDING FOLLERS:

 A. Top feeling roller with groove on the outside cylinder, D0=142mm.

B. Bottom feeding roller with smooth surface on outside cylinder, D0=142mm.

4. Cylinder:

A. Diameter of pin tip on the cylinder DPT=Dia. 1000mm.

 B. Rotating speed nc(r/min):1st cylinder n1c=281r/min

 2stcylinder n2c=302r/min

 3st cylinder n3c=340.4r/min

 5. Screem: A. Mode: Drawer;

B. Gauge: That is the clearance between two neigh bouring Rods CG

 two Gauges CG. CG1=8mm for fine wool   CG2=12 for coarse wool

 6. Driving Motors: A.Main driving for cylinder power NMC=7.5KW

 Rotating speed NMC=970r/min

 B.Driving for feed power of motor NMF=1.5KW

 Rotating speed of motor NMF=125~1250r/min iM=1:10



Using V.S.motor, so its rotation speed can be adjusted steplessly.



 7. Dimensions: L*B*H=5800×2500×1820mm.

 8. Output: The max wool weight put in is Pmax≈700KG/H(approximately).



It is variable according to the different kinds of grease.



 Construction of machine:B044-100 three cylinder opener composed of feeding, three cylinder, screen, exporting and driving parts.

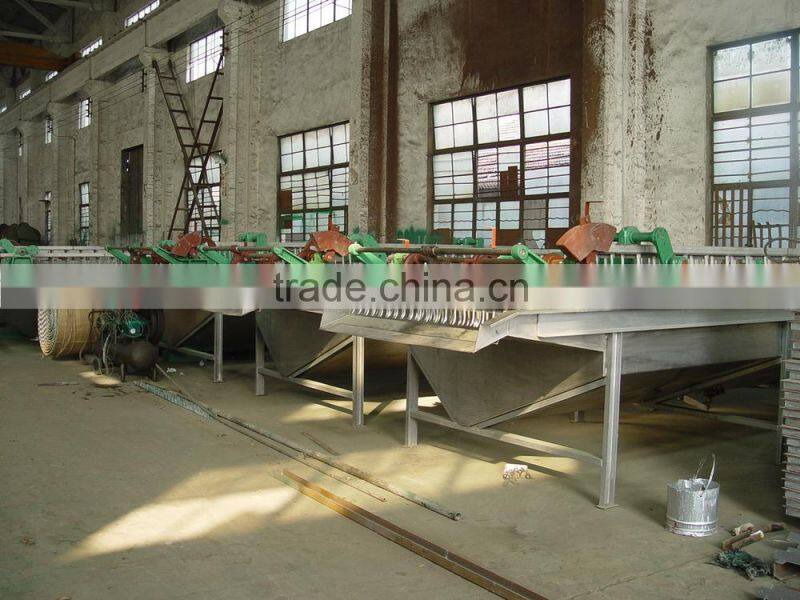

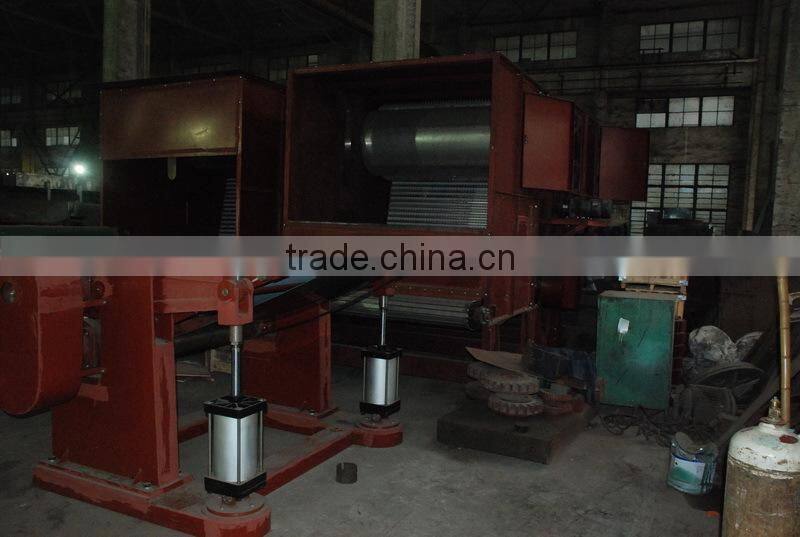

B051-152 WASHING MACHINE AND SQUEEZE PRESS





 USE This machine is suited for washing and removing the weeds crumbs, sandy, soil and impurities from opening wool .then are for the use of drying.



MAIN SPECIFICATION

 Type: Harrow with pin.

 WASHING BOWL:

1. Total bowl quantity: five

2. Working width of washing bowl:1520mm.Volume:the first and the second bowl:10.5 M³

 the third ,the forth and the fifth bowl:8.5 M³

3.  Temperature of washing water:25℃~60℃

4. Speed of harrow : main harrow 11 times/min

Export harrow 33 times/min

 Working route of travel: 220mm/time.

Power of motor: 1.5KW



SQUEEZE PRESS:

1.  Total quantity : five

2.  Rise pressure mode : with spring, The maximum pressure : 12T

3.   Pressure drum:

 A. working diameter: main drum is Dia. 305mm, Be driven drum is Dia. 360mm. (Before wrap woolen)

 B. working width: 1520mm

 C. working speed: 4.8turns/min

 D. power of motor: 2.2kw

 SUPPLEMENTARY BOWL: 1.Quantity: 5 sets

 2. Volume: about 2.5 M³



RETURN PUMP: 1. working speed: 2900 turns/min, Power of motor: 1.5KW

 2. Quantity: 5 sets

 DRIVING MODE: Total machine are single driven by motor

 TOTAL POWER: about 38.5KW

 TOTAL WEIGHT: about 47 tons.

 TOTAL DIMENSIONS:L*B*H=43550*3525*2250(mm)

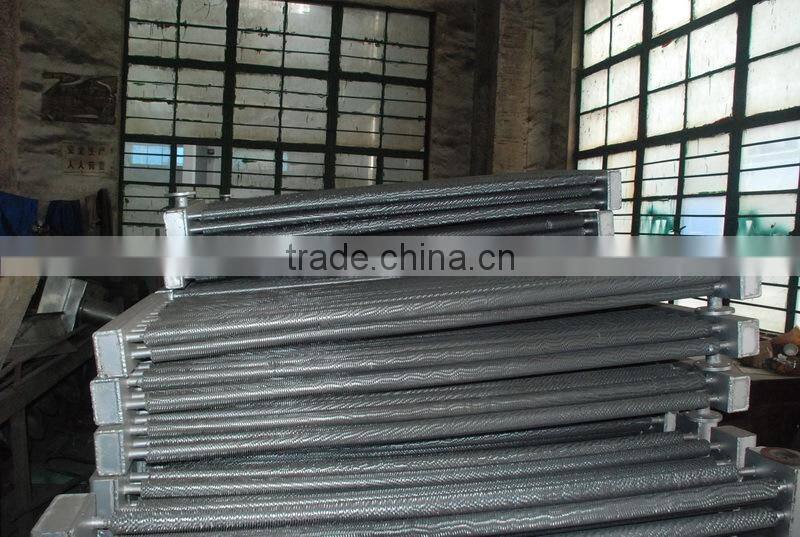

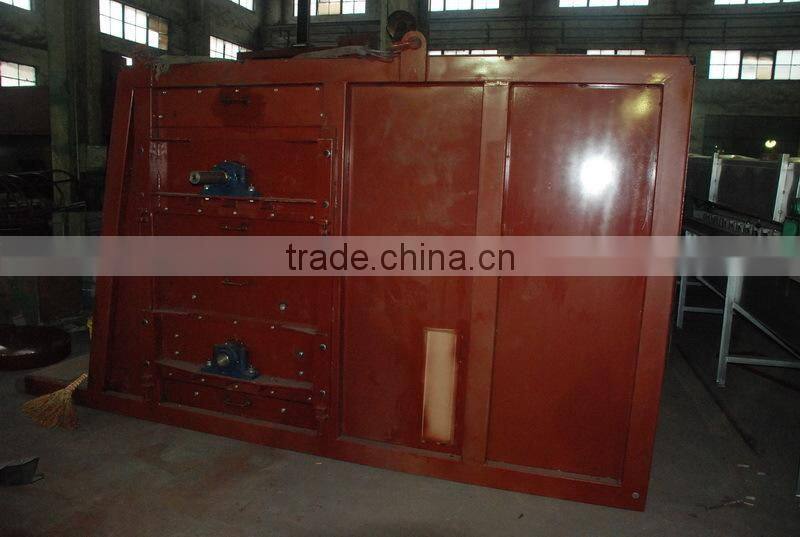

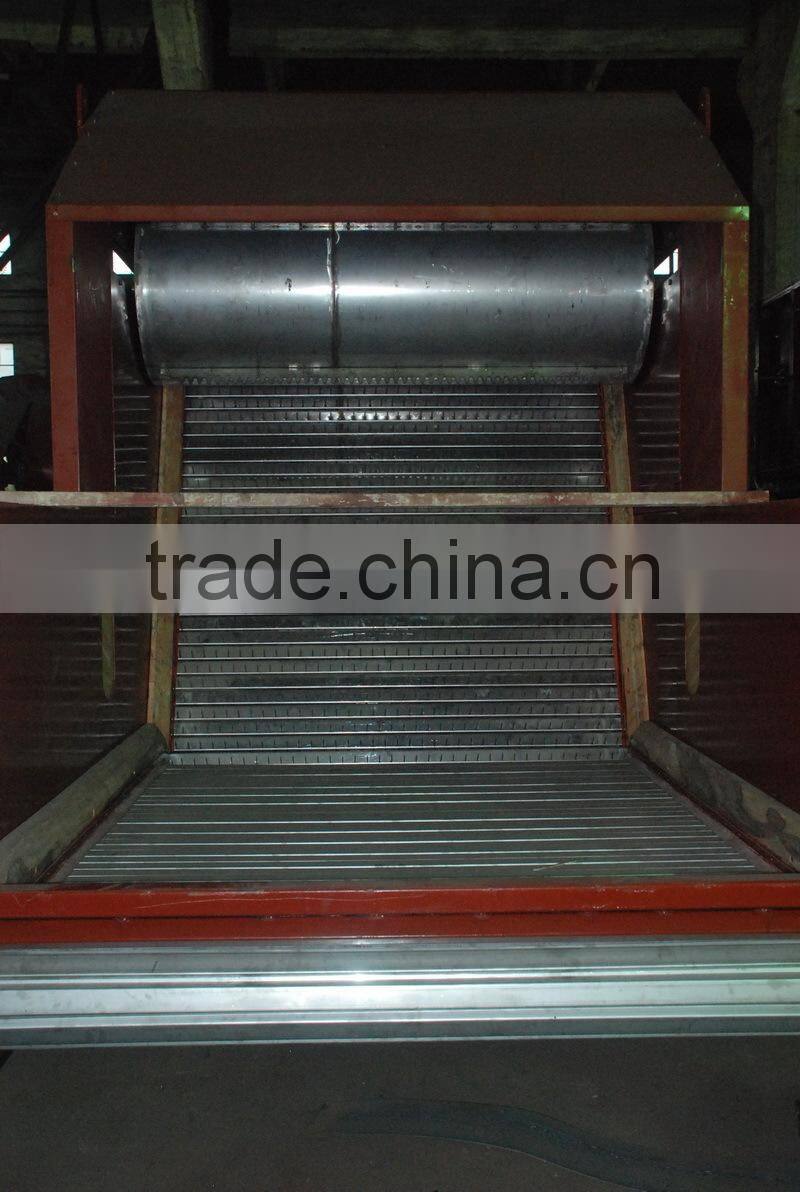

 B061-8 DRYER



USE This machine is suited for drying wool in scouring process.



MAIN SPECIFICATION:

1. Type: continuous drying

2. Working width: 1800mm

3. Height of export: 1196.50mm

4. Speed of delivery lattice plate: 0.37~1.4m/min

5. Available area of delivery lattice plate: 27.3 M3

 6. Radiating gurface: 465M2

 7. Steam pressure: 0.4Mpa

 8. Heated method: around steam jacket piping.

 9. Temperature of drying chamber (for wool) : 80~120℃

10. Regain after drying: 10~13%

 11. Speed of fan: 960 rpm

 12. Air capacity for upper fan: about 8000 M3/hr

 Air capacity for lower fan: about 11000 M3/hr

 Power for fan: 8 sets, 6 pole, 2.2KW.

13. Driving mode: with single speed governor motor is driven through V-belt worm gear retard box and chain.

 Power of this motor: 6 pole, 2.2KW.

14. Dimensions : L×B×H=16320×3110×2735(mm)

15. Total weight: about 20 tons.

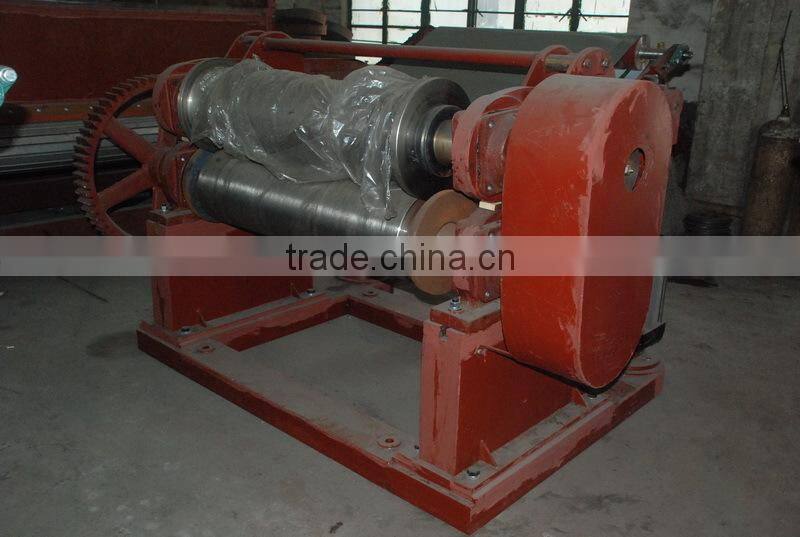

SMALL  SQUEEZE PRESS

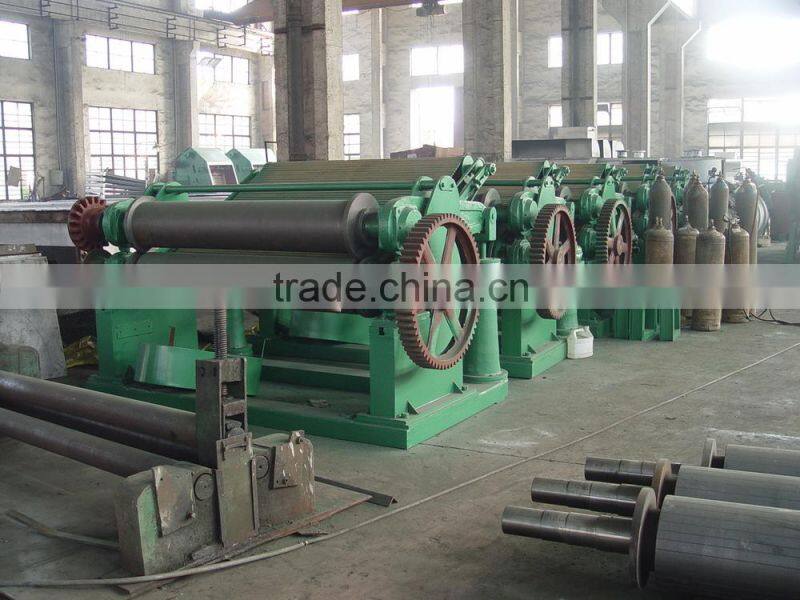

BIG SQUEEZE PRESS

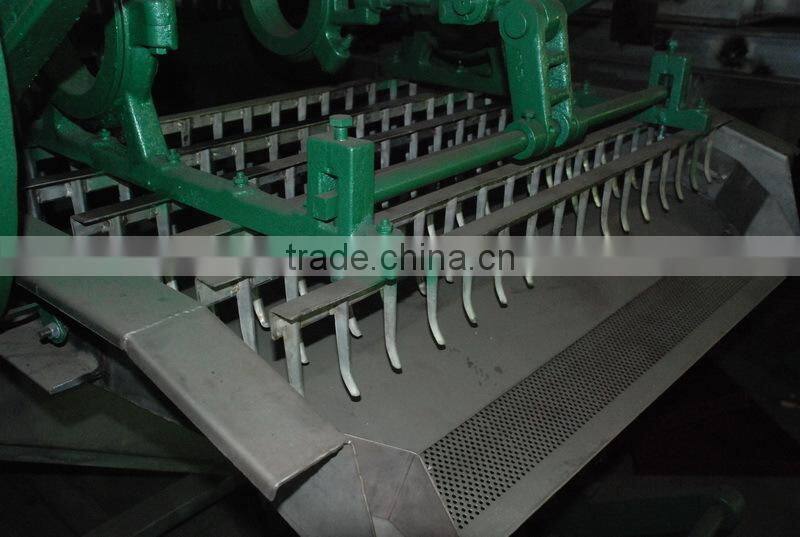

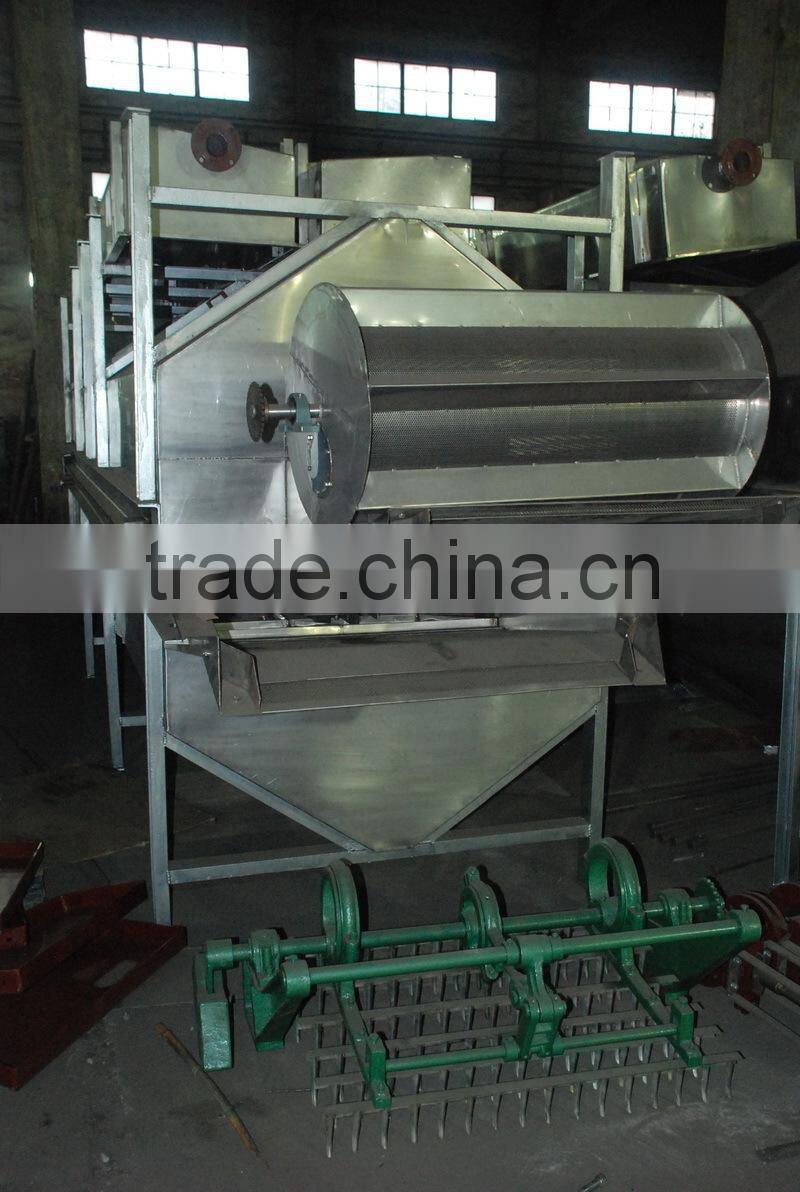

Small Washing Bowl
