Home > Products > pressure transmitter > explosion-proof pressure transmitter

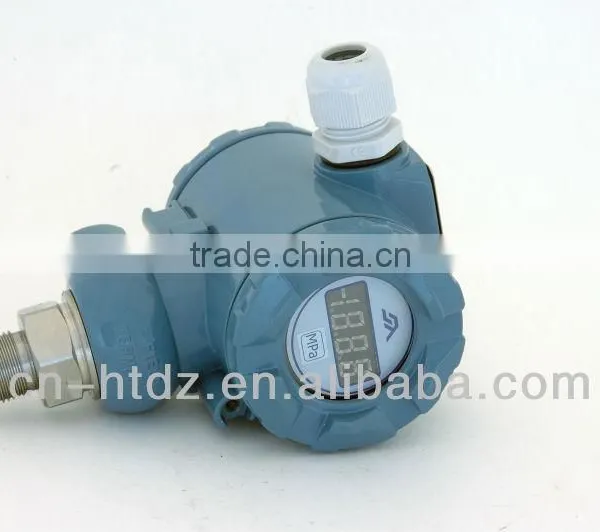

explosion-proof pressure transmitter

FOB Price

USD $60 - $100 / Piece

1 Piece(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Port XI'AN
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Shaanxi, China

Brand Name:

Model Number:

BP93420-III

Product Description

Specifications

Wide range, cast aluminium & explosion-proof housing,
Various pressure port
Various output signal, scene adjustable

Description

BP93420III pressure transmitter uses HT series piezoresistive silicon oil-filled sensor as the signal measuring element. Signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. All the products through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance. Have strong anti-interference performance, can working in harsh environment conditions for long term.

Feature

² Wide range, cast aluminium & explosion-proof housing,

² various pressure port

² Various output signal, scene adjustable

² Multiple protect, strong anti-interference capability.

² Marking: ExiaIICT6.

Application

² Compatible with 316LSS, noncorrosive gases & liquids.

² Special use in harsh environment conditions

Specification

Measurement Range	-0.1….0~0.01...~100MPa
Proof pressure	≤1.5X rated pressure or 110MPa which ever is less
Pressure type	Gauge, absolute ,sealed gauge
Accuracy	±0.25%(Typical) ±0.5%(Max.)
Long term stability	±0.2%F.S/year
Operating Temperature Range	-20°C~80°C
Storage Temperature Range	-40°C~120°C
Power supply	15~30VDC
Output signal	4~20mA 0~10/20mA 0/1~5VDC
Pressure port	M20×1.5 or customize
material	1Cr18Ni9Ti stainless steel
Diaphragm material	316L
O-ring	Fluororubber
Electrical housing	Cast aluminium alloy(2088housing)
Insulation resistance	100MΩ,100VDC
Protection	IP65
