Home > Products > New Products > BQ198 type automatic twisted warp tying machine Quality Choice
BQ198 type automatic twisted warp tying machine Quality Choice
- 5000 Set / Sets per Month
- SHANGHAI/NINGBO
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | China | Brand Name: | BOQIU | Model Number: | BQ188/198 |
| Machine Type: | Ironing Machine | Product: | Chenille | Material Capabilities: | Yarn |
| Condition: | New | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Name: automatic twisted warp tying machine
The Video Link on Youtube of the Machine
https://youtu.be/wXKfYmkZPyc
The BQ198 warp tying machine ties the warps prepared o the tying frame together, or call knots together. Depends on the type of yarn being used, the unit is capable of tying up to 600 knots per minute.
The modilar design of the tying machines enables the unit to be adapted and extended at any time to accommodate changing requirements, in addition to making it maintenance-friendly.
Variations of BQ198 warp tying machine
| BQ198 basic model | For warps without lease |
| BQ198 with lease | Basic model with a 1:1 lease group For warps with or without lease Lease control 1:1 (old and/or new warp) |
| BQ198 double knots | For warps without lease For warps with lease and without lease |
Product Display

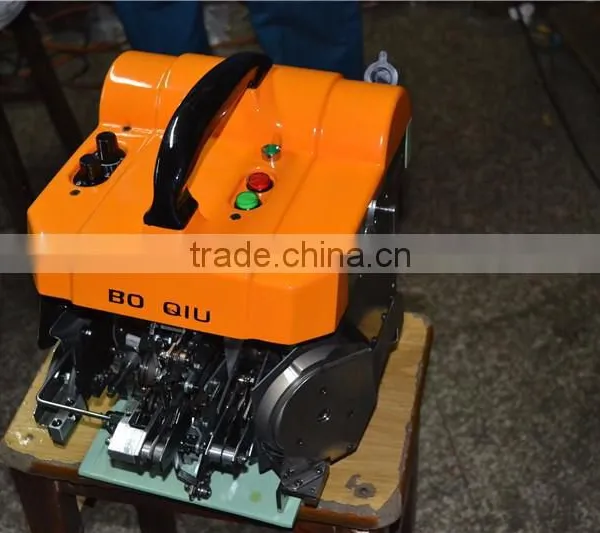

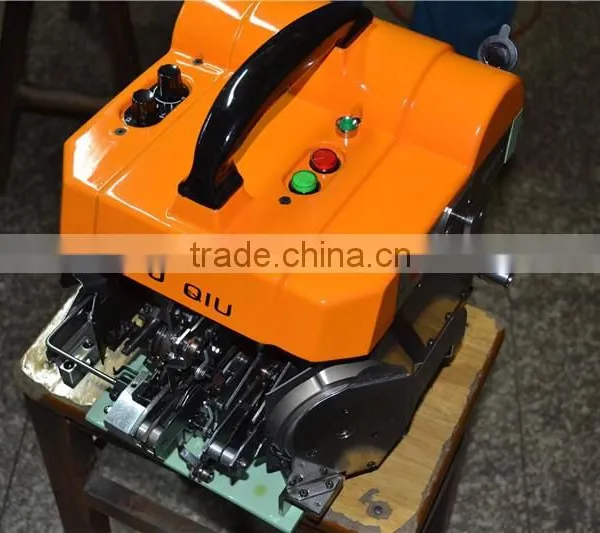

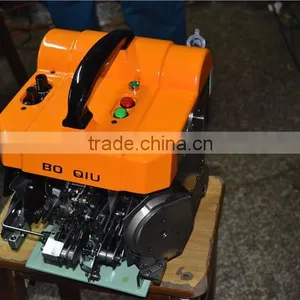

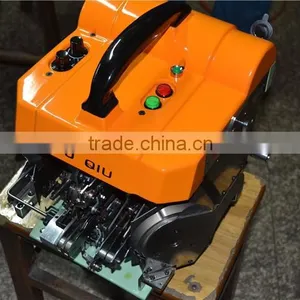

The Machine Frame and Details:
1.Technical data:
The following technical data applies to all tying machine types:
Ambient conditions
Indoor environment
Relative humidity: max. 90%
Temperature: 5-45°c
Input voltage: 220-240V AC
Power frequency: 50-60Hz
Power consumption: 100w
2. Brief operation instruction
Lubrication
After about 500,000 cycles of operation, the machine needs to oiling.
The table below lists the lubricants to be used for maintenance and servicing of the tying machine
Using other oil grades may result in degradation of the plastic components in the tying machine and thus is not recommended.
| Manufacturer | Oil grade | Viscosity mm2/s 40°c |
| Blaser | Blasol 158 | 48 |
| BP | Energol HLP-HM46 | 46 |
| ESSO | TERESSO 46 | 44 |
| Kluber | LAMORA HLP 46 | 46 |
| Kluber | CRUCOLAN 46 | 45 |
| Mobil | Mobil D.T.E.25 | 46 |
| Shell | Shell Tellus 46 | 46 |
| TOTAL | Equivis ZS 46 | 46 |
| VALVOLINE | ETC 46 | 46 |
We produce all the parts of the machine completely by ourselves, except the Motor, so we can control the quatlity more steady , and do better in all the details.
We DON'T assemble the machine, we produce the machine.
Welcome to visit our factory, and see the machine directly!
Any question, contact me freely.
