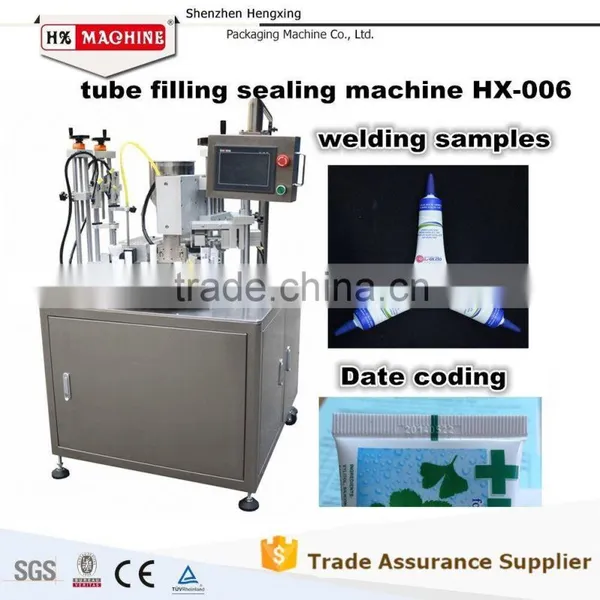

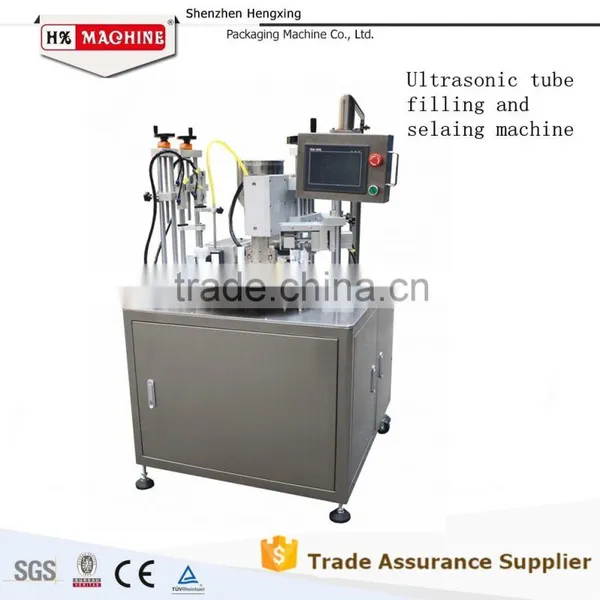

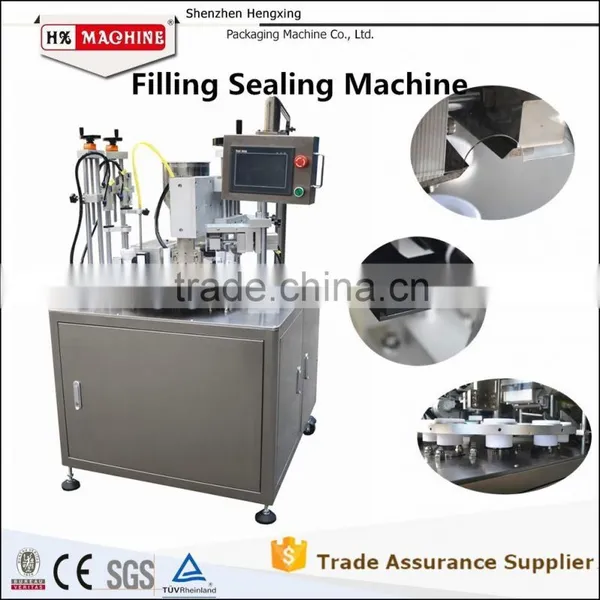

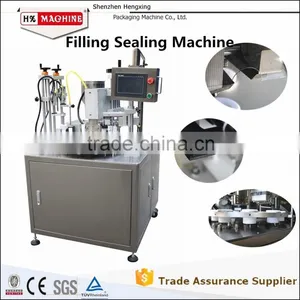

High Speed Automatic Soft Tube Filling and Sealing Machine
Machine specification:
Items | Parameter |
Model | HX-006 |
Frequency: | 20Khz |
Ultrasonic power: | 2000W |
Power Voltage | AC220V/50Hz, or 110v 60hz |
Output power | 2000W |
Length of tube | 50-250mm |
sealing Dia | 10-80 mm(can require) |
Filling Range (Option) | A: 6-60 ml, B: 50-120ml C: 100-250ml, D: 200-500ml |
N.W/G.W | 230KGS/300KGS |
H.S code: | 8422303090 |
Machine size: | L: 1300*W900*H1550cm |
Pack | Plywood wooden case |

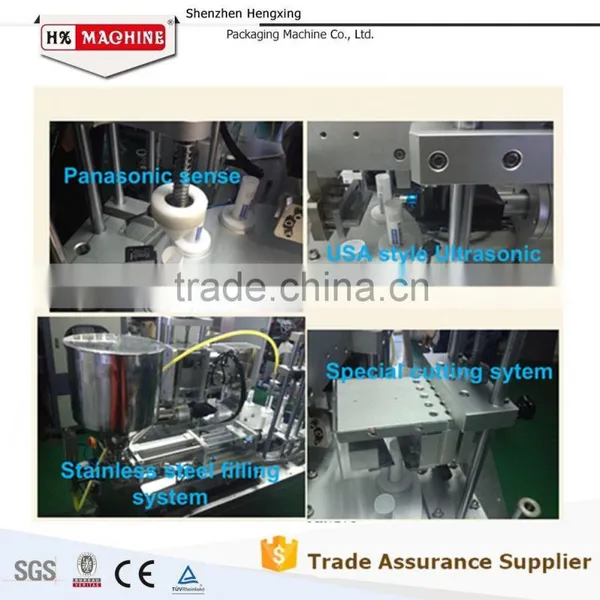

Advantage:

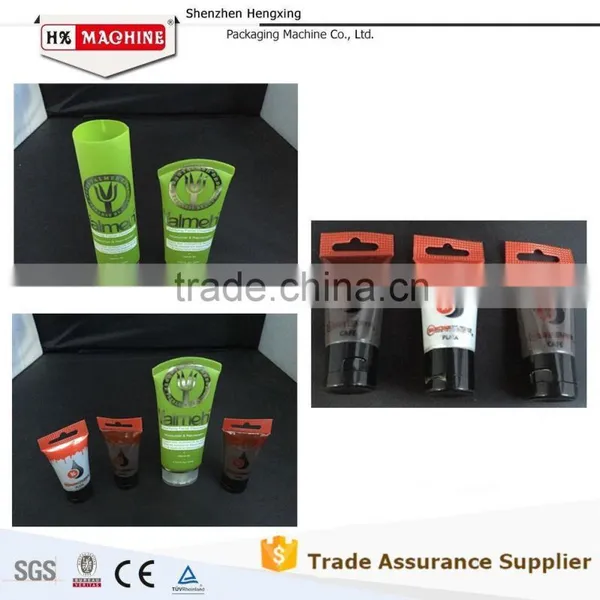

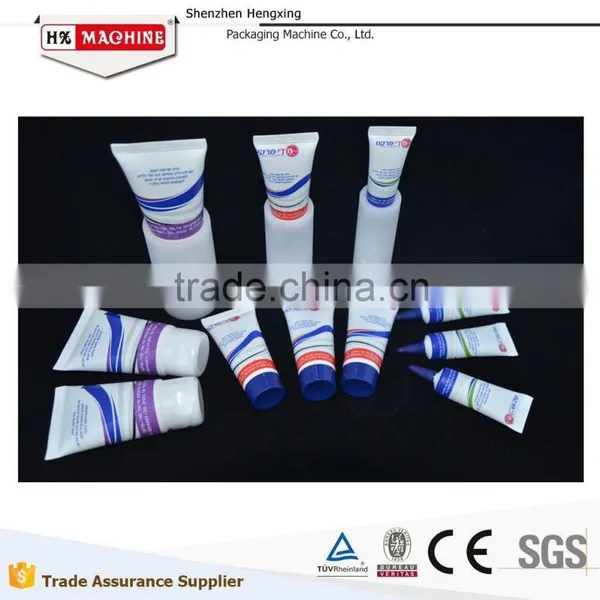

1.It adopts Ultrasonic sealing machine , good for difference products, Such as food, medical, cosmetic products. It will not hurting the products.
2. Overload protection, phase separation protection, power-fail protection.
3. Large Ultrasonic output power to ensure the sealing quality of various tube size and material.
4. With tube end trimming
5. Easy change working mold for difference tube diameter
6. Adjustable tube length
7. Machine include a gear pump filler( Good filling precision+- 1)

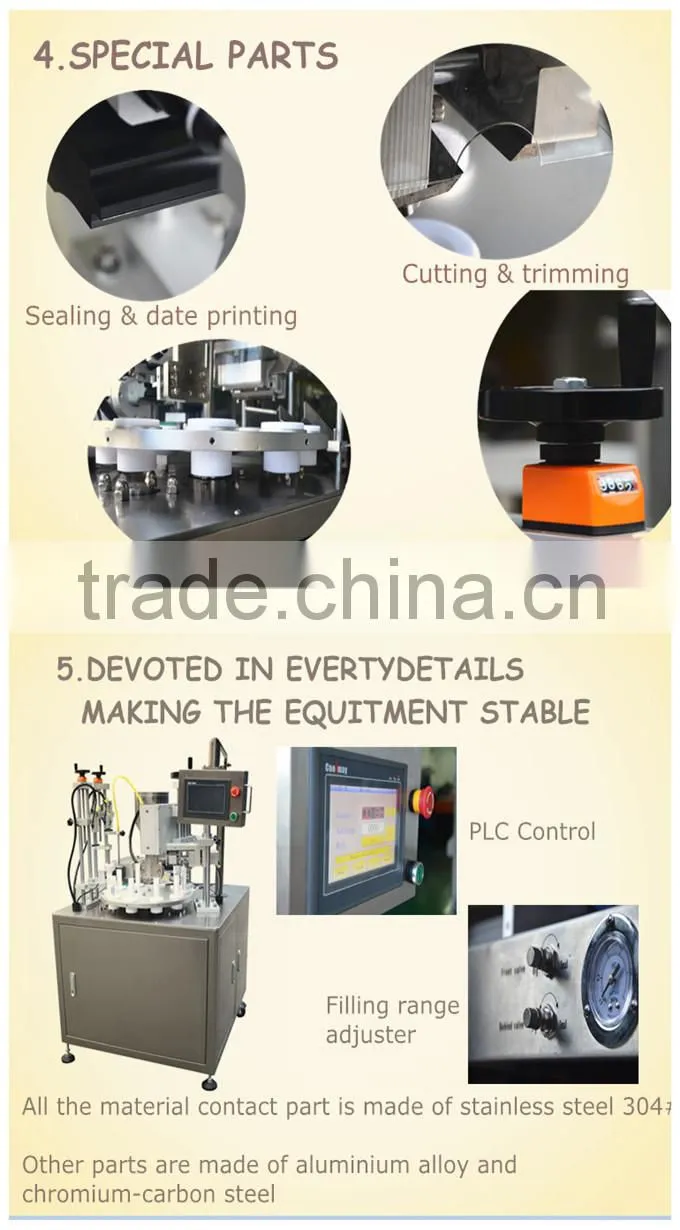

Main features:
1. Easy to operate and maintain.
2.Automatic positioning, filling, welding, cutting and trimming, printing code in one time.
3.. Stainless steel machine body, strong and beautiful looks,
4. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
6. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
7. Ultrasonic frequency can meet international standard, no harmful to human being or environment
8. Can be work in time, not need wait the heat time .
1.One year guarantee for whole machine
2.24hours technical support by E-mail or phone
3.Engineers available to service machine by overseas
4.Call or door to door service
