New Technology Wall Plastering Machine/ Wall Cement Spray Plaster Machine (Whatsapp: +86-13213238287) Quality Choice
- 500 Set / Sets per Month
- Qingdao/Tianjin/Shanghai/Any China Mainland Port
- T/T L/C D/P D/A Credit Card PayPal
- High Effciency Wall Spray Plastering Machine/Plastering Machine for Wall
- Automatic Wall Cement Plastering Machine/ Wall Plastering & Rendering Machine
- Automatic Wall Rendering Machine/Wall Plastering Machine
- automatic wall render spray machine
- automatic spray paint machine
- dry type shotcrete machine for sale
Product Details
Condition: | New | Automatic Grade: | Automatic | Power(W): | 0.65kw |
Rendering Thickness: | 30 mm | Rendering Height: | 3.5 m | Place of Origin: | Henan, China |
Brand Name: | Pasen | Model Number: | PS-800 | Dimension(L*W*H): | 78cm* 80cm*40cm |
Weight: | 80kg | Certification: | ISO | Warranty: | 24 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Automatic Wall Rendering Machine/ Plastering Machine for Wall/ Automatic Wall Cement Plastering Machine/ Wall Plastering &Rendering Machine/Wall Spray Plastering Machine
Auto Platering Rendering machine also called plaster machine, wall plastering machine, automatic plastering machine, plastering machine for wall, which is a unique machine for wall rendering, it is designed for increasing rendering efficient and saving labor cost of rendering project.
Parameters of Wall Cement Spray Plaster Machine
Single-phase motor | 0.65kw | Start mode | Control button ( distribution box) |
Motor speed | 1440n/min | Reducer | Reduction ratio30 :1 |
Plastering speed | 3.5m/39s | Plaster width | 0.3m- 0.8m |
Plastering height | 0.5- 3.5m | Plaster efficiency | 2.56m2/39s |
Plastering time | 39s | Plastered area | 2.56m2/39s |
Secondary calender time | 39s | Secondary pressure light area | 2.56m2/39s |
Flatness error | ≤3mm | Vertical error | ≤ 3mm |
Plaster thickness | 2-30mm | Walking speed | 10m/ Minute |
Vertical adjustment motor | 24v 30w | Alignment guide motor | 550W |
Walking mot | 550w | Reducer | 30 :1 |
Lifting motor | 0.65kw | Reducer | 30 :1 |
Console shape size | 30cm*50cm*80cm | Console weight | 20kg |
The plaster drive motor | 650w | Reducer | 30 :1 |
The main rail height | 176cm | Positioning rail height | 176cm |
Features of Wall Cement Spray Plaster Machine
1, The volume is small, the weight is light , easy to move (automatic walking, automatic positioning, automatic adjustment of the plaster thickness , automatically adjust the plaster joints ) , easy to operate .
2,The unique design of the dual- rail automatic lift , automatic positioning , the main rail design height of 1.96m , host design : wide 78cm x long 80cm . Breakthrough of the biggest challenges of the whitewashed wall machine manufacturers of domestic and market can not solve so far for different floors of a high degree of automatic movements , and an effective solution across the room the construction of fills .
3,The machine is designed to squeeze plaster , plaster thickness up to 0.2 - 3cm not fall off , further strengthened the bond strength of the mortar and the wall , dense degree more than the manual more than five times , an effective solution to the artificial plaster in mortar off and hollowing phenomenon .
4,Positioning mode , our company developed a complete positioning system , combined with laser positioning ; the positioning is simple , fast , high precision . Really reached the whitewashed wall of the precedent of automation at home and abroad , to effectively guarantee the accuracy of wall roughness and verticality.
5,The professional design of automatic retractable motor adjustment control verticality and the second rail positioning to achieve the plaster , the whereabouts of the mobile location at the same time , significant savings in time and solve this problem up outside the host .
6,The unique design of the plaster thickness and the second plaster joints automatic retractable motor adjustment , the adjustment range between 2mm - 50mm , free to run , to achieve a degree of automation .
7,Yin and yang, the angle forming device is specifically designed based on years of experience in construction company's technical staff .
8,This machine equipped with operating platform, very lightweight, weighing only 20Kg.The base is provided with a universal wheel, can be very handy operation.

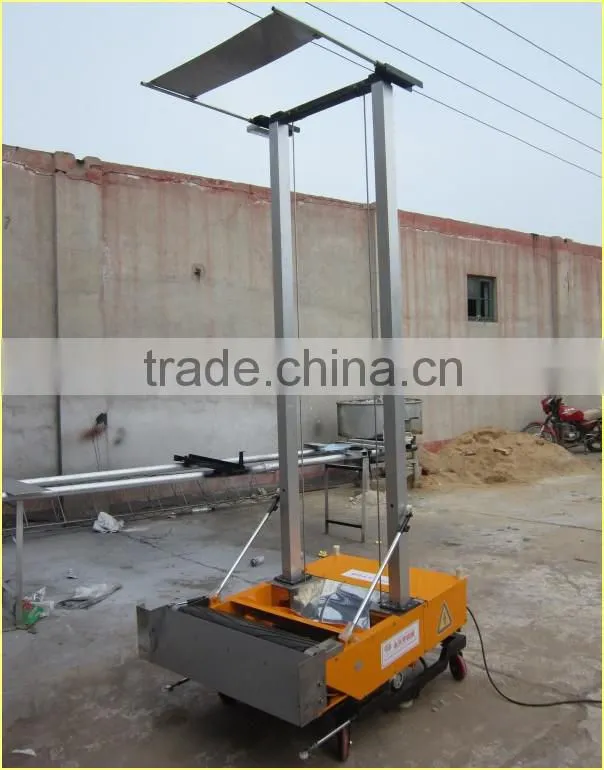

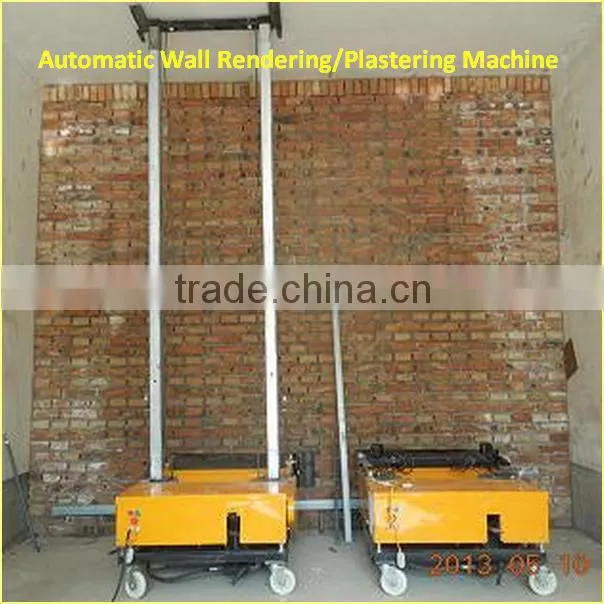

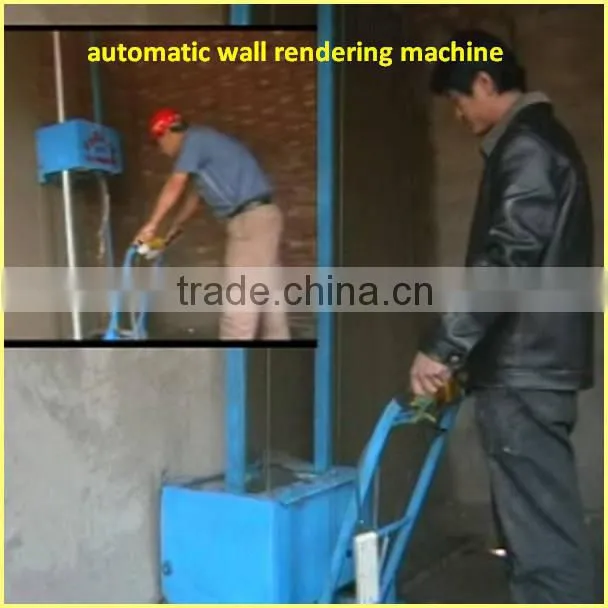

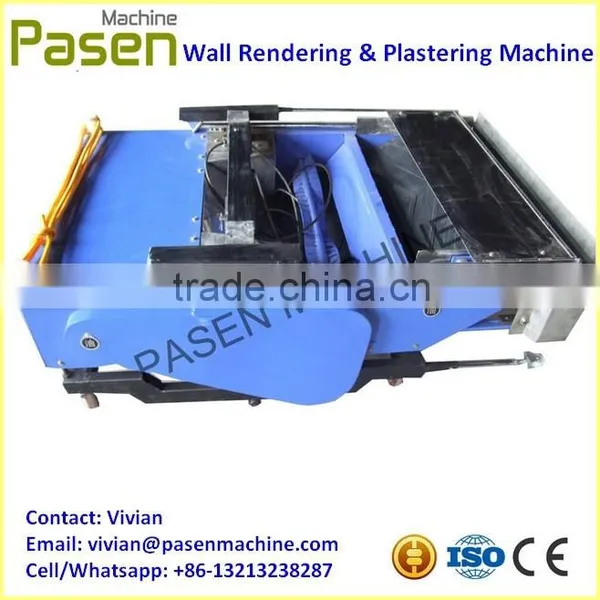

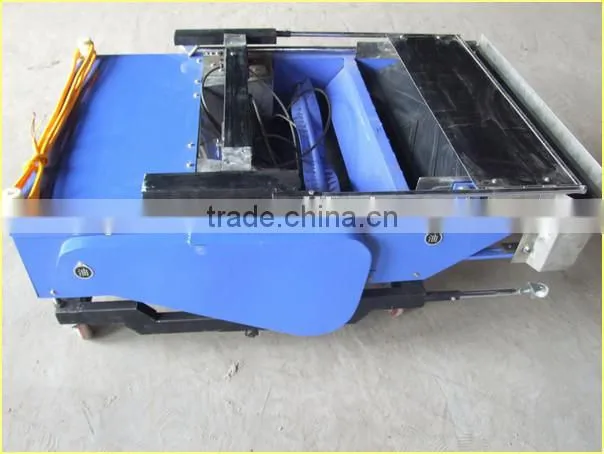

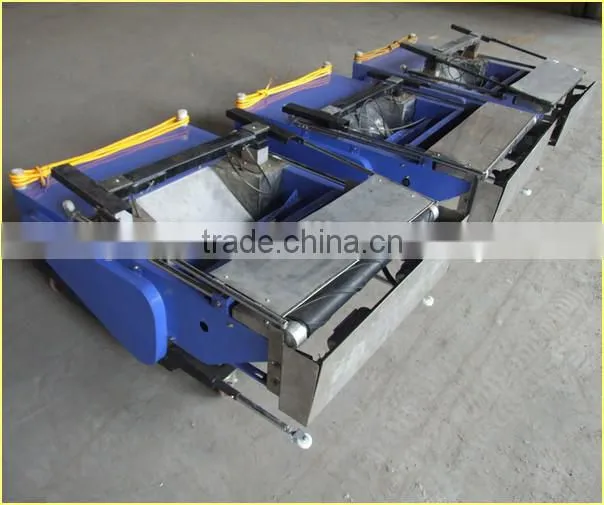

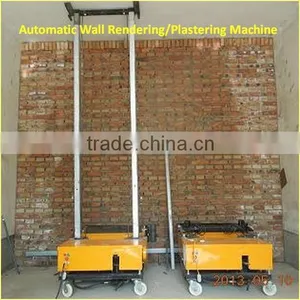

Photos of Wall Cement Spray Plaster Machine
Delivery Time | Within 5-7 working days after receiving clients’ payment. |
Payment Terms | T/T, L/C, D/P, D/A, Escrow, Paypal, Western Union |
Packing | a. Machines are wrapped in plastic film first before packing, which is to avoid moisture on the sea. |
Quality Guarantee Terms | Quality guarantee term is for one year. Malfunctions which are caused by machineself and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self. |
Service | All produts purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. a, Before sending the machine, we will test and adjust, so you can use directly when you get it. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time. a, Any problems occur while using, professional advice will be offered. |
--- Why Choose Us
1.We are true Manufacturer.
2.Alibaba Assessed Gold Supplier.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price
How to Contact Us?
a, Send your Inquiry Details in the Below, Click "Send" Now!
b, Call me at +86-13213238287 or send me message on whatsapp with ID +86-13213238287.
c, Contact me according to the tools shown below:
1, Are you manufacturer?
Yes, we are manufacturer with more than 15 years' experience.
2,Can you ship the machine to my address?
Yes, we could use DHL to express the machine. While transport cost will be higher than by sea.
3, Where are you? Can we go to China and visit your factory?
Yes, of course. We are in Henan, China. Welcome to our factory.
4, Do you have manual with the machine?
Yes, of course. It is in English version.
5, Can you offer us the necessary paper to do the customs clearance?
Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms), insurance policy (if CIF terms), also CO if you need.
