the hottest product of 20 liter bottled water filling machine

Specifications

20 liter bottled water filling machine
1.MOQ: 1 set
2.Material: 100% sus304
3.Capacity: 120-1200 BPH
4.BV.CE.ISO.TUV

the hottest product of 20 liter bottled water filling machine

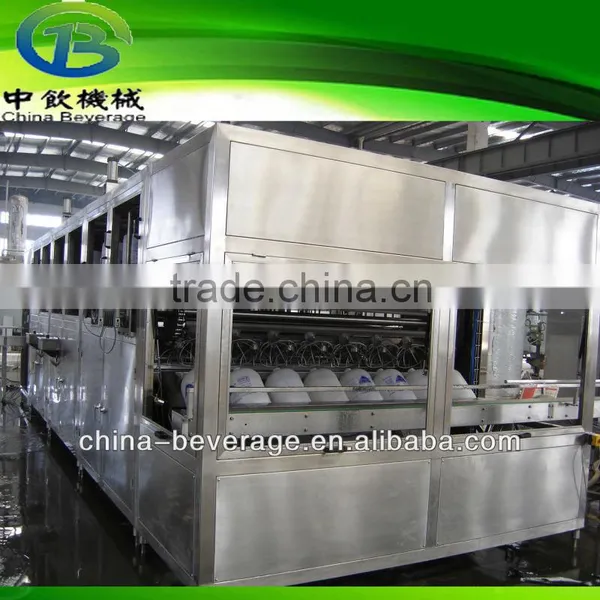

Barreled Water Filling Machine is used in producion of non-soda drink of minerals and pure water packed in polyester bottles.Washing ,filling and capping are integrated in one machine.the most advanced technology from Japan and Germany is employed in the design.

The gravity fixed liquid surface filling is used .The filling is fast ,the amout of liquid is accurately controlled and the dropping and leakage are avoided.Spring cramps are used in the bottle washing process.

The filling and capping will be stopped automatically when there is no bottle.When bottles are cramped wrongly or when caps are not available ,the machine can be stopped automatically.The frequency changing technology is used to adjust the operation speed steplessly.

The production capacity can be displayed digitally and also can be adjusted conveniently.

Features

Ø The spray nozzle for washing is the technology products of American sprayer company

Ø Intellectual management, controlled by MITSUBISHI micro-computer.

Ø Siemens electrical element

Ø AIRTAC pneumatic element

Ø The whole set of equipment is made of stainless steel especially for food

Ø Including system for automatic cap settling and cap transportation

Ø Installment of automatic trouble protected device



Technical Parameters

Model	QGF-120	QGF-300	QGF-450	QGF-600
Filling heads	1	2	3	4
Volume(L)	18.9	18.9	18.9	18.9
Barrel size(mm)	φ270×490	φ270×490	φ270×490	φ270×490
Capacity(B/n)	100-120	200-240	300-400	600
Gas pressure(mpa)	0.4-0.6	0.4-0.6	0.6	0.6
Gas consumption(m3/min)	0.37	0.6	0.6	1.2
Motor power(Kw)	1.75	3.22	4.8	8.5
Rated voltage(V)	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Outline dimension(mm)	3790×650×1550	3550×800×18002800×1100×1800	3550×1200×18003800×1100×1800	3650×1500×18003800×1100×1800
Weight(kg)	800	2800	4000	5500
