BONENS RI00T chip component resistor surface mount device

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Sichuan, China	Brand Name:	Bonens	Model Number:	RI00T chip resistor
Type:	Variable Resistor	Technology:	Carbon Film	Package Type:	Surface Mount
Resistance:	1~500Ω	Resistance Tolerance:	±5%	Rated Power:	1~1000W
Temperature Coefficient:	±300*10-6/℃	Operating Temperature:	-55℃~+165℃

Product Description

Specifications

1,high power resistor
2,1ohm--500ohms
3,RoHS compliant
4,RUV certification
5,free sample and high quality

Details of Products:

•Products of special resistance and specifications are provided.

•Products of special standing wave ratio should be given a clear indication in contracts.

•Special requirements of standing wave ration is tested and chosen only for products of 50Ω.

•Products are corresponded to the standard of GB/T5729-94.

•Any special requirement is appreciated.

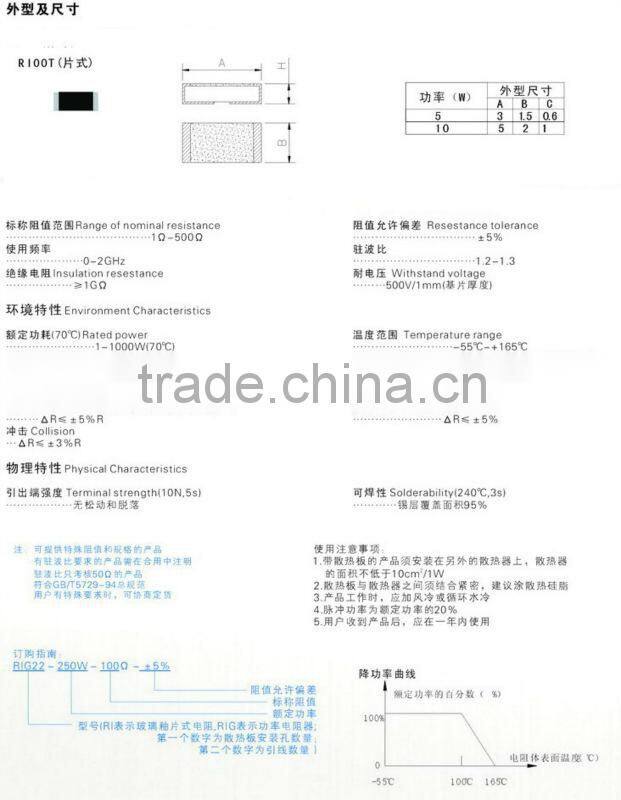

Electrical Characteristics

Range of nominal resistance: 1 ~500Ω

Frequency range: 0~2GHz

Insulation resistance: ≥ 1GΩ

Resistance tolerance: ±5%

Standing wave ratio: 1.2~1.3

Withstand voltage: 500V/1 mm (Substrate thickness)

Environment Characteristics

Rated power: 1~1000W (70°C)

TCR: ±300×10^-6/°C

Moisture proof (GJB306A-96-Method106): ΔR≤±5%R

Test at low temperature (-55°C, 24h): ΔR≤±5%R

Collision: ΔR≤±3%R

Temperature range: -55°C~+165°C

Temperature shock (-55°C/+125°C, 3 times): ΔR≤±5%R

Vibration (10-500HZ, 0.75mm, 6h): ΔR≤±3%R, No mechanical damage

Load life (96): ΔR≤±5%

Some parts of our certificates
