Production line for Polypropylene corrugated sheet
- 10 Set / Sets per Month
- Wuhan
- T/T
Product Details
| Condition: | New | Application: | Sheet | Plastic Processed: | Other, PC PP PE |
| Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Hubei, China |
| Brand Name: | HANDERN | Model Number: | Production line for Polypropylene corrugated sheet | Voltage: | 220V 380V 415V 440V 600V 50HZ 60HZ |
| Power(W): | 75-110KW | Dimension(L*W*H): | 20mx2.5mx2.2m | Weight: | 20 Tons |
| Certification: | ISO9001 CE certification | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Production line for Polypropylene corrugated sheet

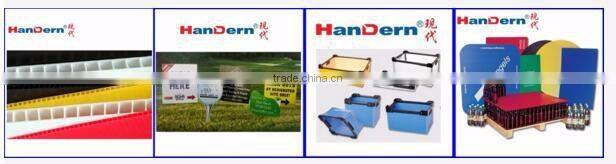

Production line for Polypropylene corrugated sheet is to produce PP PE hollow sheet. Finished Products are of high quality and used in many fields
Parameters of Production line for Polypropylene corrugated sheet
Number
| Item | Unit | Quantity |
1
| Extruder with single screw | set | 1 |
2
| Screen Changer | set | 1 |
3
| Die | set | 1 |
4
| Vaccum Calibrator | set | 1 |
5
| First haul-off unit | set | 1 |
6
| Drying oven | set | 1 |
7
| Cooling Device | set | 1 |
8
| Second haul-off unit | set | 1 |
9
| Cutting device | set | 1 |
10
| Electrical control Cabinet | set | 1 |
11
| Stacker Unit | set | 1 |
12
| Screw feeder | set | 1 |
Specifications of Production line for Polypropylene corrugated sheet
Machine type
| sheet width(mm) | sheet thickness(mm) | Max Extrusion Capcity(kg/h) |
1400
| 1250 | 2-6 6-12 12-20 | 280/280/350 |
1800
| 1650 | 2-6 6-12 12-20 | 320/350/420 |
2300
| 2150 | 2-6 6-12 | 350/350 |
2700
| 2550 | 2-6 | 480 |
Features and Advantages of Production line for Polypropylene corrugated sheet
No
| Parameters | Features | Advantages |
1
| Extrudes | special designed screw advanced temperature control system | stable extrusion high output |
2
| Die | super quality alloy lips adjustable restrict bars | even pressure |
| 3 | Vacuum calibrator | heatconvection system with array interleaved The vacuum system consists of two independent subsystem | precision of calibration |
4
| Electrical control system | precise parameters optimize the operation features | microprocessor unit(PLC) |
Pictures of Production line for Polypropylene corrugated sheet

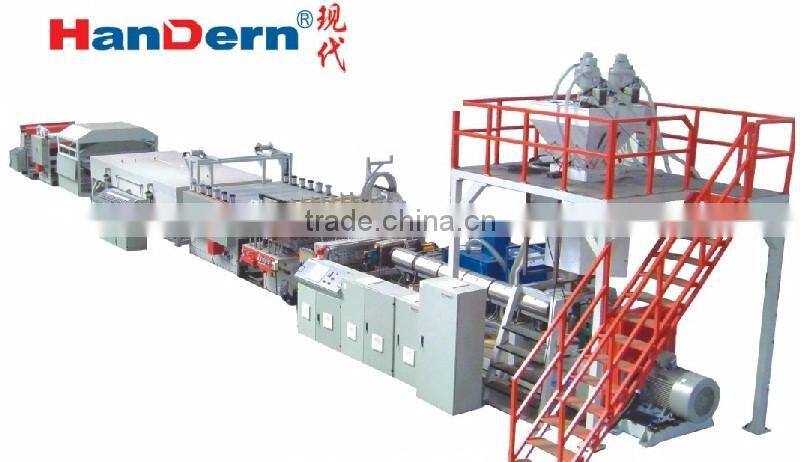

1400mm Production line for Polypropylene corrugated sheet
1600mm Production line for Polypropylene corrugated sheet
2000mm Production line for Polypropylene corrugated sheet
2500mm Production line for Polypropylene corrugated sheet
Wooden case is provided for Production line for Polypropylene corrugated sheet
We promise to provide the best quality Production line for Polypropylene corrugated sheet
1.Supply the complete drawings for installing the machine and send one or two technicians to buyer to install and adjust the machine and train operator of buyer. Or operator trainee coming to our factory for study.
2.The seller guarantee the eligible production can be make out by the machine supplied by seller at buyer's company.
3.The buyer should prepare all the condition such as water, workspace, power, air, etc, according to the using condition of the machine, before our engineers arrival.
4.Supply complete service.
Quality Control Flow Chart of Production line for Polypropylene corrugated sheet
