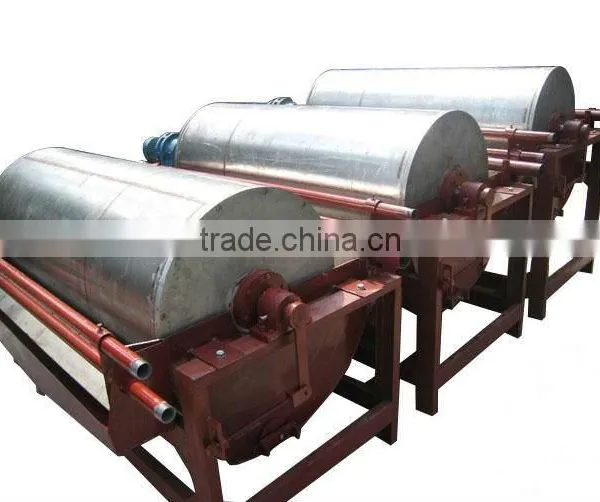

hematite magnetic separator / iron ore processing equipment / ctb series magnetic separator
- 200 Set / Sets per Month
- Qingdao Shanghai Guanghzou or other places you like !
- T/T Credit Card PayPal
- Wet Magnetite Separator for Ferric Oxide / Magnetic Extractor for Ferric Oxide / wet magnetite separator for Fe,Fe3O4
- Dry High Intensity Magnetic Separator / magnetic separator dry style / dry magnetic separator capacity 0.5~3t/h
- 2014 Iron Ore Dry Magnetic Separator / Newly Dry Magnetic Separator
- chromite magnetic separator / chromite magnetic dry separator / dry type magnetic separator
- dry high gradient magnetic separator / powder magnetic separator
- dry high gradient magnetic separator / magnetic separator price
Product Details
Condition: | New | Type: | Magnetic Separator | Production Capacity: | 2~200 t/h |
Place of Origin: | Henan, China | Brand Name: | Weilite | Model Number: | CTB |
Voltage: | 220 ~ 460 V | Power(W): | varies from machines to machines | Dimension(L*W*H): | varies from machines to machines |
Weight: | Varies from machines to machines | Certification: | SGS | Warranty: | One year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
CTB series magnetic separator / China supplier1.energy saving
pletely structure
3.selling by the manufacturer directly
High gradient magnetic separator Wet Style
Part One : General Description and usuage
Magnetic Separator is widely used in mineral processing, coal washing and chemical industry, for sorting the wet particle size of 6-10mm. The strong magnetic minerals and magnetic minerals are divided into two kinds of material: non-magnetic material and megnetic material. Magnetic separator is suitable for wet magnetic separation of materials such as magnetite, calcined ore, etc. and it can remove the iron in the coal, non-metal and construction industries.
Part Two : Working Principle
When the pulp flows to the magnetic separator via inlet, the mineral granules spread. As a result of the magnetic force, the magnetic minerals concentrate as a lump or a chain. This lump or chain is then absorbed on the roller surface owing to the magnetic force. When the magnetic lump or chain rotates with the roller, gangues and other non-magnetic minerals falls off from the lump or chain and are then discharged from outlet. The lump or chain left at the wall of the roller is ore concentrate.
Part Three : Main parameters
Model | Strength of magnetic field | Processing capacity | Motor Power | Weight |
CTB 600X1200 | 1450 Oe | 8~15 t/h | 1.5 kw | 910 kg |
CTB 600X1800 | 1500 Oe | 15~25 t/h | 2.2 kw | 1340 kg |
CTB 750X1800 | 1550 Oe | 30~45 t/h | 3 kw | 2050 kg |
CTB 900X1800 | 1650 Oe | 35~60 t/h | 4 kw | 3000 kg |
CTB1050X2400 | 1650 Oe | 60~95 t/h | 5.5 kw | 5020 kg |
CTB 1200X3000 | 1650 Oe | 80~150 t/h | 7.5 kw | 7800 kg |
CTB 1500X3000 | 1650 Oe | 120~200 t/h | 11 kw | 9600 kg |
Please note that :
If you could not find the wet magnetic separator in this page , please feel free to contact me ! We are the mining equipment manufacturer in China , we can produce the right machine for you according to your specific requirement !
My mobile phone no. is +86 371 86687769. Please call me or email me ! We can talk more !
