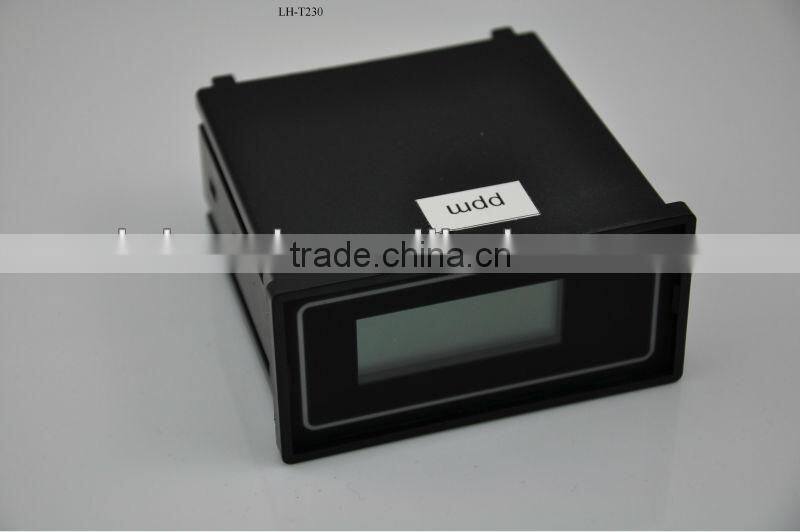

High Quality Online TDS Monitor/total Dissolved Solid Meter LH-T230

High Quality Online TDS Monitor/total dissolved solid meter LH-T230

Features:

1. On-line panel mount conductivity monitor

2. Display inμS and mS

3. Simulate Function, Non-isolated 4-20Ma current output

4. Automatic temperature compensation

Technical Parameter:

Sensor input range:0~20,0~200,0~2000ppm

Accuracy:1.5%(FS)

Stability: ±2*10-3(FS)/24h

Display: Back light 3.5-bit LCD

Temperature compensation: Automatic compensation standard Temperature:25°C

Electrode: 1.0cm-1 plastic platinum gold electrode,1/2” thread

Cable length: 5m or others(5~30m)

Current output: Non-isolated 4-20mA current output

Power supply: AC 220V ±10% 50HZ

Environmental conditions: Temperature:0~50°C; Humidity:≤85%RH

Dimensions: 48*96*100mm(height*width*depth)

Panel cut-out: 45*91mm

Installation: Cut-out Fit-in

Application:

1. RO/DI system monitor

2. Cooling water monitor

3. Industrial water process monitor

4. Desalinization monitor

5. Water quality monitor
