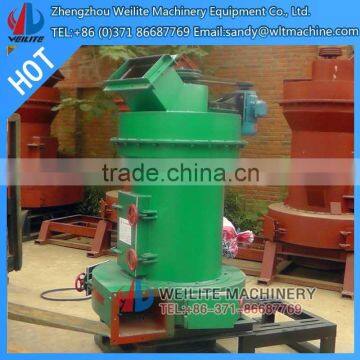

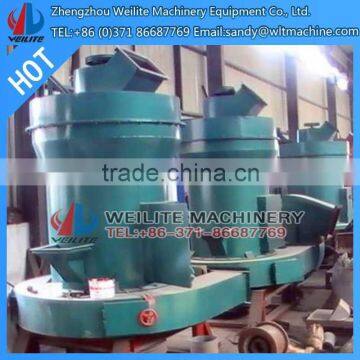

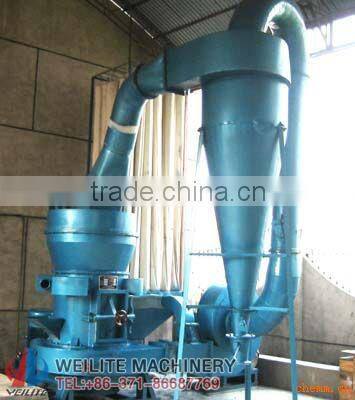

Professional Calcium Carbonate Mill Machine
1.Calcium Carbonate Mill Machine Introduction
Calcium carbonate mill machine is a newmill. It is designed by engineers based on many years’ industrial mill research and the needs of mill industry. The adoption of world leading powder processing technology makes professional coal pulverizer grinding mill start a new era of mill industry with high efficiency and low consumption. It is the ideal substitute of the traditional Raymond mill.

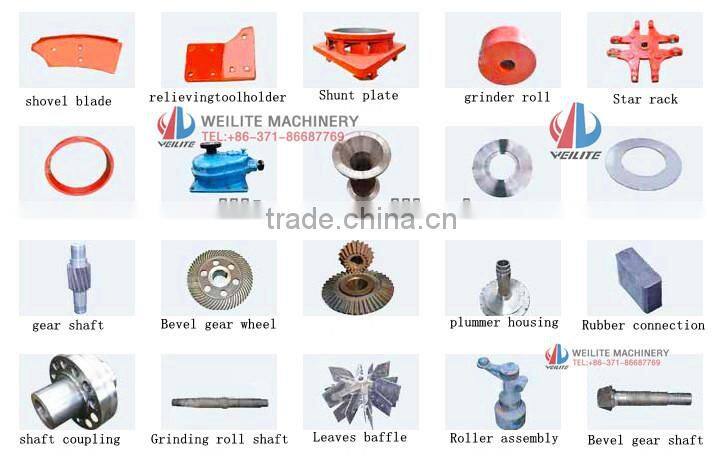

2.Calcium Carbonate Mill Machine Mainly Parts
The machine is included of raymond mill, blower, analyzer, cyclone separator, dust collector, and duct system. The main mill is consist of up and down body, grinding roller, grinding ring and reducer.We also offer jaw crusher, elevator, vibrating feeder ,electric control gear and motor, etc according to the users`requirement.

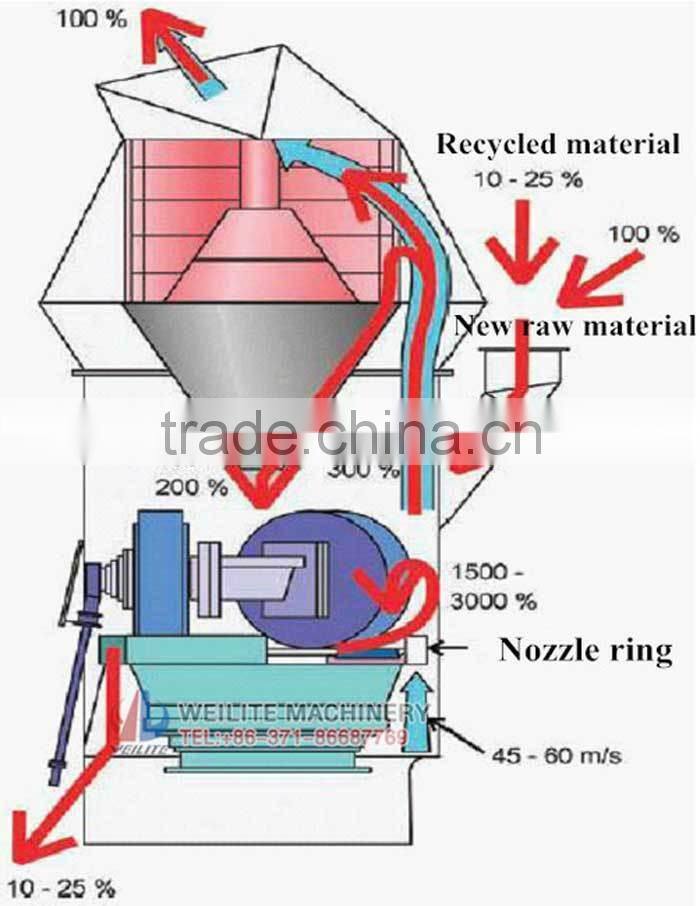

3.Calcium Carbonate Mill Machine Working Principle
Firstly, raw material is crushed by jaw crusher to the size required, and then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers of raymond pulverizer oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.

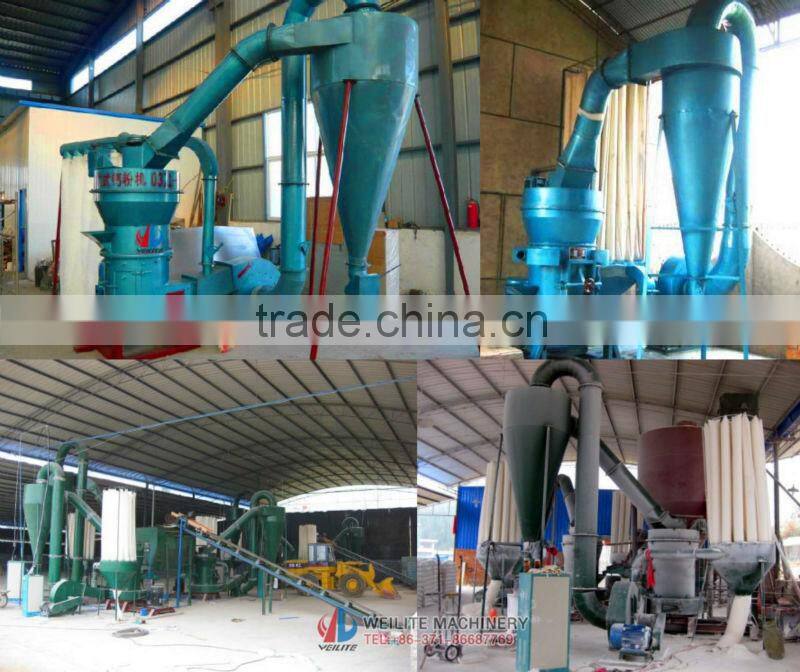

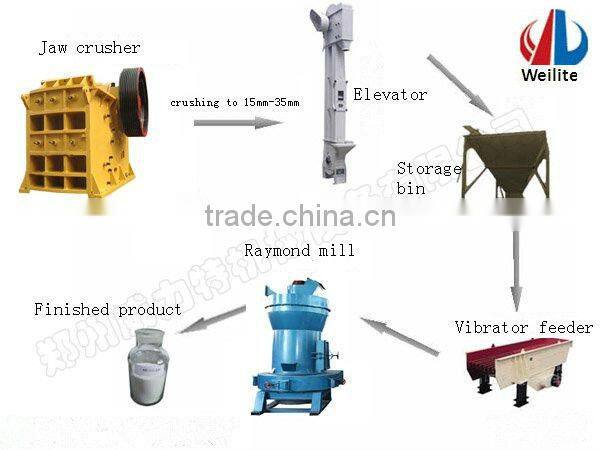

4.Calcium Carbonate Mill Machine Production line
5.Calcium Carbonate Mill Machine Technical parameter
Model | 3R1410 | 3R1815 | 3R2115 | 3R2615 | 3R2715 | 3R3016 | 4R2715 | 4R3016 | 4R3216 | 5R4119 |
Max feeding size (mm) | 10-15 | 10-15 | 10-15 | 15-20 | 15-20 | 20-25 | 15-20 | 20-25 | 20-25 | 20-30 |
Output size (mesh) | 60-325 | |||||||||
Shift output (t/8h) | 1-10 | 1.3-14 | 1.5-16 | 2-24 | 2-29 | 3-34 | 2-31 | 3-35 | 3-39 | 5-66 |
Roller diameter (mm) | 140 | 180 | 210 | 260 | 270 | 300 | 270 | 300 | 320 | 410 |
Main power (kw) | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 22 | 30 | 37 | 75 |
Blower power (kw) | 5.5 | 7.5 | 11 | 18.5 | 18.5 | 22 | 18.5 | 22 | 30 | 75 |
Analyzer power (kw) | 1.1 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 5.5 | 7.5 |
6.Our service for Calcium Carbonate Mill Machine
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
7.Company Introduction
Zhengzhou Weilite Machinery Equipment Co.,Ltd.is a manufactrurer of mining machinery in china.Raymond Mill Equipment is one of the our main products .All our products are ISO9001:2000 confirmed and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!
Note: If you didn't get the suitable machine in this page , please email me you detailed requirement.
Hot Sercice Line:+86-371-86687769
Personal Phone/We Chat/What's app:+86 15137145403
Contact Name:Ms. Ivy Zhang
Skype:ivyzhang2421
