Home > Products > Heater products > Industrial heater,50-500W 220V Aluminum alloy radiator,Aluminum alloy heater

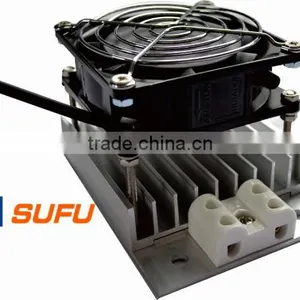

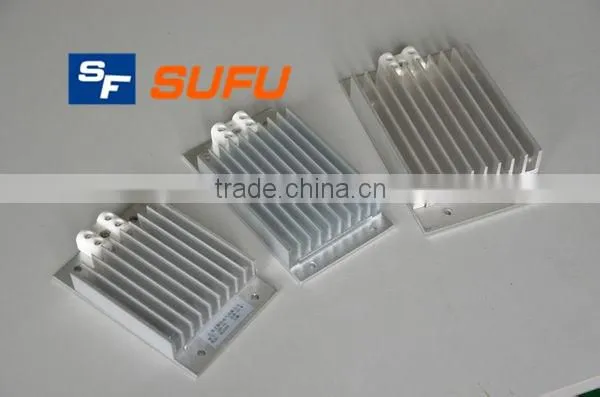

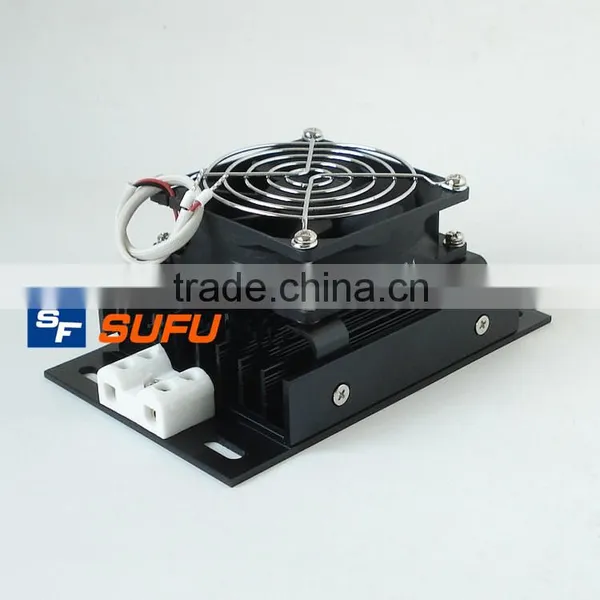

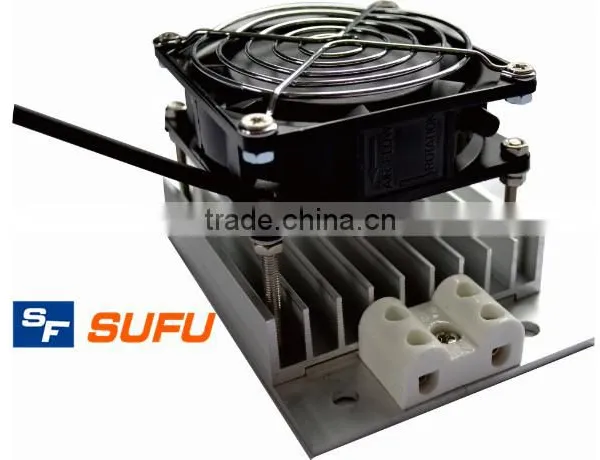

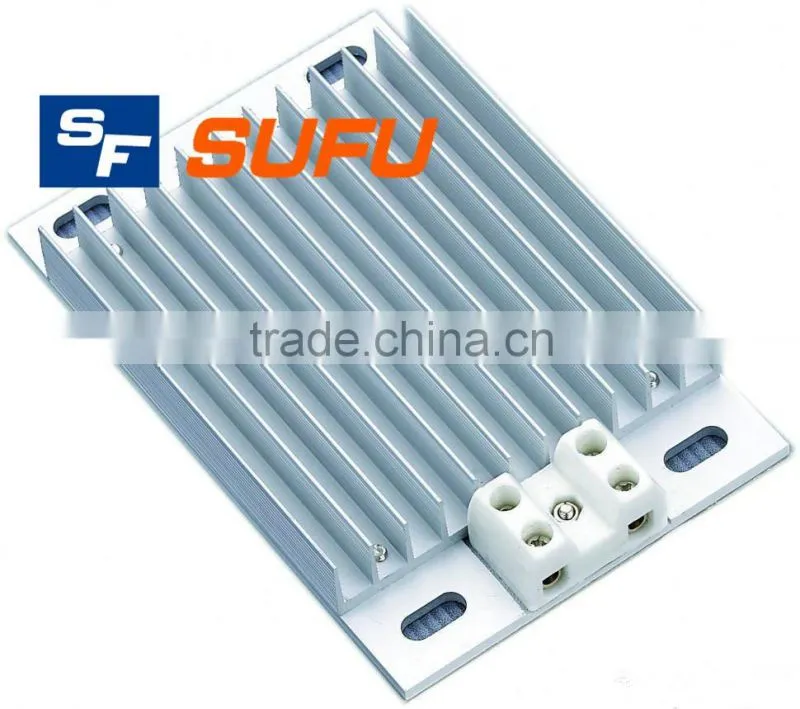

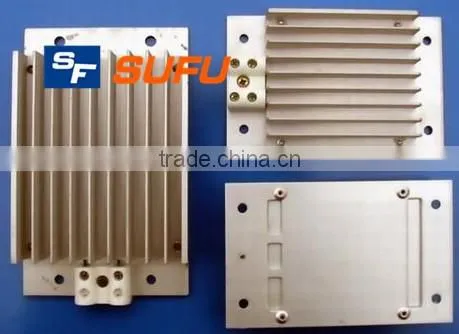

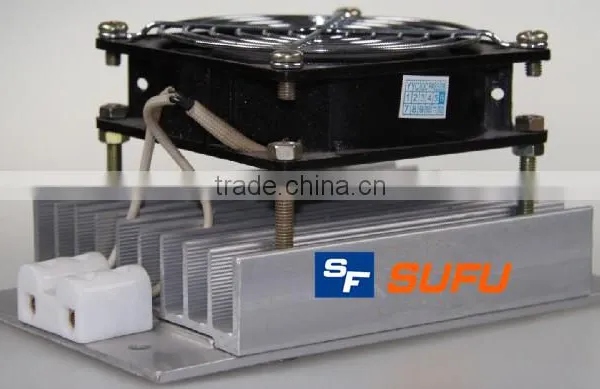

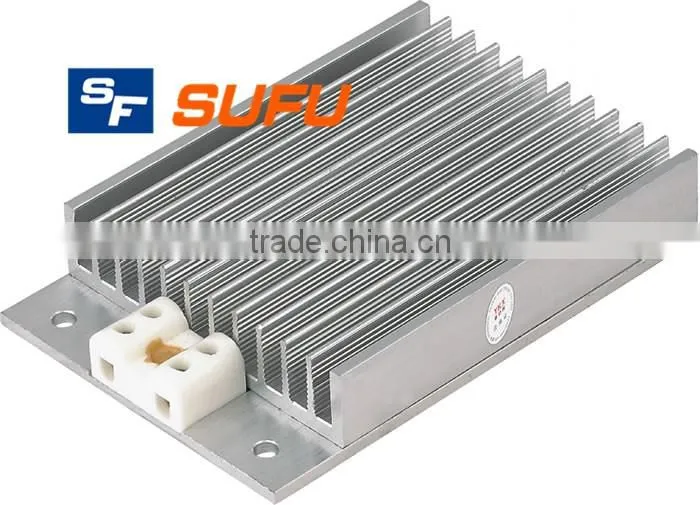

Industrial heater,50-500W 220V Aluminum alloy radiator,Aluminum alloy heater
- 500 Piece / Pieces per Month
- shanghai
- T/T
-
Alumium Alloy Heater for Industrial switchgear cabinet,Non-standard heater
-
Non-standard heating products, OEM heating product customization, OEM assembly production
-
Control electric cabinet, desiccant, damp proof heater
-
Stainless steel mica heating ring,band heater Mica Heating Element Mica Band Heater
-
Stainless steel mica heating ring, ceramic heaters, cast aluminum heater, cast copper heater
-
Non-standard product development and manufacturing heating, electric heater
Product Details
| Condition: | New | Type: | Other | Power Source: | Electric |
| Place of Origin: | Jiangsu, China | Brand Name: | sufu | Model Number: | Customized |
| Dimension(L*W*H): | Custom Size | Weight: | Final Dimension | Voltage: | 220-380V |
| Power(W): | 1w-10000w | Certification: | ISO9001 | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
If you are interested in our products, please contact us. thank you!
Specifications
1.aluminum alloy comb heater
2.10 years factory
3. 2 years warranty
4.CE TUV ROHS Certificate
5.aluminum panel heating
50-500W 220V electric cabinet DJR ohmic industrial aluminum alloy comb heating/heater
1.newest 50-500W design DJR ohmic heater
2. 10 years factory
3. 2 years warranty
4.CE TUV ROHS Certificate
5. aluminum panel heater
6.Type DJR aluminum alloy pectination heater is a new heater design for electrical equipment damprof.
Type DJR aluminum alloy pectination heater is a new heater design for electrical equipment damprof.This heater is composed of alwninum alloy cooling plant and good quality of alloy heating wire.There have five characters small cubage beautiful apprence thermolysis uniformity and larger cubage of thermolysis that assure the heating wire can use more time than the common heater can work credibility.
Features:
The heater use 6063-T5 Aluminum Alloy extrusions for the conduction cooling body, its internal heater using Qualitied Ni80Cr20 nickel-chromium alloy.
The product has small size, light weight, heat dissipation area and long life, the Wiring Terminal device is safe, reliable, not easy to damage.
Specifications:
Model | Power (V) | Heat Watt(W) | Dimension(mm) | Heating Element Lengh(mm) | Hole Distant(mm) | Installtion Hole Size (mm) |
DJR-50 | 220/110 | 50 | 132*85*23 | 90 | 55 | 6.3 |
DJR-75 | 220/110 | 75 | 132*85*23 | 90 | 55 | 6.3 |
DJR-100 | 220/110 | 100 | 163*100*28 | 120 | 55 | 6.5 |
DJR-150 | 220/110 | 150 | 163*100*28 | 120 | 55 | 6.5 |
DJR-200 | 220/110 | 200 | 163*100*28 | 120 | 55 | 6.5 |
DJR-200 | 220/110 | 200 | 205*100*28 | 160 | 55 | 6.5 |
DJR-300 | 220/110 | 300 | 205*100*28 | 160 | 55 | 6.5 |
DJR-500 | 220/110 | 500 | 205*100*28 | 160 | 55 | 6.5 |
Voltage:AC/DC 55V 110V 220V 380V
Heating power: 50W 75W 100W 150W 200W 500W
Insulation resistance:more than 100M
Withstand voltage test:more than 2000V/min
Mounting bracket:S type,L type
Packaging:ceramic heater in plywood case outside if needed.
Shipment:1.small quantity by DHL,FEDEX 2.Bulk goods by Sea Freight.
Other services we are committed to offer include:
1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.
