Therapy/rehabilitation Machine EA-737Dfor Family Use,PK Most Popular,with ce Certification,ISO9002,ISO13485

Specifications

electronic therapyEA-737D
1.used with TENS and EMS
2.Breast enhancement
3.massage whole body
4.bioelectric simulation

Home Electronic Pulse Massager/EMS EA-737D



EA-737D gets warm welcome in PK,then West African and North African.

with ISO 13485,ISO 9002,CE certification



• Classica home electronic pulse massager with high-tech design of digital circuit chaging into analog circuit makes the stable product performance.
• The best competitive price,the best quality,accept OEM & ODM orders
• No any side-effects to ease pain by physical therapy insteady of medication

Features:

• Two programs(treatment and massage) and six grades output intensity for your choice.
• During the treatment of Applied Thermotherapeutic Belt, the temperature can be maintained within 35~60 centidegree meanwhile the emitted far-infrared radiation wavelength is 810.65μm, which is similar to the radiation wavelength of human surface (9.6μm) and is consequently easily absorbed by human body.
• It is more convient and accurate by using rotary buttons.
• 3 output devices: 2 for therapy,1 for far-infrared heating treatment.The treatment of paste electrode and magnetic infrared belt treatment can be treated at the same time.

Special Functions:

• Health care treatment and abirritation for authrosis for authrosis rheumatalgia,  cervical vertebral pain, scapulohumeral periarthritis, lumborcrural pain and extremity numbness etc.
• It can be used for such disorders as overall fatigue neurathenia sore waist and aching back pain on the neck the shoulders and loins and so on.
• Can accelerate local blood circulation,improve local supersession speed virus cleaning activate cells produce internal demulcent accelerate nerve's function to reproduce and tissues' reparation.
• Far-Infrared thermotherapy: It is applicable for adjuvant treatment amd health care and physical therapy for lumbocrural pain and general upset stomache etc.





No.	Model Specification	Models EA-737D
1	Power supply and voltage	a.c.220V±22V,50Hz±1Hz net power supply direct suply
2	Power	≤28VA
3	Frequency range	0.5Hz-1000Hz
4	Pulse duration	0.07ms-1.2ms
5	Single electrode max out put energy	<300mj
6	Single electrode output effective voltage	<25V
7	Output pulse feature curve	B mode linear continually adjustable V out min<Vout max ×2%(V)
8	Far-Infrared thermotherapeutic temperature	Within 35-60 centidegree
9	Time Setting	Two grades for 15~25min
10	Dimensions(main unit)	178mm×158mm×70mm
11	Weight	1.5kg
12	Electrode pad size	82mm×43mm(40mm×40mm,40mm×80mm)

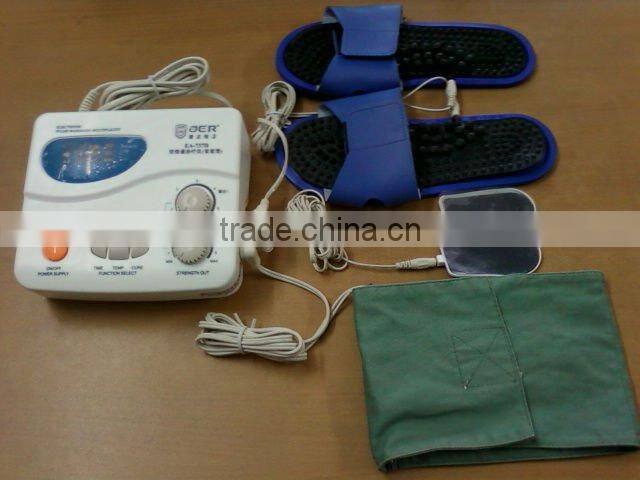

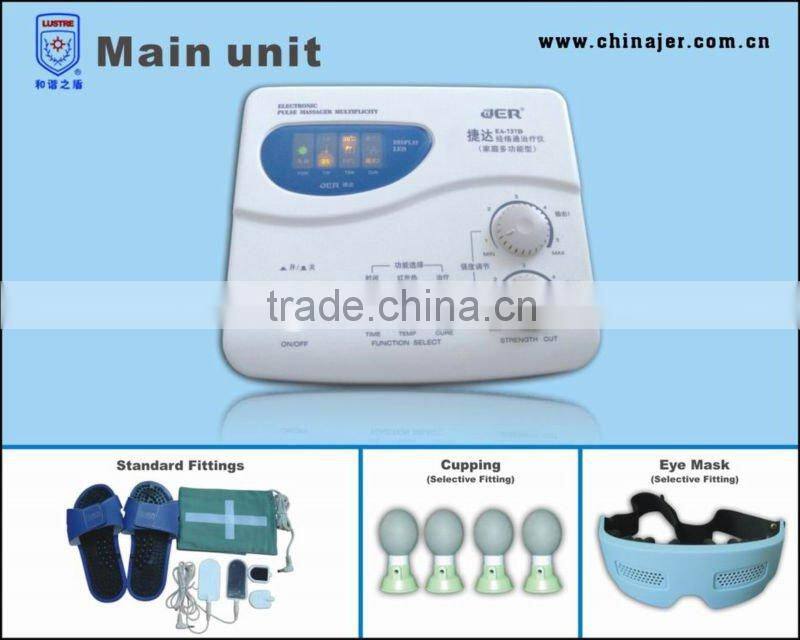

Components:

1) 1×Main unit

2) 1×far-infrared thermotherapeutic belt

3) 1×medicine introducing electrodes

4) 2×electrode cable

5) 1×electrode pad

6) 1×low frequency pulse feet acupuncture points therapeutic shoes

7) 1×Usage Instruction Index



Inner Packing:                Outer Packing:

Size:26*17*10cm            Size: 54*36*42.5cm

G.W.: 3.0kg                   G.W.: 35kg

24pcs/ark                      Qty/20' FCL: 400ctn; 3500pcs



P.S. Crust and accessories are producted by our company, so the product and accessories can choose environmental, fire-retardant materials. Plastic casing can choose to use ABS engineeting plastics and circuit board(PCB) and electronic components can be selected through ROSH certification natural lead material. In addition, we use environmental silica material to product accessories.
