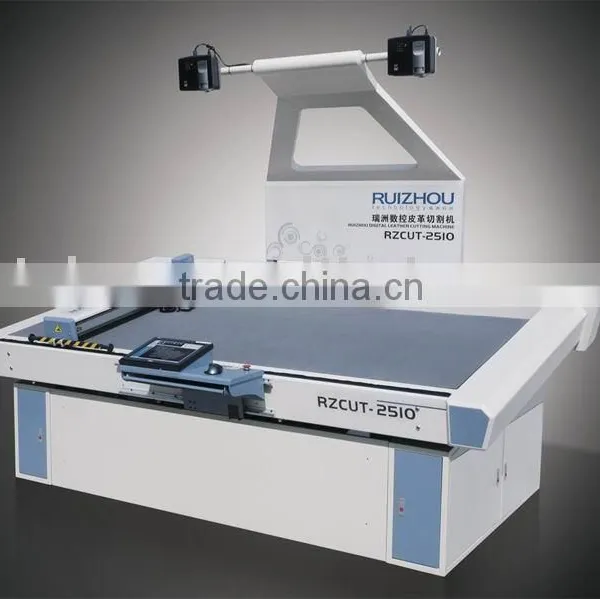

Digital Vibrating Knife Leather Cutting Machine

Specifications

Ruizhou leather cutting machine is a professional leather pattern cutter, saving materials, time and cost when improving quality

Ruizhou Digital Cutting System, a professional digital cutter. With this machine, you can conduct rapid nesting and efficient cutting operation, while saving time, manpower and material. It is designed for sample cutting and small bulk production, specially providing a revolutionary cutting solution for footwear, case and bag, car and plane chair, furniture and apparel industries.





Product Advantages

• It adopts vibrating knife cutting technology, without having to forge die cutter, which saves the cost and the time on making die cutter, management and storage of die cutter during the process of production. It enables you to grow out of the traditional technique of manual cutting forever. And it completely broke through the bottleneck that the enterprises rely on skilled workers and enable the enterprise to take the lead to enter the non-die cutter digital processing era.
• It features multi-purpose tool head, highly integrating multiple sets of processing tools. It can carry out interactive cutting, punching, drawing in a single period of running time, providing a workflow of production.
• It can work out highly-challenged and complex patterns which the die cutter can not realize, thereby extends the designing space of the designer dramatically, creating new-style patterns which can’t be imitated by handwork and making your patterns more attractive, thus reach the level that the buzz word “creation can go as far as your imagination can reach” communicates.
• It can effectively identify flaws on leather by using the projector or camera to capture leather contour. And the user can adjust the cutting direction as he like in accordance with the texture of natural leather material, so as to increase the output of finished-products and reduce material loss; and eventually increase the effective rate of utilization of the materials.
• All operations are computerized by using computer to simulate the operation process exactly, which rules out the interference from the factors of the workers’ mood, knowledge, tiredness and other personal factors happened in traditional cutting, thus avoid hidden waste and increase the utilization rate of the materials.
• The user can make timely correction to the patterns, which avoid investing the time on developing and making samples, and meet the fast-changing market demands through quick sample making and error correction. You are supposed to achieve 2-3 days of time advantage over your competitors in terms of correction of the same kind of samples, thus helping you quickly seize the market opportunities.



Technical Parameter

Model		RZCUT-1410	RZCUT-2510
Cutting Area		1400*1000mm	2500*1000mm
Cutting Material		Natural Leather, Artificial Leather, Synthetic Materials, Cardboard
Working Performance		Cutting Speed: 1-1000mm/s      Material Clearance: ≥1mm Cutting thickness: 0.5-6mm   Acceleration: 0.05m/s2
Transmission Interface		Standard Serial Interface, Parallel Port
Command System		Language of HP-GL and GP-GL
Power Consumption	Host	AC220V±10%,50HZ
	Vacuum Air-pump	5.5KW,AC380V±10%,50HZ	9KW,AC380V±10%,50HZ
	Air compressor	1.5KW,AC220V±10%,50HZ
Hold-down Method		Vacuum Suction
Control System		Ruizhou Digital Leather Cutting System
Projector		Single	Double
Tool Head		The cutting module, the dual Punching module and pen module, controlled by Servo Motor
Cutting Tool		Blade: rotating blade, vibration blade (optional); Punch tool: diameter 1-5 mm; Pen
Vacuum Plate		Vacuum based on Cells
