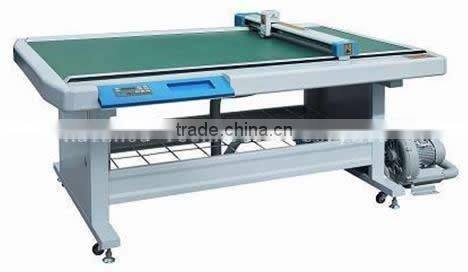

Suitcase Pattern Cutting Solution

Specifications

Ruizhou pattern cutting solution is a good choice for suitcase industry to create accurate samples on standard paper, cardboard.

Ruizhou flatbed cutting machine is specially developed cutting solution for footwear and garment industry. Based on vacuum-suction system, it is able to create accurate footwear and garment patterns on standard pattern paper, cardboard, or PVC sheet. With the introduction of servo motor, its high cutting speed helps you to improve your production efficiency dramatically.





WHAT ARE THE BENEFITS?



1. Easy to use



 * Ruizhou tables are easy to install and simple to set-up and use. The table is programmed for use with Ruizhou RECAD software, which apart from the manual adjustment for the depth of the knife, will reduce the need for hands-on setup of the table.



2. Saves time and money whilst improving quality



 * Eliminates the cost and time you spend cutting paper patterns and making brass bound pattern boards.



 * Greatly reduces the time taken to hand cut sample and graded paper patterns.



 * Consistent accuracy throughout, utilizing the Ruizhou RECAD software, any modifications to the pattern can be re-cut quickly and efficiently.



 * Reduces your lead times for samples, short production runs and overall pattern development time for both sampling and production, helping you to provide that 'quick response' your customer demands.



3. Flexible



 * When used with Ruizhou RECAD software, Ruizhou tables are designed to work in the background, cutting and/or plotting pattern pieces whist you continue to develop other 2D patterns.



WHAT ARE THE FEATURES?



1. Tool Head



 * A dual function tool head incorporating a trailing knife and pen, which is especially suited for cutting pattern paper and up to 2mm cardboard.



2. Compatibility



 * Connectible to common CAD software, widely used for design and manufacture of footwear, apparel, suitcases, bags, lamps and automobile leatherwares.



TECHNOLOGICAL SPECIFICATION



Available Model	RZCAM-S1209A	RZCAM-S1509A	RZCAM-S1512A	RZCAM-S1812A
Working Area	1200*920mm	1500*920mm	1500*1200mm	1800*1200mm
Cutting Materials	Paper, Cardboard, Plastic board, Rubber board, Fiber sheet (up to 2mm)
Working Performance	Cutting Speed: 1200mm/s (Max.)
	Cutting Thickness: 2mm
	Mechanical Resolution: 0.07mm
Blade and Pen Type	Blade: wolfram steel;
	Pens: water-based fibertip, oil-based ballpoint, disposable ink pen.
Mat. hold-down method	Vacuum Suction
Software Resolution	0.025mm  0.01mm  0.1mm  optional
Interface	Standard parallel port or serial port
Command System	HP-GL and GP-GL compatible mode
Power Consumption	Machine: 200W AC 220±10%,50HZ
	Vacuum Pump: 1100W AC 220±10%,50HZ
Feeding Mode	Manual Feeding
