Aircraft Snow Plow S560

Aircraft Snow Plow S560 photo-1
Aircraft Snow Plow S560 photo-2
Aircraft Snow Plow S560 photo-3
Aircraft Snow Plow S560 photo-4
Aircraft Snow Plow S560 photo-5
Aircraft Snow Plow S560 photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
camel
Model Number:
S560
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Tianjin, China
Brand Name camel
Model Number S560

Specifications

Aircraft Snow Plow S560
Standard commercial chassis with modifiation, 4 wheels drive, 4 wheels drive Gross Vehocle weight 8150

Aircraft Snow Plow

Camel S560 airport sweeper features extra wide moldboard plow, higher drive speed, and stronger air blower, which provides an excellent option for such demanding user who value efficiency and performance. The superbly engineered S560 takes multitasking to a new level, combining the efficiency of a snow plow, sweeper and air-jet blower all in one unit

Features:
1.All S560 units are manufactured to the highest standards of quality for operator ergonomics, safety and reliability.

2.With the capability of operating at 50 KM/H, the S560 minimizes runway occupancy times and keeps your airfield open longer.

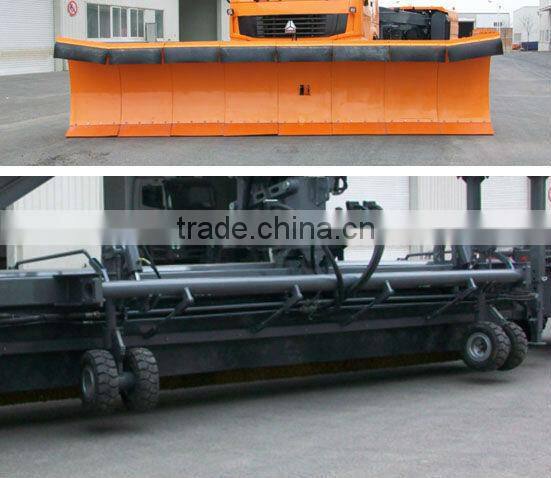

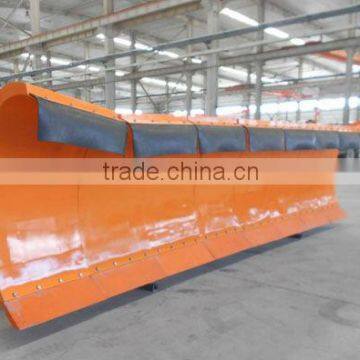

3.Plow – innovative 30ft self-adjusting, polyethylene moldboard plow, with independent spring-loaded cutting edge segments to maintain maximum contact area.

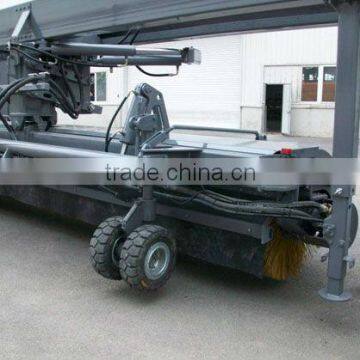

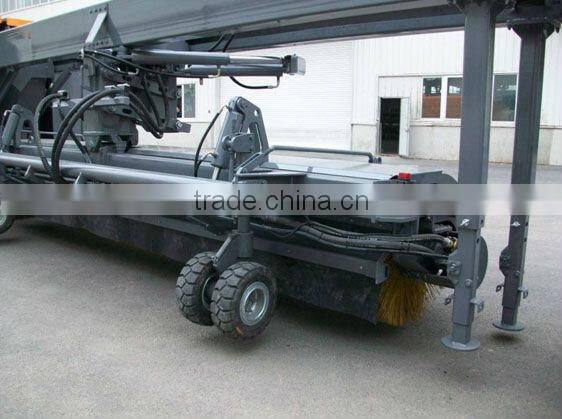

4.Broom – 5600 mm long, 980 mm diameter wafer system provides increased performance and flexibility to use steel or polypropylene wafers. The broom can be stowed in the transport position, allowing for easy storage in any maintenance facility.
5.Blower – super strong air blast at the rear of the unit removes any remnants from the surface.
6.S560 with a 5-meter clearing width, are major time-savers, since an entire runway can be cleared in one sweep.
7.The modular system S560 consists of 4 main module groups. From these groups it is possible to build solutions and interchange units to satisfy the various, changing needs of an airport. This makes S560 the natural choice of provider for airport snow removal equipment..

Operating Performance

Overall dimensions (LxWxH)

17080mm×2500mm×3500mm (working)

20200mm×6400mm×3500mm (transportation)

Gross vehicle weight

23500kg

Drive speed

30km/h, max. 50km/h



Standard Equipment



1. Chassis



Chassis

Standard commercial chassis with modification, 4 wheels drive, 4 wheels drive

Gross Vehocle weight

8150 kg

Wheelbase

6000 mm

Overall dimensions (LxWxH)

9645×2548×3705

Drive Speed

Max. 75 km/h

engine

WD615.96C, 276 kW

Displacement

9.726L

Tire

12.00R20

2.Plow



Plow height

1300/1450 mm

Plow width

6400 mm

Plow swivel angle/width

30°/5420 mm

3.Rotary Brush



Brush diameter

980 mm

Brush length

5600 mm

Brush swivel angle/width

32°/4750 mm

4. Blower



Air Volume

36000 m3/h

Air speed

145m/s

Air flow direction

Left or right

5. Auxiliary engine



Auxiliary Engine Model

Deutz TCD2015V06 315KW

Fuel Tank Capacity

600L



Option
Fleet manager
360°vision system

Aircraft Snow Plow S560Aircraft Snow Plow S560Aircraft Snow Plow S560Aircraft Snow Plow S560
