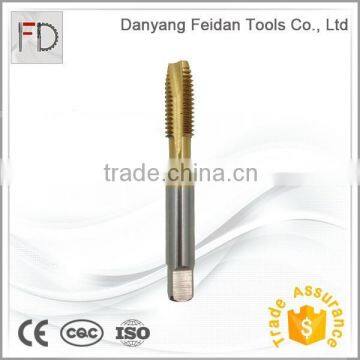

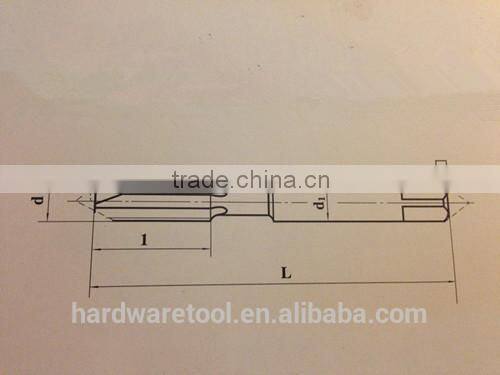

ANSI standard specification
| Coarse Thread:UNC | Fine Thread:UNF | ||||||||||
| size | d | d1 | l | L | ◊ | size | d | d1 | l | L | ◊ |
| NO.5-40 | 3.175 | 3.58 | 15.88 | 49.21 | 2.79 | NO.5-44 | 3.175 | 3.58 | 15.88 | 49.21 | 2.79 |
| NO.6-32 | 3.505 | 3.58 | 17.46 | 50.80 | 2.79 | NO.6-40 | 3.505 | 3.58 | 17.46 | 50.80 | 2.79 |
| NO.8-32 | 4.166 | 4.27 | 19.05 | 53.98 | 3.33 | NO.8-36 | 4.166 | 4.27 | 19.05 | 53.98 | 3.33 |
| NO.10-24 | 4.826 | 4.93 | 22.23 | 60.33 | 3.86 | NO.10-32 | 4.826 | 4.93 | 22.23 | 60.33 | 3.86 |
| NO.12-24 | 5.486 | 5.59 | 23.81 | 60.33 | 4.19 | NO.12-28 | 5.486 | 5.59 | 23.81 | 60.33 | 4.19 |
| 1/4-20 | 6.350 | 6.48 | 25.40 | 63.50 | 4.85 | 1/4-28 | 6.350 | 6.48 | 25.40 | 63.50 | 4.85 |
| 5/16-18 | 7.938 | 8.08 | 29.63 | 69.06 | 6.05 | 5/16-28 | 7.938 | 8.08 | 29.63 | 69.06 | 6.05 |
| 3/8-16 | 9.525 | 9.68 | 31.75 | 74.61 | 7.26 | 3/8-24 | 9.525 | 9.68 | 31.75 | 74.61 | 7.26 |
| Coarse Thread:UNC | Fine Thread:UNF | ||||||||||
| size | d | d1 | l | L | ◊ | size | d | d1 | l | L | ◊ |
| 7/16-14 | 11.112 | 8.20 | 30.51 | 76.99 | 6.15 | 7/16-20 | 11.112 | 8.20 | 30.51 | 76.99 | 6.15 |
| 1/2-13 | 12.700 | 9.32 | 42.07 | 79.38 | 6.99 | 1/2-20 | 12.700 | 9.32 | 42.07 | 79.38 | 6.99 |
| 9/16-12 | 14.288 | 10.90 | 42.07 | 91.28 | 8.18 | 9/16-18 | 14.288 | 10.90 | 42.07 | 91.28 | 8.18 |
| 5/8-11 | 15.875 | 12.19 | 46.04 | 96.84 | 9.14 | 5/8-18 | 15.875 | 12.19 | 46.04 | 96.84 | 9.14 |
| 3/4-10 | 19.050 | 14.99 | 50.80 | 107.95 | 11.23 | 3/4-16 | 19.050 | 14.99 | 50.80 | 107.95 | 11.23 |
| 7/8-9 | 22.225 | 17.70 | 56.36 | 119.06 | 13.28 | 7/8-14 | 22.225 | 17.70 | 56.36 | 119.06 | 13.28 |
| 1-8 | 25.400 | 20.32 | 63.50 | 130.18 | 15.24 | 1-12 | 25.400 | 20.32 | 63.50 | 130.18 | 15.24 |
