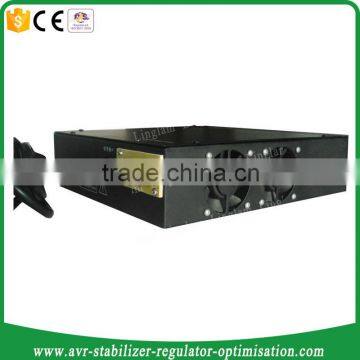

ac to dc volts supply

Items

Parameters

Power Range

500W-500KW

AC & DC Compatible Input

Single Phase: 220VAC±15%; 230~330VDC

Three Phase: 380VAC±10%; 450~600VDC

Note

Power below 5000W, default input voltage is 220VAC, 380VAC and other voltage can be customized.

Power above 5000W, default input voltage is 380VAC, 220VAC and other voltage can be customized.

Output Voltage & Current

Any range within 0-1500V and 0-2000A can be customized

Output Adjustable Range

Both constant voltage and current value are 0~100% adjustable

Working Frequency

(45~65)Hz

Source Voltage Regulation

Constant voltage≤0.2%

Load Regulation

Constant voltage≤1%

Constant current≤2%

Line Regulation

Constant voltage≤0.3%

Ripple Voltage

Total Ripple Voltage Vpp≤2% (Max.) (60V*2%=1.2V)

100Hz Ripple Voltage Vpp≤0.5%(Max.) (60V*0.5%=0.3V)

Efficiency

≥89%

Digital Display

Output voltage and current respectively & individually displayed

Output voltage display accuracy: +/-1.5%

Output current display accuracy: +/-2.0%

Insulation Resistance

Input - Output: ≥50MΩ

Input - Enclosure: ≥50MΩ

Output - Enclosure: ≥80MΩ

Insulating Strength

Input - Output: 1500VAC, 10mA, 1minute

Input - Enclosure: 1500VAC, 10mA, 1minute

Output - Enclosure: 1500VAC, 10mA, 1minute

Current-Unbalance

≤5% + 2.5A

Protections

Build-in temperature control cooling fan. It can not only effectively dissipates heat, but also effectively prolongs the lifespan of fan.

Over-temperature. The unit will shutdown automatically.

Output over-voltage, over-current and short-circuit protection

Start-up with delay and soft start.

It avoids high output voltage striking.

Over-temperature Protection

(75~85)℃

MTTF

≥50000h

Heat Dissipation Duct

Internal heat dissipation duct (left in and right out) or (front in and back out)

Ambient Conditions

Storage Temperature: (-40~70)℃

Working Temperature: (-20~50)℃

Relative Humidity: 90% (40±2℃)

Atmospheric Pressure: (70~106)kPa

Communication

Broadcasting Station

Scientific Research

Telecom and IT Industry

Aerospace Industry

New energy R&D

Electrical Engineering & Electronics

Components Aging

Industrial Control Equipment

DC Motor Drive & Test

Tools And Production Line Power

Water Treatment

Electroplate & Electrolysis

Battery Charge

Electric Vehicle Charge

Factory Automation

Quality Inspection
