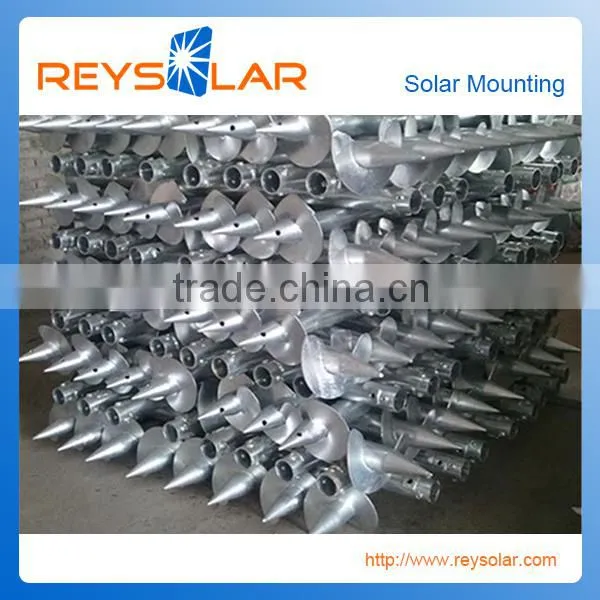

Hot dip galvanized solar ground screw

 1. Item Name: High Quality Solar Module Galvanized Steel Power Ground Screw for solar panel racking

2. Item No. :  RY.GS-0711

3. Application:

• Solar Power System
• City and Parks
• Fencing Systems
• Road and Traffic
• Sheds and Containers
• Flag Poles and Marks
• Garden, Board, Banner, Containers and Sheds etc.

4. Ground screw features:

Conical shape and the bottom art as spiral fins, similar principle of screw, use mechaniacal equipment or wrench slowly put the screws into underground, with operation more convenient and energy efficient. The bottom part with open spiral fin, expanding the diameter of the pipe, increase the contact area with the soil and strengthen the contact with the soil, leading to better stability for the ground screws.

5. Other types of ground screws:

• The first one is non-flange ground screw, fixing with screw-nuts, no flange at the end part. Use a nut, three of four nuts to fix the ground screws to the solar mounting system. The cost of his type is lower, and it is simple and convenient to adjust the installation height. The requests for the height and the smoothness are not very accurate.
• The second type is the flange ground screw, fixed via convenient flange connection; The disadvantae is need to guarantee the flange keeping even, strictly requiringthe ground screw height and precision.

6. Technical Data

7. Main Features

• Large range of applications: The features of 100% aluminum production structure, light weight, high strength, and good corrosion resistance make the product can be applied to very harsh installation environment.

• Compatibility: Suitable for different specifications of PV modules, and the modules can be applied in different ways of arrangement, enabling random swap.

• Safety and reliability: With consideration to the load-bearing, wind, earthquake and other factors, and with rigorous calculation and testing the structure ensures safety and reliability.

• Easy installation: Most of the parts can be pre-assembled, improving the efficiency of on-site installation, and saving time and labor costs for the construction of photovoltaic projects.

• Flexibility and adjustability: Considering of probable construction deviation, the structure is cleverly designed with a flexible regulatory function. The system foundation position errors can be solved by the unique structure of the regulatory function, reducing the difficulty of construction.

8. Test Report

9. Standard Packing

 10. About us

Reysolar are a high-tech company in the solar photovoltaic industry, specializing for solar mounting system R&D, production, sales and service. Reysolar are a6000m² manufactory of the Solar Photovoltaic Mounting System supplier which founded in 2002. Reysolar own 300MW production capacity in providing Solar PV Mounting. We Had Cooperate with a Jordan Company for a 1.6MW and other big company in Euro, Asia, Africa.

11. Fair Show

12. Contact Us

Skype: Zoe Teen--Reysolar

Tel/Fax: +86-592-5668256-807

Mob / Whatsapp : +86-137-9975-0372

Address: 403# Nanshan Rd, Huli District, Xiamen, China 361006
