140degree viewing angle led screen shenzhen china
140degree viewing angle led screen shenzhen china are specifically designed for fixed installations in Bussiness Center,Plaza,Shopping mall,Theme Park,Government Project,Airport,Train/Bus Station,Stadium,Expo Center etc. And with the ability to shape our LED display to any size or shape, you can place them anywhere to achieve maximum exposure. You’re viewing audience will not only engage your content – they’ll embrace it.
140degree viewing angle led screen shenzhen china has following advantages:
High Brightness with Low Luminous Decay
Adopted high quality LED to make sure the brightness always in a high level, FO series can produce crystal clear images in virtually any lighting conditions, even in the sun directly.
Stable and Reliable with IP65 Rating
FO Series has successfully passed Environmental reliability test and waterproof test, which proved that this product can withstand the most strict weather conditions.

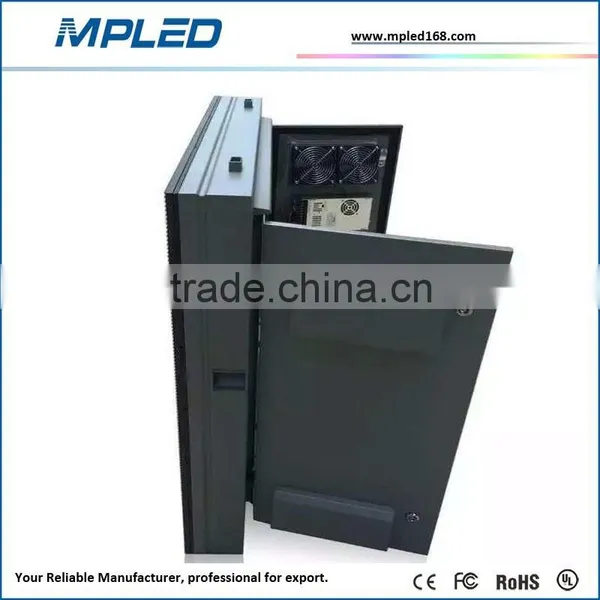

Good Heat Dissipation with Scientific Structure Design
Enough space with 4 high efficient fans increase dissipation capability, ensure the stability and reliability even for long time continuous use, and prolong the lifespan of the led display.
High Quality Raw Material
140degree viewing angle led screen shenzhen china adopts Taiwan MBI IC + Epistar Chip + Meanwell Power Supply
| LED Module | |||
| Dimensions (w x h) | 320mmx160mm | Resolution (w x h) | 32x 16 |
| Pixel pitch | 10mm | Pixel Density | 10000/m2 |
| LED Chip | Epistar | Pixel Configuration | DIP 3 IN 1 |

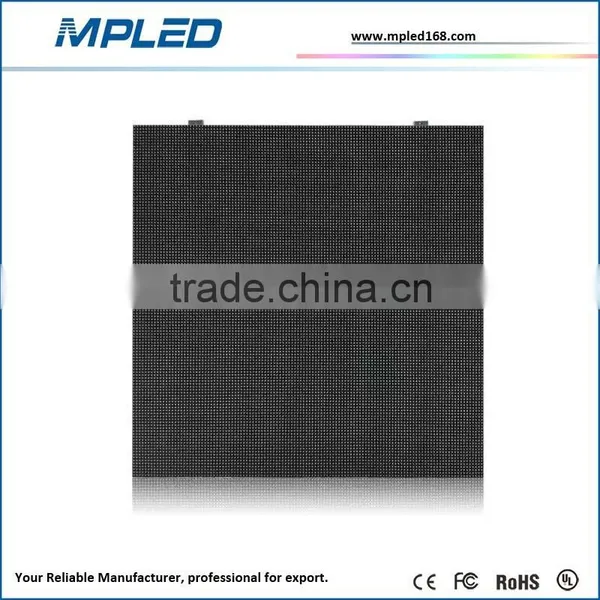

| Standard Panel | |||
| Dimensions(w x h x d)(mm) | 960x 960 x145 | Module Quantity | 18 |
| Physical Resolution (w x h)(dots) | 96 x 96 | Physical Pixels (dots) | 9216/cabinet |
| Weight/Panel (kgs) | 51 | Material | Steel |
| Average Power/sqm (watts) | 240 | Max Power/sqm(watts) | 800 |
| Parameter | Value | ||
| Brightness | 8000 cd/m2 | ||
| Viewing Angle | Horizontal 140 deg. Vertical 120 deg. | ||
| Minimum Viewing Distance | 10meters | ||
| Brightness Control | 256 levels | ||
| Gray Scale | 16 bit | ||
| Refresh Rate | >1200Hz | ||
| Driving Mode | 1/4 Scan | ||
| Input Power Frequency | 50 or 60 Hertz | ||
| Input Voltage | 110-240 Volt | ||
| Blind Spot Rate | <1/10,000 | ||
| Lifetime at 50% Brightness | 100,000 hours | ||
| IP Rating | IP65 | ||
| Operating Temperature | -20 ~ +50 OC | ||
| Operating Humidity | 10% ~ 90% | ||
| Control Distance | CAT5 cable:<100 m; Single mode fiber:<10 km | ||
| Signal Input Format | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | ||
| Operating System | Windows (2000/XP/Vista/7) | ||

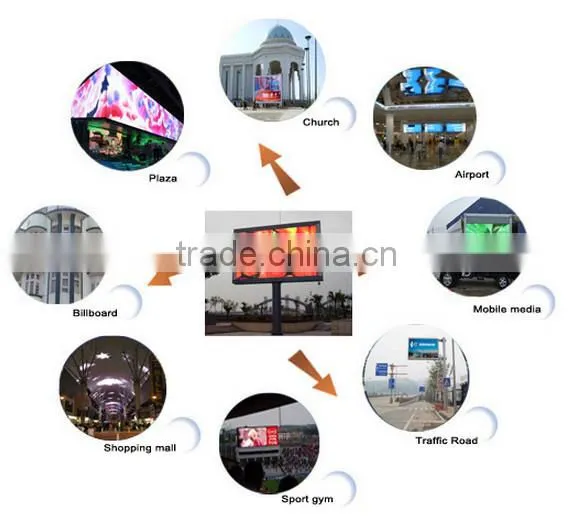

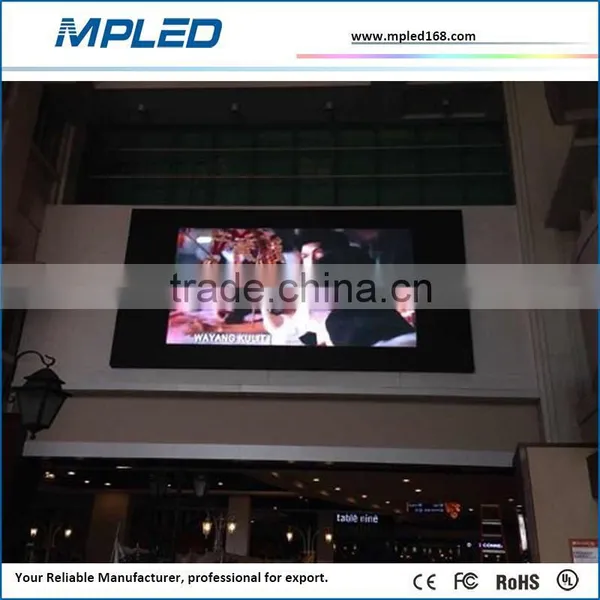

140degree viewing angle led screen shenzhen china mainly use for outdoor advertising,such as Bussiness Center,Plaza,Shopping mall,Theme Park,Government Project,Airport,Train/Bus Station,Stadium,Expo Center etc

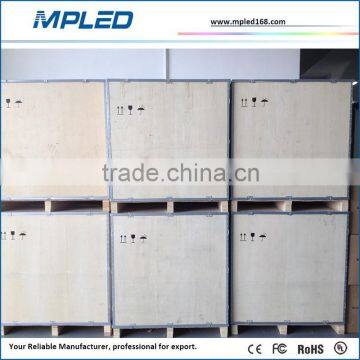

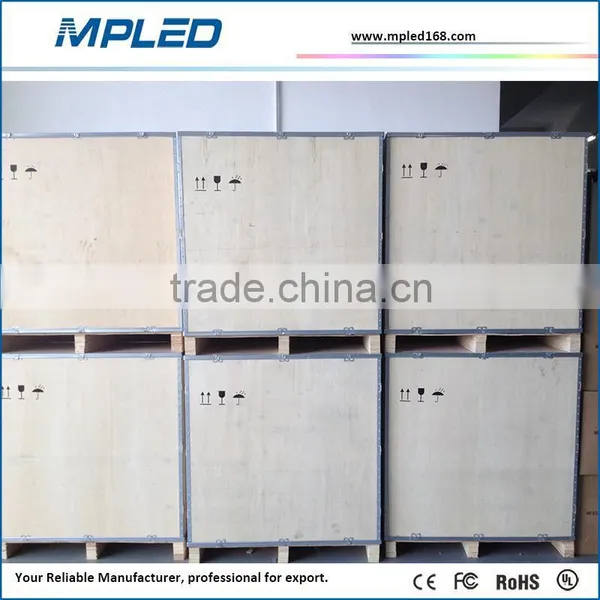

1) Corrugated Carton Package-- Economic option for fixed installation.
2) Plywood case--Fix installation--5-9 panels per case as customized
3) Flight case-- Rental Purpose--5-9 panels per case as customized

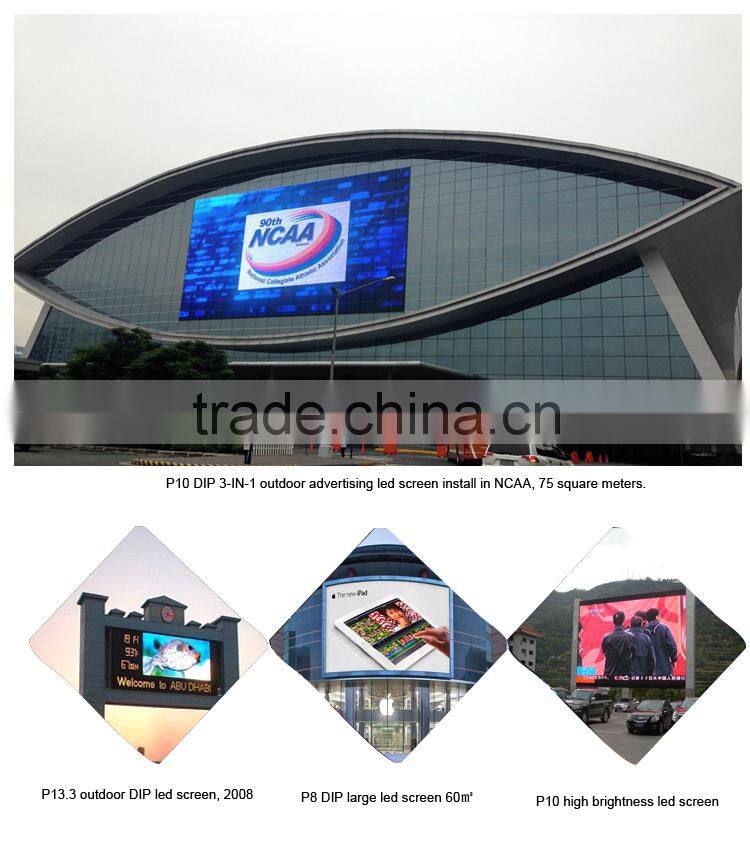

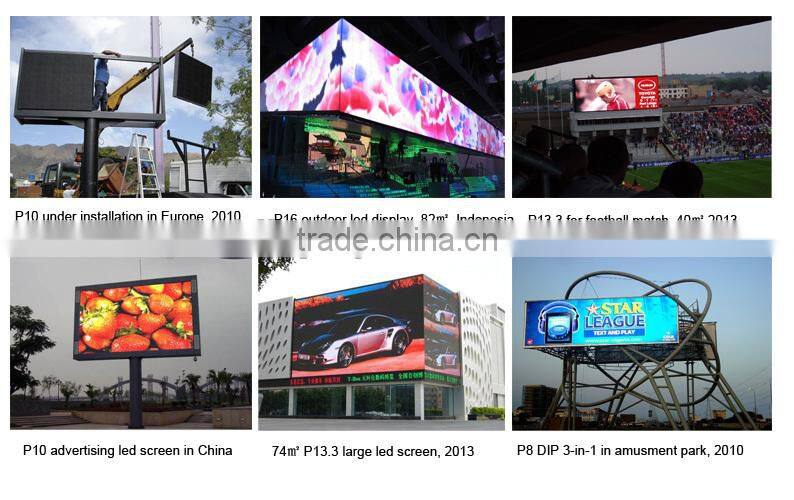

140degree viewing angle led screen shenzhen china have been export to more than 100 countries and areas
USA, Mexico, Brazil, Chile, UK, Germany, France, Sweden, Italy, Belgium, Russia, Poland, Croatia, South Africa, Egypt, UAE, Saudi Arabia, Indonesia, Singapore, Thailand, Malaysia, etc.
1. May I know the MOQ your 140degree viewing angle led screen shenzhen china ?
----For sample test,accept 1sqm as MOQ
----If you want the display board to show video,suggest MOQ Size is 1920x1920mm

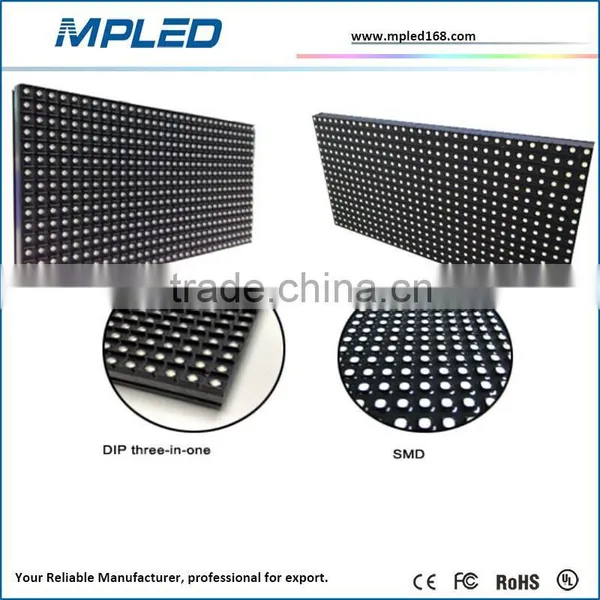

2. What's the difference of DIP(1R1G1B) and DIP(3 in 1) ?
DIP(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
DIP 3-IN-1 has the advantanges of both DIP346 and SMD 3-in1, but avoiding their shortcomings.
----DIP(3 in 1), reduced the LED Lamp on the screens, it reduced grainy of the screen, and improve the uniform of the screen, which will make the screen have a more wide viewing angle and smooth image.
----Keeps the high brightness for outdoor advertising.
Becuase it adopted advanced technology of DIP and SMD, so it can keep the high brightness of the screen. Much high brightness than SMD Screens.
3. How long time I can get the cargos after placing the order ?
Our production time is about 7~ 15 working days;
When we confirmed the order, after we get your deposit, we can start production, we will update the production details in time; Before finish, we will notice you and after we get full payment, we can delivery the goods to you.
About the time from start port to destination, that depends on the distance and the state of the sea company or airport company.
4. May I know the package details?
1 package 2 cabinet,package size is W:1.040xH:1.140xD:0.410m=0.486cbm
