Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Milky Way | Model Number: | Substation |
Product Description

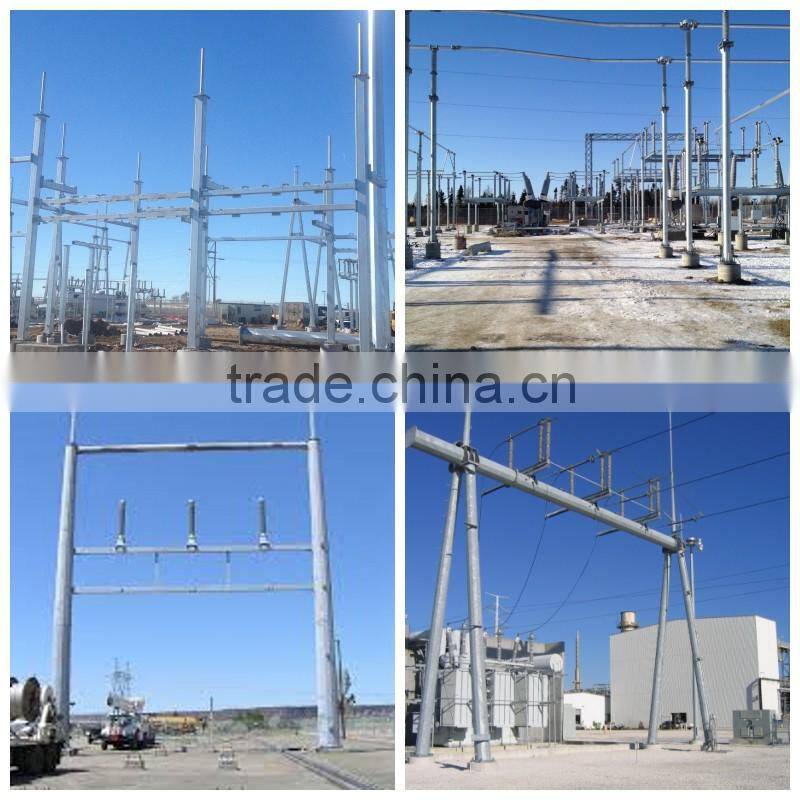

Steel structure Transformer electric substation equipment
Substation Structures
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on
Part No | Steel structure Transformer electric substation equipment |
Voltage | 11kv to 220kv |
Suit for | Substation |
Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 |
Strength | High Tensile |
Torlance of the dimenstion | +- 2% |
Optical assembly of lighting fixture | IP 65 |
Electroshock resistant protective grade | Grde I |
The casing anti-corrosion performance | Class Ⅱ |
Working atmosphere of lighting fixture | -35 ℃~+45 ℃ |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required |
Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
Design of pole | Against earthquake of 8 grade |
Wind Speed | 160km/hour |
Minimum yield strength | 335mpa |
Minimum ultimate tensile strength | 400mpa |
Max ultimate tensile strength | 620mpa |
Standard | ISO9001 |
Length of per section | Within 14m once forming without slip joint |
Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape |
Thickness | 1mm to 30mm |
Production Process | Raw material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
Packages | Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
Style | Size and styles are veriable as per customer request |
As an BV ,ISO ,SGS approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .
Material
All of our material are purchased from famous mill factory to assure the quality
- A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
- Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.
Inspection
To assure our products qualified ,we take steps as follows :
1. Management team : We have employ the foreign export to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .
2.Introducing ISO management ,We are awared ISO 9001:2008 certificate . .
3.QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment
Design and Detail
Lofting and design software :We have transmisson power pole design software which can help us design all kinds of steel pole ,at the same time ,the TMA and LMA are adopted by us to provide the design the drawing accuratly
Project
We have completed many big and important project all over the world and win the trust of our client
1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
2. MOQ: 1 sets for Customized
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit.
5 Warranty : 30 years
6.Surface treatment :hot dip galvanization
Application:
Q1. How can I get a price of needed pole? |
A: 1. Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can according to your specification give you a similar price. |
Q2. I am a small wholesaler, do you accept small order? |
A: It's no problem if you are a small wholesaler; we would like to grow up with you together. |
Q3. I am a designer; Can you help me to produce the sample which we designed? |
A: Our mission is to help customers to be successful. So it's welcome if we can help you solve problem and make your design come true. |
Q4. We want be your agent of our area. How to apply for this? |
A: Please send your idea and your profile to delia @yin-he.com |
Q5. Tell me about your company? |
A:Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a manufacturer and exporter of all kinds of steel poles, including street lighting pole, power transmission pole, floodlighting pole for large squares and other steel products since 1991.Our poles have been exported to more than 70 countries and areas. |
Q6. Do you have some special policies for Brand company? |
A:Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year. So we can see how to support you for your products in your market. |
Q7. Can you make Door to Door service? Because i don't know how to do customs clearance. |
A:Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because we have do much of this every day. So it will save your time also money. |
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.
7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
