Home > Products > Rework Equipment > QUICK 381A vacuum pickup for bga rework system machine
QUICK 381A vacuum pickup for bga rework system machine
- 100 Piece / Pieces per Month
- Shanghai Port
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | QUICK | Model Number: | QUICK 381A |
Voltage: | 110V/220V | Current: | N/A | Rated Capacity: | N/A |
Rated Duty Cycle: | N/A | Dimensions: | 130*160*110mm | Weight: | 1.55kg |
Usage: | Desoldering | Certification: | ISO9001 | After-sales Service Provided: | Overseas third-party support available |
Product Description

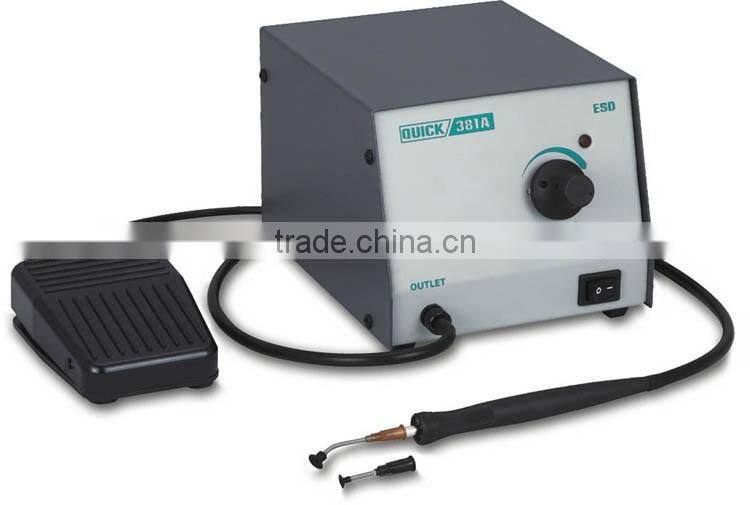

QUICK 381A vacuum pickup for bga rework system machine
Festures of QUICK 381A vacuum pickup for rework equipment:
1.ESD safe by design,no damage to sensitive components.
2.Scientificially design of suction pen,light structure.
3.vacuum suction stepless adjustable,single suction pen,powerful suction force can rech to 120g.
4.can control the pick-up and palcing of chips accurately and effectively,avoid shaking when placing.
5.pedal switch control,save energy.
6.suction nozzles and pads can be used together and interchangeable.
Specifications:
Power | 7W |
Vacuum pump | Diaphragm |
Max vacuum | 0.06M Pa |
Suction pad | Conduction silicon rubber |
Dimensions | 130(L)*160(W)*110(H)mm |
Weight | about 1.55kg |
There are many other soldering rework station products,please kindly see below.
If there is any model you like,please feel free to contact with us!
QUICK , as a leading company of soldering station products,has got CE certificates for most of our products,and also approved ISO9001 & ISO14001.
Established in 1994 and located in Changzhou,QUICK Soldering has grown to be the leading manufacturer of soldering station equipments and other productions in China.It is widely recognized as a comprehensive solution provider in eletronics assembly industry.
QUICK Soldering takes pride in its professional teams of R&D,manufacturing and sales.ISO9001 Quality Management and ISO14001 Environment Protection System are both implemented to improve and perfect it in all aspects.
Nowadays,QUICK products consists of various types of soldering equipments,such as solderingstation,rework soldering station,soldering robot,laser soldering robot,quantitative solder melting&dropping soldering robot,infrared&hot air BGA rework system and other related equipments like dispensing robot,screwing robot,fume extractor,static eliminator etc.Automantic assembly lines combined with soldering,dispensing,screwing,AOI and jig-returing etc can also be customized as per different applications.
QUICK Soldering adheres to the principle of providing customers with superior quality products at reasonable prices and excellent services.As it dis in the past,QUICK Soldering will continue to offer customers an sll-round support in future.It's the sincere wish to establish a long term business relationship with customers who are interested in the products.
OUR WORKSHOP & SHOWROOM:
1.We are the largest and most professional manufacturer of soldering station products.
2.Our company has passed ISO9001 & ISO14001.
3.Over 60 R&D engineers, with more than 20 years experience.
4.Have global users in many countries such as Korea,Vietnam,India,Mexico,Brazil,North Africa,European countries etc.
5.High quality & competitive price.
6.Most products have CE certificates.
7.100% NEW from QUICK factory.
8.100% QC inspect before shipment.
9.OEM is acceptable.
All products purchased in QUICK are tested and guaranteed to keep in good quality with one year warranty excluding consumable parts. If quality problems happen in guarantee period,our company provides technical supports and fittings.Our local distributor will help to solve your problems timely after receiving telephone or emails. If you are caught in some problems when using our products, welcome to contact us at any time.
QUICK is a leading company which is specialized in providing soldering station and other electronic soldering equipments.
If there is anything you'd like to know,please contact us without hesitation.
