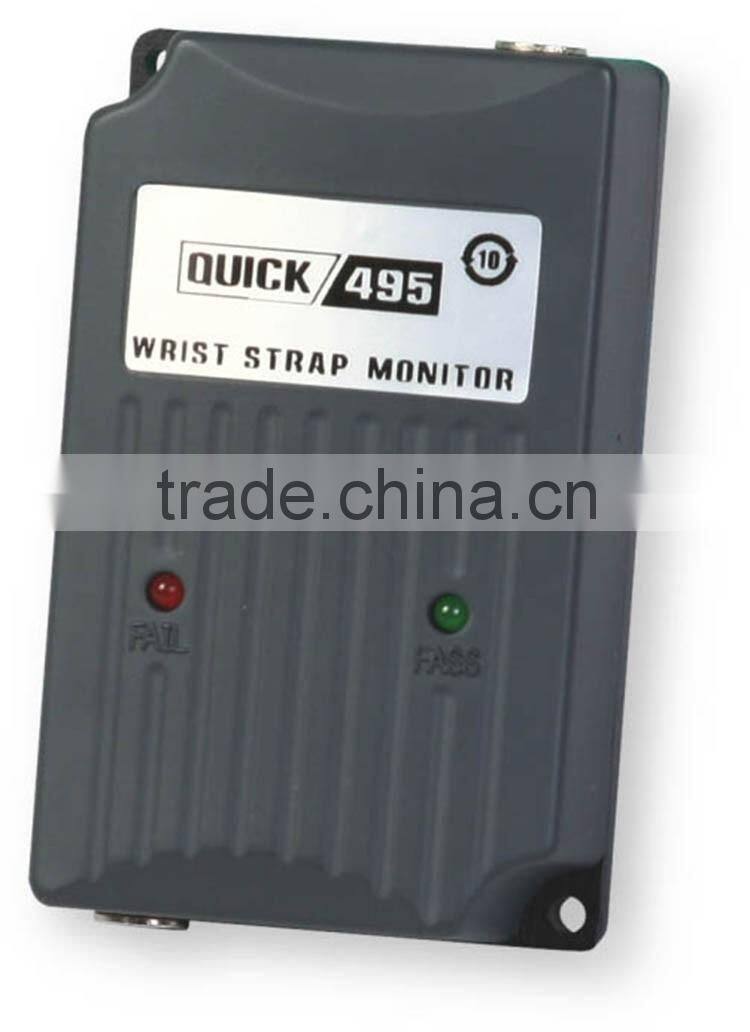

QUICK 495/495B double wrist strap monitor
Festures of QUICK 495/495B double wrist strap monitor:
1.can monitor ESD wrist strap and grounding sitiation continuously,suitable for applications which require good anti-static status.
2.ensure static charges to be eliminated from human body by real-time monitoring,and decrease damage by static charge.
pact design,easy operation.
Specifications:
| Input voltage | DC 6-12V |
| Working current | <50mA(DC 12V) |
| Dimensions | 75(L)*46(W)*27(H)mm |
| Weight | about 50g(exclude accessories) |
| Power supply | DC 6-12V(inductive trandformer) |
Test Parameters(of QUICK495B):
| Standard resistance | Indicator status |
| 675KΩ | Red(fail) |
| 825KΩ | Green(pass) |
| 9MΩ | Green(pass) |
| 11MΩ | Red(fail) |
