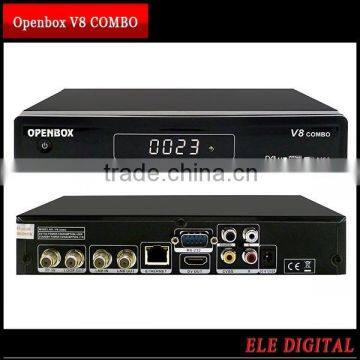

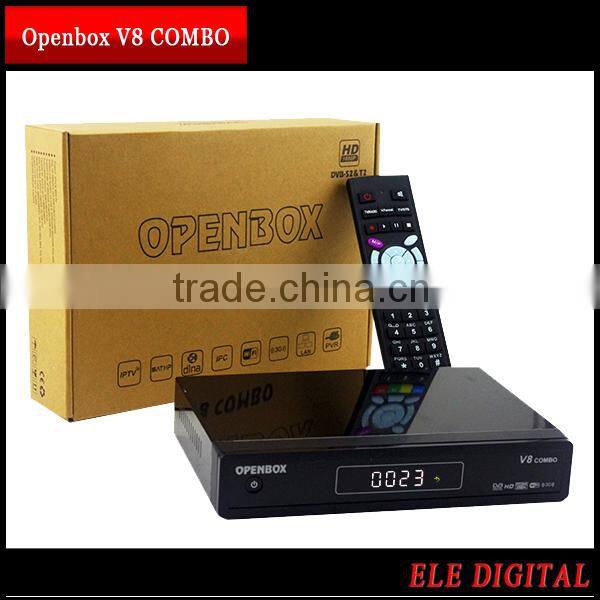

New Arrival !!! 1080P FULL HD DVB S2 & T2 Openbox v8 Combo hd Satellite tv Receiver With Best Price MOQ From 1 Piece
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
openbox
Model Number:
openbox V8 COMBO
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 New Arrival V26 DVBWORLD Combo HdtvNegotiableMOQ: 5 Pieces -
Hybox V26 DVBWORLD Combo Hdtv Satellite Receiver for North America With Jb200 Tuner Same With Jyazbox V16NegotiableMOQ: 5 Pieces
-
2016 New Arrival V26 DVBWORLD Combo Hdtv Satellite Receiver for North America With Jb200 Tuner Jyazbox V21NegotiableMOQ: 5 Pieces
-
2016 New Arrival DVBWORLD COMBO HD tv Receiver DVB-S2+TURBO for North America Support IPTV With Turbo 8psk JB200NegotiableMOQ: 5 Pieces
-
North America Satellite Receiver DVBWORLD Combo Hdtv With Jb200 Tuner, Jyazbox V21 V16,v20 ReceiverNegotiableMOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
openbox
Model Number
openbox V8 COMBO
FTA(Free To Air)
Yes
Type
Digital
High Definition
Yes
New arrival !!! 1080P FULL HD DVB S2 & T2 Openbox v8 combo hd satellite tv receiver with Best price MOQ from 1 piece
Specification:
| DVB COMBO S2&T2 | ||||
| I. Brief Function: | ||||
| 1, 1080P FULL HD DVB S2&T2 | ||||
| 2, CAS,USB,PVR Ready | ||||
| 3, DVB COMBO S2&T2 | ||||
| 4, Support Network Sharing,Twin Protocol | ||||

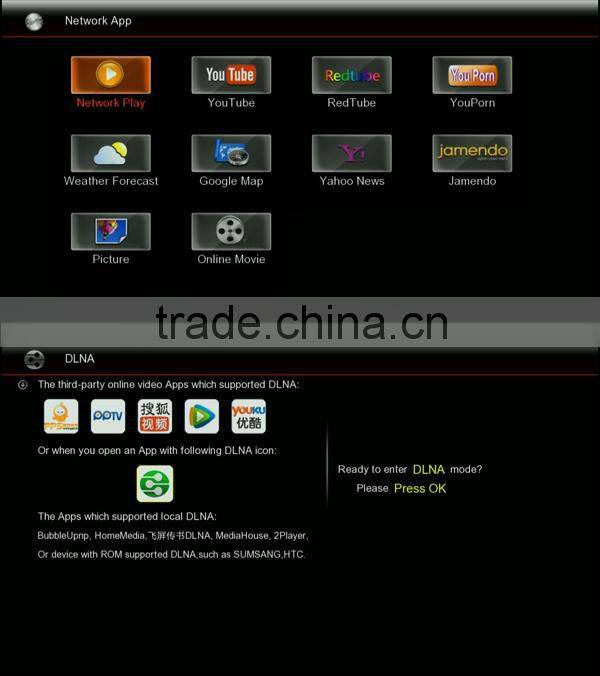

| 5, Support USB Wifi,Youtube,Youporn,Weather forecast,Google map,IPTV,3G | ||||
| Note: We reserve the right to change the design and OEM/ODM supported | ||||
| II. Detail in the product: | ||||
| Product Size (MM) | 220*151.5*40(L*W*H) | Packaging | 10pcs/ctn | |
| Panel display | Yes | Display Color | Green | |
| Button | Power/Menu/OK/CH+/CH-/VOL+/VOL- | |||
| USB | USB 2.0 High Speed Host | |||
| CAS | Card Reader support | |||
| IR | Exit IR for 38KHz | |||
| Output Interface | HDMI, RS232, ETHERNET, USB, CVBS+AUDIO L/R, Coaxial,RF Modulator(Ch. 21 fixed) | |||
| HDMI | HDMI(up to 1080P) output | |||
| III. Main Features: | ||||
| Standard | HD DVB-S2 ; HD DVB-T2 Complian | |||
| Encrypt | yes | |||
| RF Video Modulator | Option | |||
| GPRS Module | Option | |||
| Power Supply | Input 220V ~240V, 50/60Hz | |||
| Video Decode | MPEG-2 MPHL;MPEG4/H.264 BP MP&HPL4.1;AVS profileL6.1/4.0/2.0 | |||
| PAL/NTSC | Automatic PAL/NTSC conversion | |||
| Channels Number | 10000 channels TV and Radio programmable | |||
| Favorites | 8 different favorite groups selection | |||

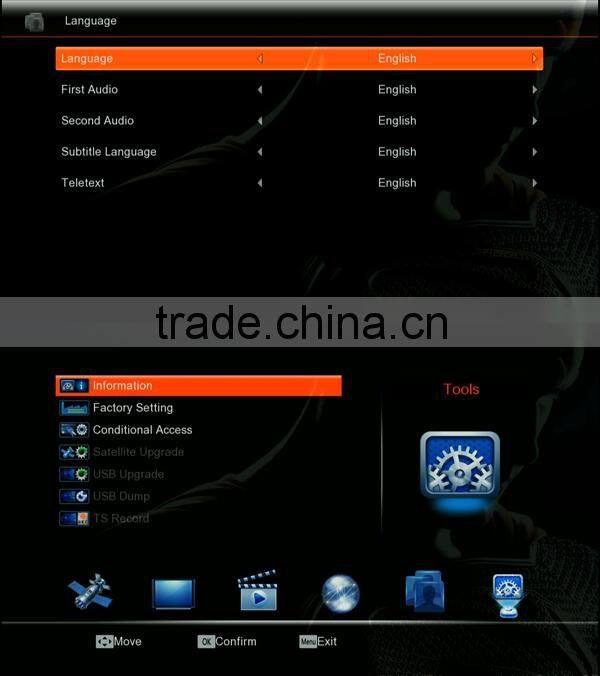

| OSD Language | English German French Portuguese Spanish Italian Russian Turkish Polish Arabic Farsi | |||
| EPG | Fully support to 7 days Electronic Program Guide(EPG) | |||
| Picture | JPEG,BMP,PNG,GIF Supported | |||
| OSD Color | 16-bit OSD with anti-flickering | |||

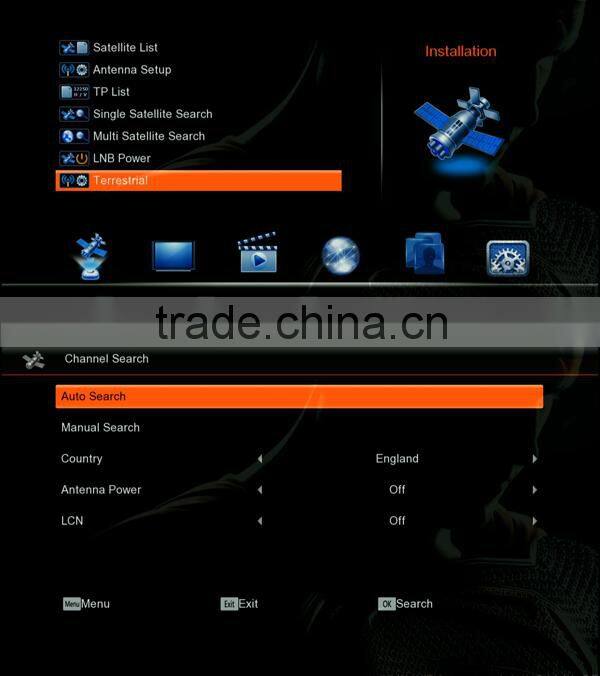

| Channel Search | Channel search in automatic, manual and network search | |||
| Channel Edit | Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) | |||
| Parental Ctrl | Parental control for channels | |||
| Easy Menu | Plug and Play installation, with an easy to use Menu System | |||
| SoftUpgrade | Software upgrade through USB | |||
| Time Set | Time set by GMT offset automatic and manual,Summer Time support | |||
| Timer | 5 event timers,off/Once/Daily/Weekly Mode | |||
| Subtitle | Subtitle support | |||
| Teletext | VBI insertion for Teletext,CC and WSS | |||
| Save Channel | Automatic save for last channel | |||

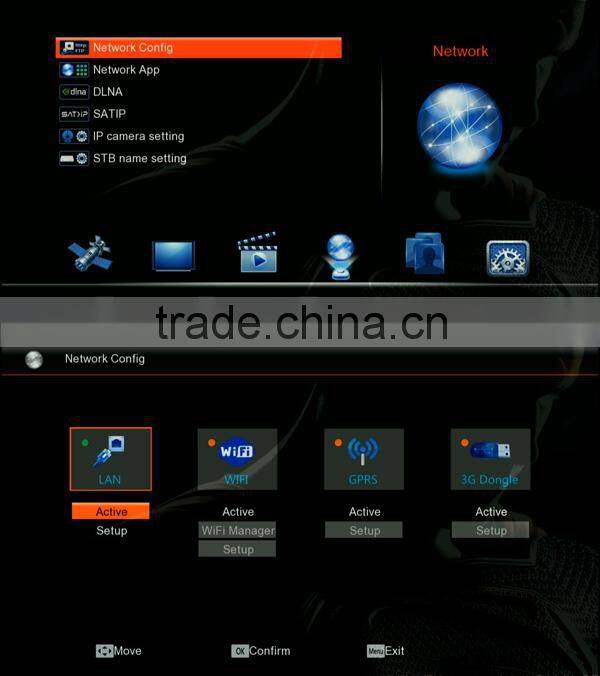

| Ethernet | Support RMII interface, Internet Sharing | |||
| RS232S | Support TWIN and Software upgrade | |||
| CAS | Smartcard reader built-in | |||
| IV.Electric Performance: | ||||
| 1.Memory Size: | ||||
| Flash Memory | 64MB Serial Flash | |||
| DDR2 Memory | 1GB | |||
| 2.DVB-S2 Part | ||||
| Input Frequency Range | 950MHZ-2150MHZ | |||
| RF input Signal LEVEL | -80/-20dBM | |||
| Active Ant Power | 13/18V DC 400mA MAX,Overload Protection | |||
| MPEG Profile Level | MPEG-2 MPHL;MPEG4/H.264 BP MP&HPL4.1;AVS profileL6.1/4.0/2.0 | |||
| Demodulation | QPSK,8PSK,16APSK,32APSK | |||
| DiSEqC Protocols | DiSEqC 1.0, 1.1, 1.2, 1.3 USALS Compatible | |||
| 3.DVB-T2 Part | ||||
| Input Frequency Range | 174~230MHz,470~862MHz | |||
| RF input Signal LEVEL | -15- -75dBm | |||
| MPEG Profile Level | MPEG2 SD, MPEG2 HD, H.264/AVC SD, H.264/AVC HD | |||
| Active Ant Power | 5V DC 100mA MAX,Overload Protection | |||
| Demodulation | QPSK,16QAM,64QAM,256QAM | |||
| OFDM Spectrum | 2K,4K, 8K,16K,32K | |||
| Band Width | 7MHz,8MHz | |||
| 4.USB Decode | ||||
| PVR | Support | |||

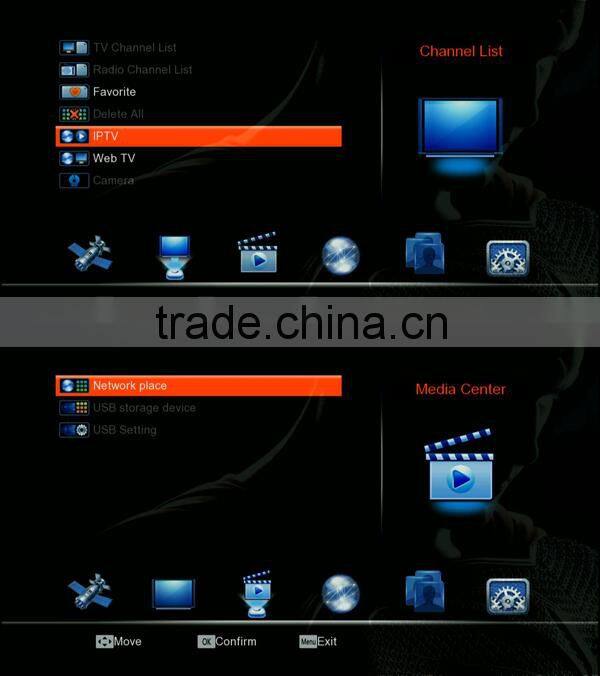

| Media Supporting | USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card | |||
| File system | FAT32, NTFS (only support first partition) | |||
| USB | PVR with USB HDD, Time shifting with USB HDD | |||
| 5.Multimedia support format | ||||
| movie | mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp | |||
| music | mp3 | |||
| photo | JPG, BMP, PNG, GIF | |||
| 6.Video Decode | ||||
| Video Decode | High Definition MPEG4 AVC/H.264 HPL4.1,MPEG-2 MPHL/ML | |||
| Aspect Ratio | Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box | |||
| 7.Audio Decode | ||||
| Audio Decode | MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC | |||
| Sound Mode | LEFT/RIGHT/STEREO/MONO | |||
| Sampling Frequency | 32KHz, 44.1KHz, 48KHz | |||
| 8.Environment | ||||
| Input Voltage | Input 220V ~240V, 50/60Hz | |||
| Consumption | 20W Max | |||
| Temperature | 0℃ to +50℃ | |||
| Humidity | <95% | |||
