Aoutomstic Aluminum Foil Sealing Machine for Medicine Bottles

Aoutomstic Aluminum Foil Sealing Machine for Medicine Bottles photo-1
Aoutomstic Aluminum Foil Sealing Machine for Medicine Bottles photo-2
Aoutomstic Aluminum Foil Sealing Machine for Medicine Bottles photo-3
Aoutomstic Aluminum Foil Sealing Machine for Medicine Bottles photo-4
Aoutomstic Aluminum Foil Sealing Machine for Medicine Bottles photo-5
Aoutomstic Aluminum Foil Sealing Machine for Medicine Bottles photo-6
US$ 1,000 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai sea port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type Case
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 4000W
Place of Origin Shanghai, China
Brand Name Xiaoteng
Model Number XT-4000B
Dimension(L*W*H) 500mm*500mm* 1090mm
Weight 60kg
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Applied range:

It is used for sealing plastic or glass bottles filled with farm chemical, medicine, food,cosmetics, grease, etc.

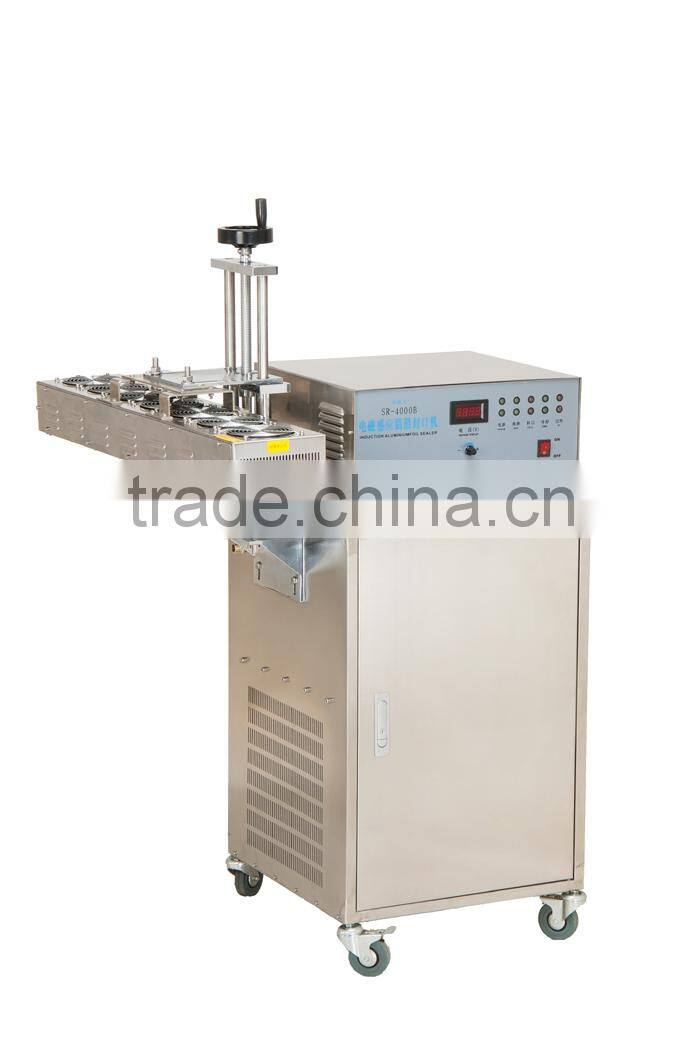

Aoutomstic aluminum foil sealing machine for medicine bottles



Aoutomstic aluminum foil sealing machine for medicine bottles





Features:



1. Brand-new modularized intellectualized design; dampproof, antiseptic, dustproof, electromagnetic interference prevention; long worklife, very low failure rate, simple maintenance.



2.  Producer of main body adopts imported transistor from America, which has modularized control with CPU and safety protection functions.



3.  It’s convenient to operate with panel showing all the functions.



4.  It has high sealing speed and great effect with 8 induction coils (they differ according to different sealing mouthes) and 7 draught fans of 220V.



5.  Full-wind-refrigerated heat-removal system can run 24 hours with high speed and great effect.



6.  It is made from stainless steel, conforming to GMP.



7.  It is convenient to matched with production line with movable body; pushing vehicle can be uninstalled from main body, so it is easy to transported.



8.  It is appropriate for mouth sealing for containers with any height with a height-adjustable inductive head.



9.  Inductive heads and main bodies are interconvertible among the same machine type, which reduces use-cost. It has been certified by CE.







NOTE: conveyor and bottle-mouth-withno-aluminum-foil-removing machine are optional parts.







Technology parameters:



Model

XT-4000B

Bottle neck diameter

20mm-80mm

 Bottle height

0-490mm

Applicable linear speed

0-20meter/S

Max.output power

4000W

Sealing speed

0-300blts/min

Power supply

4000W, 220V, 50/60Hz

Inductive head size(L*W*H)

880mm*175mm*100mm

Machine size

500mm*500mm* 1090mm

Machine weight

60kg

Packaged size

1070mm*815mm*665mm



Package weight

95kg













Company Information



Company view



Aoutomstic aluminum foil sealing machine for medicine bottles





Exihibition  Show



Aoutomstic aluminum foil sealing machine for medicine bottles

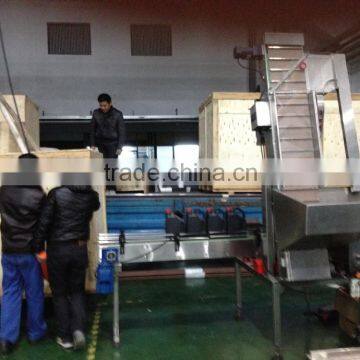

Packaging & Shipping
