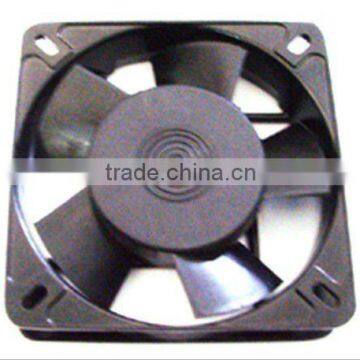

Offer XD13532 AC air cooling fan

FOB Price

USD $3.5 - $5.5 / Piece

200 Pieces(Min.Order)

Supply Ability 30000 Piece / Pieces per Month
Port Ningbo & Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Mounting	Other, mounting hole
Blade Material	Plastic	Place of Origin	Zhejiang, China
Brand Name	XINDAFAN	Model Number	XD13532
Voltage	220v	Power	17.6/15.4
Air Volume	45/55	Speed	2500/2900
Certification	CE

Product Description

Specifications

Offer XD13532 AC air cooling fan
1.PBT Engineering plastic and Aluminum alloy
2.CE&RoSH
3.air cooling fan

Offer XD13532 AC air cooling fan

Housing:Aluminum alloy
Size:135*135*32mm
Blade:PBT Engineering Plastics
Insulating aterial centigrade:10MΩ at 500VDC between lead and frame
Inner press:1 min at 1500VAC/50-60HZ ,current<5mA
Working temperature:-20ºC~80ºC
Working humidity :20%~85%
Working pressure:85V~125V for 110V and 190V~250V for 220V
Normal temperature working time: ball bearing hour's five,oil bearing hour's three.
Packing:40PCS/CTN
MEAS:43*24*23cm
G.W:22kgs N.W:21kgs

Model XD13532AC	Freq Hz	Voltage VAC	Bearing Style	Current AMP	Power Watts	Speed RPM	Airflow CFM	Pressure mmH2O	Noise dBA	Weight
P/N	Freq Hz	Voltage VAC	Bearing Style	Current AMP	Power Watts	Speed RPM	Airflow CFM	Pressure mmH2O	Noise dBA	Weight
XD13532A1HSL	50/60	110	S	0.34/0.30	25/20	2250/2400	95/110	6.3/7.3	7.2/8.1	700g
XD13532A1HBL	50/60	110	B	0.34/0.30	25/20	2250/2400	95/110	6.6/7.5	7.2/8.1
XD13532A2HSL	50/60	220	S	0.18/0.14	25/20	2250/2400	95/110	6.3/7.3	7.2/8.1
XD13532A2HBL	50/60	220	B	0.18/0.14	25/20	2250/2400	95/110	6.6/7.5	7.2/8.1
S Sleeve bearing, B Ball bearing					For the terminal connect version, change L in the Model to T

Conversion Table of Airflow

CFM	m³/sec	m³/min	ft³/sec
2118	1	60	35.31
35.31	0.01666	1	0.5885
60	0.02832	1.69833	1
1	0.00047	0.02832	0.01666

Conversion Table of Air Pressure

mmH₂O	inH₂O	Pa=N/m	afm
1	0.03939	9.80665	0.00009
25.4	1	249	0.00246
0.10197	0.0040	1	0.00001
10332	407.1	101325	1

The data of regular product in picture is for your reference only, please refer to the data of actual product, we can make any model custom made.
