High precision Servo Motor robotic welding arm SYCWM5-1600
- 500 Set / Sets per Month
- Qingdao / Beijing/ Shanghai
- T/T Credit Card PayPal
Product Details
| Condition: | New | Elevation Speed: | 8s | Vertical Travel(mm): | 1600mm |
| Horizonal Travel(mm): | 2500 | Application: | Other, Pick and put | Place of Origin: | Shandong, China |
| Brand Name: | SHENYU | Model Number: | SYCWM5-1600 | Power(W): | 4500W |
| Certification: | CE,SGS | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
SYCWM5-1600 Robotic Welding Arm:
Features:
Full servo horizontal large series manipulator arm used for 400--4000 tons of various plastic injection molding machine,AC servo drive for 5 axis.Finished product arm to take out the product and runner,up and down the arm struture is double cut type;Takeout time of 1.5 sec,the cycle time of all 12 sec,the biggest load of 100 kg(including finished products ang fixture).Applied to quickly remove or out a variety of applications,especially the long shape prooducts such as car bumpers,door trim and insert the embedded applications.
Specifications:
| Model | Unit | SYCWM5-1600(B+C) |
| Type | Telescopic type | |
| Moulding machine size | ton | 360-1200 |
| Vertical stroke | mm | 1600 |
| Crosswise stroke | mm | 1000 |
| Traverse stroke | mm | 2500 |
| B-axis angle | ° | 270 |
| C-axis angle | ° | 179. |
| Max load(Includes gripper) | Kg | 20 |
| Minimun take time | Sec | 8 |
| Dry cycle time(without gripper) | Sec | 35 |
| Drive mode | Full servo | |
| Working air pressure | Kgf/cm² | 6 |
| Power consumption | KW | 4.5 |
| Power | AC200±10%(50/60Hz) |
Machine size can be customized as your request.
Our factories:

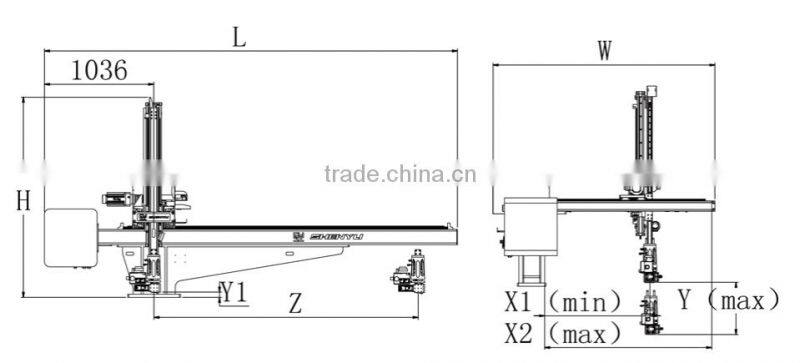

| Model | H | L | Y1 | Z | W | X1 | X2 |
| SZCWM5-1600(B+C) | 2200 | 4000 | 50 | 2450 | 1900 | 370 | 1550 |
