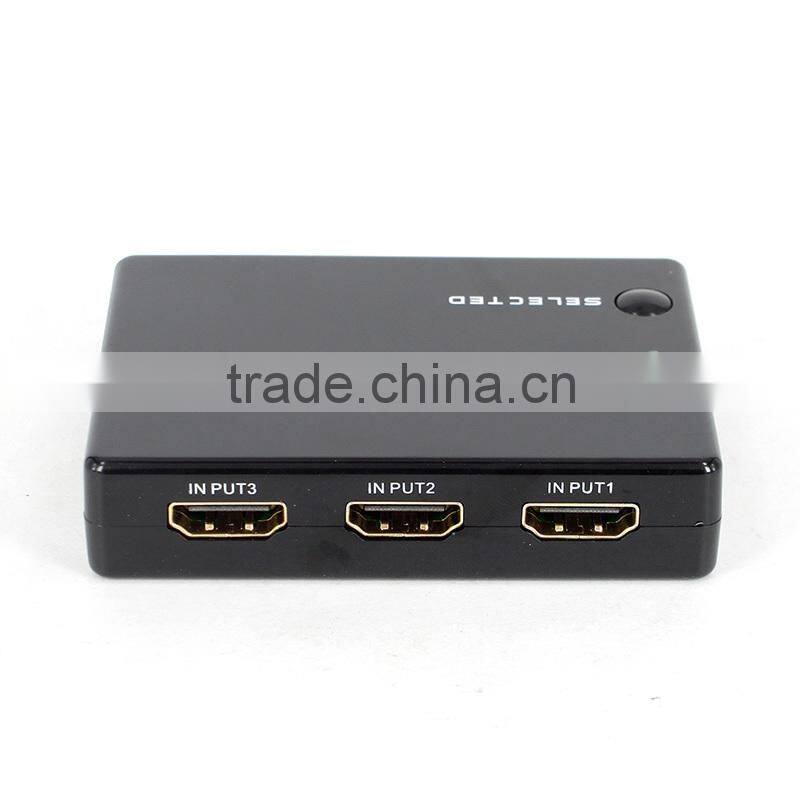

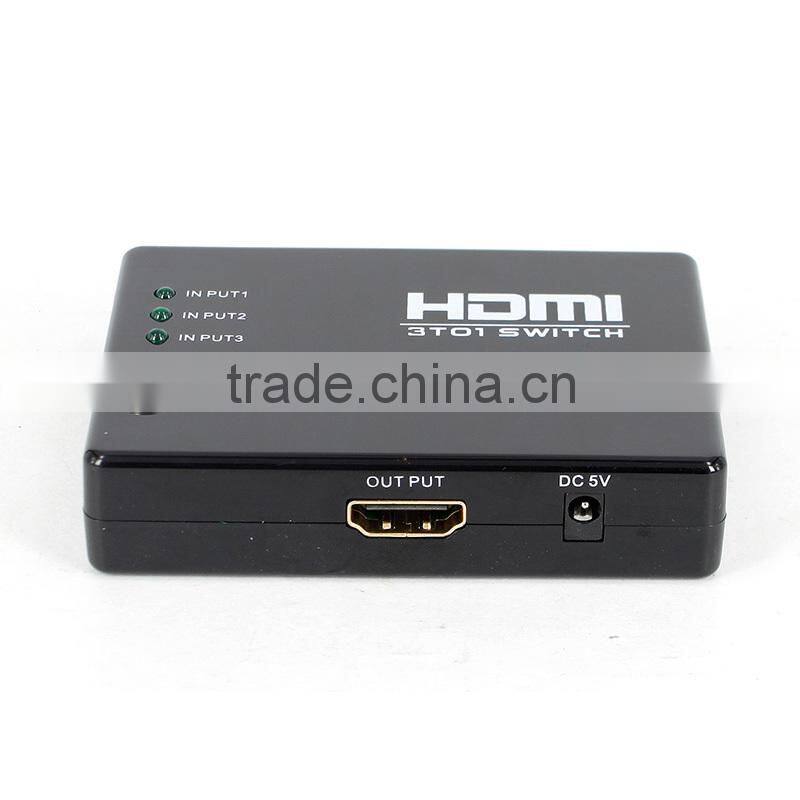

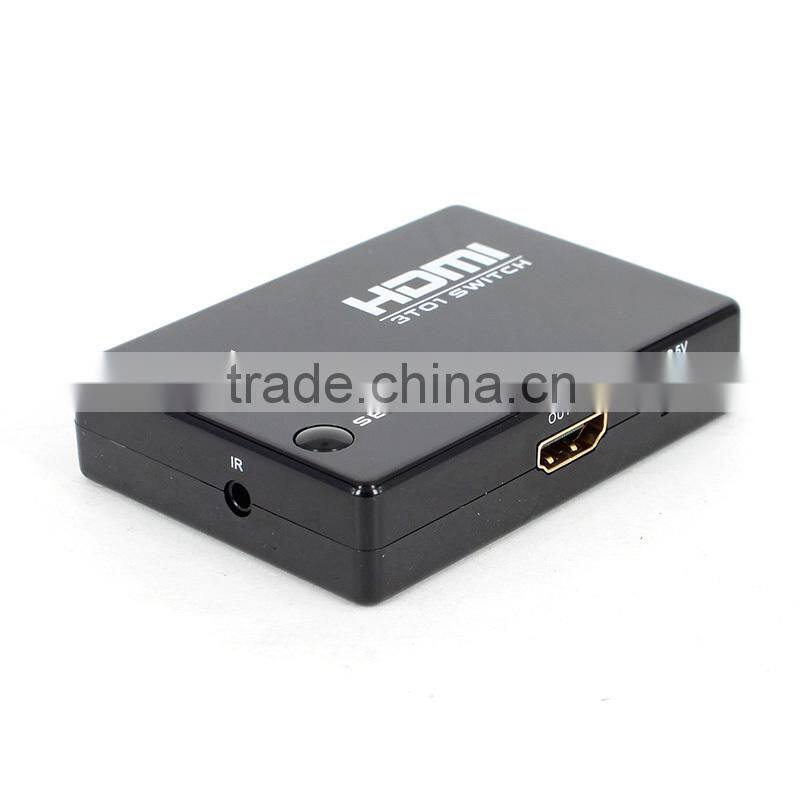

Seamlessly 3x1 HDMI Switcher 3 in 1 Out Support Remote Control With Audio Amplifier up to 1080P

Our series of HDMI converters. switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient ,more comfortable, more productive and more cost-efficient.

The 3x1 HDMI Switcher allows access to multiple HDMI sources, using a single HDMI sink.The Switcher allows three HDMI devices to be switched easily through one HDMI compatible monitor or projector. The Switcher can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

l Three HDMI input signals switched to a single HDMI sink devices

l Support deep color 30bit, 36bit

l Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

l Support signal retiming

l Support input up to 15 meters 26AWG HDMI standard cable length,

output up to 25 meters 26AWG cable length.

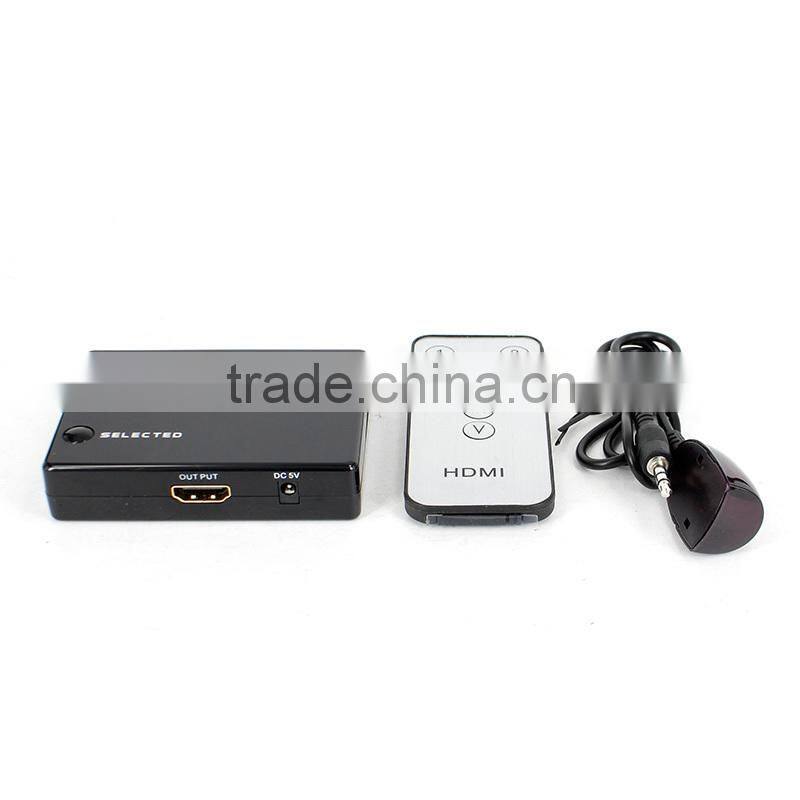

l Inputs can be switched with the IR remote control,also can be controlled by button.

l It can smartly jump over those input sources which are not connected.

l With the smart function of memory, it can come back to the latest status when restarted

or reconnected.

l No loss of quality

l Installs in minutes

l Need DC5V/1A power supply

HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit/deep color 30bit,36bit

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………………250MHz

Max baud rate…………………….………………….……………………………………7.5Gbps

Input/Output TMDS signal ………….…………………………..………...0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... ……………………….……≤15m AWG26 HDMI standard cable

Output cable distance…………………………….…...≤25m AWG26 HDMI standard cable

Max working current………………………………………………………………………...350mA

Power adapter format..Input: ……………....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H)       ……………………………….….……………………115x61x25(mm)

Weight…..…………………………………………………………..………………………….180g

Shipping:
1. UPS / DHL / FEDEX /EMS / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.

Delivery:
1. Sample within 1-3 days
2. Wholesales Orders : 5-10 days according various quantities
3. OEM 10-20 days after receiving your sample confirmation and payment.

Warranty:
1. One year warranty.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
