Cheapest GSM signal booster 900MHz mobile repeater 2g network
- 5000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
-
Lcd display gsm900 signal repeater 20dbm cellphone signal amplifier for home
-
2way splitter signal gsm 2g 3g 4g repeater wireless network splitter with signal booster
-
signal gsm 2g 3g 4g repeater use 3way splitter for signal booster 3way splitter
-
Repeater signal splitter 800-2500MHz 4way Cavity signal booster 4way signal splitter
-
800-2500MHz 2 Way Micro-strip Power Splitter/Divider use for mobile signal repeater
-
800-2500MHz 3 Way Micro-strip Power Splitter/Divider use for cellphone signal booster
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Lintratek | Model Number: | KW20L-GSM |
Product Description
Why do you need to buy Repeater/Booster?
Unfortunately,there are still some place where they can find themselves "out off coverage",no signal at all .....Usually those places are either too far from cell phone base station or located inside underground construction,for example:
1.Parking lots,tunnels
2.Big stores,office building
3.Car,boats
4.House in remote area

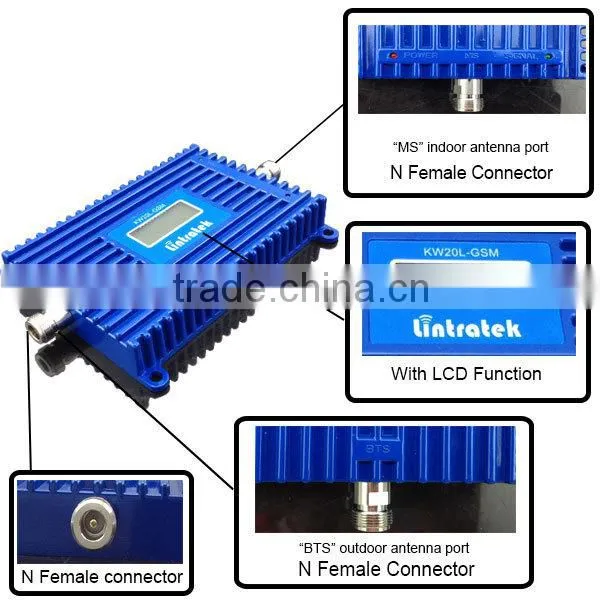

Detail photo:
Specification:
| Parameter data | Uplink | Downlink | |
| Frequency Range | GSM | 890~915MHz | 935~960MHz |
| Output Power | 17 ±2dBm | 17 ±2dBm | |
| Gain | 60 dB | 60 dB | |
| Bandwidth | 75M | ||
| Ripple in Band | GSM≤6dB | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Noise Figure @ max. gain | ≤ 6 dB | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 1A | ||
| Power Comsumption | < 5W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female N | ||
| Cooling | Heatsink Convection cooling | ||
| Dimensions (D x W xH ) | 135*105*26(mm) | ||
| Weight | < 0.9Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10°C ~ 55°C | ||
How should you install repeater (very easy and simple):
Step 1: Use your mobile photo to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).
Step 2 Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal.
Step3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.
step 4: Mount your indoor antenna with signal repeater
step5: Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal.
Note: Connect outdoor ANT (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least.
Indoor and outdoor antenna must be separated by wall.
After sale service
We have two years quality warranty for all customers,you can return goods to us when you receive defective repeater,but freight charges should be responsible by buyer.
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
