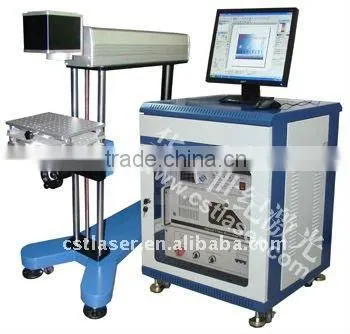

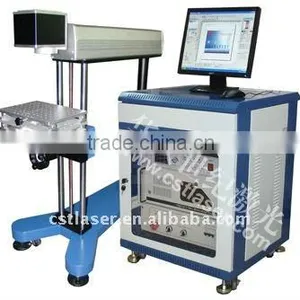

100W Semiconductor side pump laser marking machine

Specifications

25W Semiconductor side pump laser marking machine
carving line speed:below or 7000mm/s
24 hours working

25W Semiconductor side pump laser marking machine



high speed, high efficiency,high quality



Introduction:

HT-DP50 semiconductor pump series laser marker uses Galvanometer laser marking technology and most advanced semiconductor pump laser technology,makes the YAG rod generates a mass of inverted population with 800nm wavelength semiconductor laser diode pump Nd: YAG crystal,forms 1064mm wavelength giant pulse laser beam out under effect of 0 switch,through expanding  and focusing of laser beam,and finnally relises marking through controlling the defection of galvanometer. it is a revolution in laser marking field. this type of laswer marker fetures low energy consumption,high electro-optic conversion efficiency,stable laser output mode,high reliability,small size,excellent marking effect and no consumables.

the marker is designed according to ergonomics,providing beautiful appearance and simple operation. All the important optic parts are imported from Europe and America. The optics system is in fully sealed structure .it  has optics preview and focus indication fuction and provides reliable security for the 24hours continuous working of the machine.



System features:

1.High stability

The semiconductor pump laser marking system uses semiconductor technology to replace traditional electro vacuum technology and the excitation source uses high power semiconductor matrix,extending the service life of the product and system stability significantly

2.High precision

The ouput beam of semiconductor pump laser marking system is closer to ideal mode and is more suitable for hyperfine process.The minimum character size is 0.2nm,making the precision of the laser marking reach a new order of magnitude.

3.High speed

The semiconductor pump laser marking system uses hyperfine optic devices and its galvanometer speed is much higher than traditional laser system

4.Low energy consumption

The semiconductor laser marking system uses highly efficient semiconductor matrix,improvin g the laser conversion efficiency significantly

5.High reliability

The semiconductor laser marking system is highly intergrated and no high voltage power supply or high voltage device is required ,ensuring the relibility of the system

6.Small Size

The highly integrated control system allows customers to make better use of the plant space



Suitable materials and application

Carve metal and nonmetal meterials;more suitable for circumstances that require super fine and high precision.it is applied to electronic components,integrated circuit(IC),electric apparatus,mobile communication,hardware products,tool fittings,precision instrument,glasses,watch and clock,jewelry,automobile parts,plastic keys,construction materials,PVC pipes,medical instruments,etc.

Suitable materials include:common metal and alloy(all metals include iron,copper,aluminum,magnesium and zinc),rare metal and alloy(gold,nickel,and titanium),metal oxide,special surface process(phosphating,aluminum anodizing and electroplated surface),ABS material (electric apparatus shell,daily necessities),ink(light-transmitting keys,printing products),expoxy resin(packages and insulating layer of electronic components).
