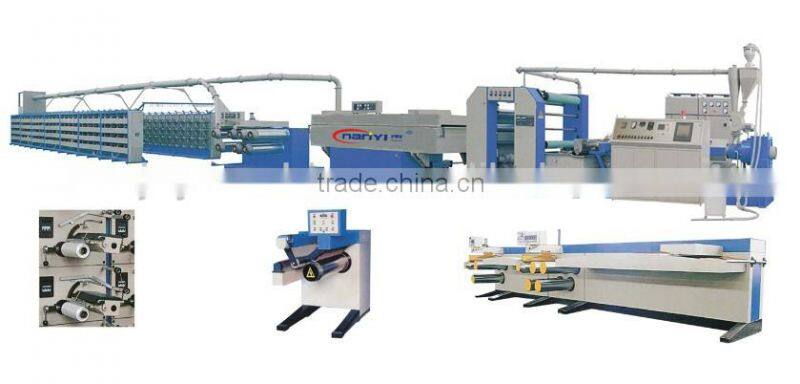

High speed flat film plastic extruder machine
1. Plastic Tape Drawing Machine:
2. More information for Plastic Tape Drawing Machine:
The NY-SPL series of high-speed flat film stretching line is advanced foreign technology and combined with reference to domestic technology independent development of specialized production equipment.The equipment is used by micro-processor control frequency conversion and advanced electrical digital analog control technology. Science principal technical index of line reach international advanced level.The line has the performance of high speed,top output and good forming quality of the fiber drum. We apply automatic filter changing structure and fibrillating structure (for flexographic packing bag and fibrillating sewing string) according to customer’s requirement.
3. Main Technical parameters:
| Type | NY-SPL-80/33/800 | NY-SPL-90/33/1000 | NY-SPL-110/30/1200 | NY-SPL-120/30/1500 | NY-SPL-135/30/2000 |
| Max extrusion output(kg/h) | 200 | 280 | 380 | 500 | 630 |
| Diameter of Screw(mm) | 80 | 90 | 110 | 120 | 160 |
| L/D ratio of screw | 33:1 | 33:1 | 30:1 | 30:1 | 30:1 |
| Rotational speed of screw(r/min) | 20-120 | 20-120 | 20-120 | 20-120 | 20-100 |
| Width of die(mm) | 800 | 1000 | 1200 | 1500 | 2000 |
| Man linear speed(m/min) | 280 | 280 | 280 | 280 | 280 |
| Flat yarn denier scope | 60-200tex | 60-200tex | 60-200tex | 60-200tex | 60-200tex |
| Drawing rate | 4-10 | 4-10 | 4-10 | 4-10 | 4-10 |
| Number of winder(spindles) | 136 | 176 | 208 | 256 | 344 |
| Dimensions of bobbin(D*L)mm | 38*230 | 38*230 | 38*230 | 38*230 | 38*230 |
| System installed power(kw) | 120 | 160 | 170 | 210 | 250 |
| Normal consumption power | 120 | 160 | 170 | 210 | 250 |
| Installing dimensions(L*W*H)mm | 29000×3600×3200 | 32000×3600×3200 | 34000×3800×3200 | 37000×3800×3200 | 45000×3800×3200 |
| Weight(kg) | 21000 | 26000 | 30000 | 32000 | 40000 |
Technical Paramters are subject to change without prior notice!
4. This machine can match with pp woven winding machine as following :
5. Pictures for other type of machines:
5.Contact us:
Wenzhou NanYi Plastic Machinery Co.,Ltd
ADD:No.268, National Road104, Aojiang Town, Wenzhou City, Zhejiang,China
Website: http://www.nanyijixie.comor
http:// zjnymachine.en.china.cn
Tel: +86-577-63696280 Fax:+86-577-63690818
Mob:+86-13867739043
Skype: lissy.xie
