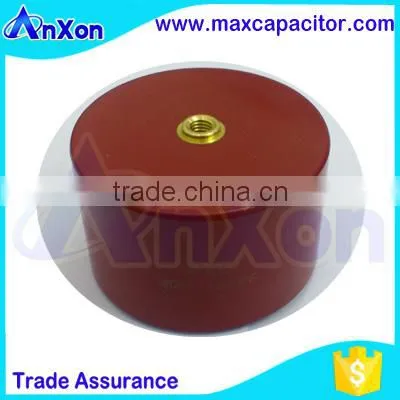

high voltage capacitor X-ray machine capacitor 80KV 2500PF
- 2000 Piece / Pieces per Month
- Ningbo
- Credit Card
-
30KV 2000PF 202 high voltage sensor AC ceramic capacitor
-
30KV 2500PF 252 High voltage capacitor supplier
-
30KV 2700PF 272 High voltage capacitor china supplier
-
30KV 4000PF 402 High voltage pulse ceramic capacitor
-
30KV 5000PF 502 High voltage power capacitor
-
30KV 7000PF 702 High voltage power ceramic capacitor
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | AnXon high voltage X-ray machine capacitor | Model Number: | CT8G high voltage X-ray machine capacitor |
| Type: | Ceramic Capacitor | Application: | Hight Voltage | Package Type: | Through Hole |
| Capacitance: | 2500PF high voltage X-ray machine capacitor | Rated Voltage: | 80KV high voltage X-ray machine capacitor | Operating Temperature: | -30C ~ 85C |
Product Description
1, Factory price
2, Quality gurrantee
3, Fast delivery
4, Low cost shipping
5, Samples available for evaluate
6, World class customers experience
Product Name: high voltage capacitor X-ray machine capacitor 80KV 2500PF
High Voltage Ceramic Capacitor 80KV 2500PF, Molded type Ultra-high Voltage Ceramic Capacitors 80KVAC, 80KVrms 252 high voltage doorknob capacitor, UHV doorknob ceramic capacitor offered by AnXon Electronic
Rated Spec: | 80KV 2500PF , 80KV 252 |
AnXon P/N | AXCHV80DL252KDB |
Tolerance: | K, ±10% |
Type: | Molded / Doorknob / Screw Mounting |
Ceramic Dielectric : | N4700 |
Operating Temperature: | -30C ~ 85C |
Size / Dimension(ΦD×T*H): | D:80mm, H:52mm |
High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:
- Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
- Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
- Impulse Voltage: 45KVdc-225KVdc
- Capacitance Range: 10pF - 100000pF
- Operating frequency: 20KHZ-1000KHZ
- Materials: N4700, Y5T, Y5P, Y5V, Y5U
High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer,
More specifications
Part No. | Rated Spec | Testing voltage | Partial discharge | Dissipation factor | Dimension(mm) | ||
kVdc | kV/1min |
| 1kHz/1V | D | H | M | |
AXCHV60DL102DB | 60KV 1000PF | DC90KV AC60KV | AC25KV<8PC | ≤0.1% | 60 | 55 | M5X6 |
AXCHV60DL122DB | 60KV 1200PF | 60 | 55 | M5X6 | |||
AXCHV60DL402KDB | 60KV 4000PF | 80 | 46 | M8X8 | |||
AXCHV70DL202KDB | 70KV 2000PF | DC110KV AC75KV | 65 | 58 | M8X8 | ||
AXCHV75DL252KDB | 75KV 2500PF | 80 | 46 | M8X8 | |||
AXCHV80DL122KDB | 80KV 1200PF | DC125KV AC80KV | 60 | 55 | M8X8 | ||
AXCHV80DL172KDB | 80KV 1700PF | 60 | 55 | M8X8 | |||
AXCHV80DL252KDB | 80KV 2500PF | 80 | 52 | M8X8 | |||
AXCHV80DL332KDB | 80KV 3300PF | 80 | 52 | M8X8 | |||
AXCHV01DL162KDB | 100KV 1600PF | DC150KV AC80KV | 60 | 58 | M8X8 | ||
HV Capacitor Application Guide
Advantage:
1.Low MOQ: It can meet your testing purpose very well.
2.Custom Design Accepted : We can produce as your design .
3.Good Service : We treat clients as friend.
4.Good Quality :We have strict quality control system .Good reputation in the market.
5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Our Innovation
1.Quality & Service At AnXon, our #1 priority has always been providing our clients with great quality products and superior customer service.
2.Quick Lead Time We're dedicated to providing the quickest turnaround times and work very Hard to ensure that all of your deadlines are met.
3.Unbeatable Prices We continuously strive to find ways of reducing our production costs, and passing the savings Over to you!
4.Brand Awareness The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers.
High Quality,Good Price,Fast Delivery,Please send us your RFQ!
