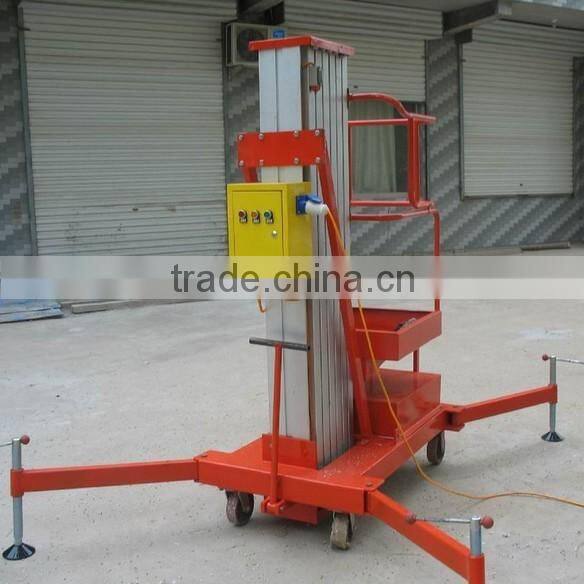

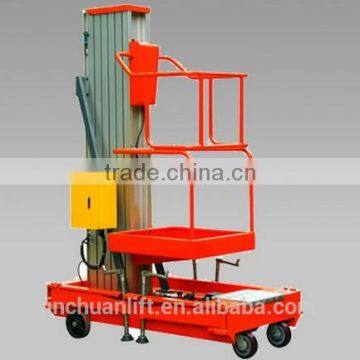

Hydraulic Single Mast Aluminum Alloy Small Indoor Man Home Mini Lift

Name: Hydraulic Single Mast Aluminum Alloy Small Indoor Man Home Mini Lift
Brand: jinchuan
SKU: 102711547
Availability: InStock

Jinan Jinchuan Hydraulic Machinery Co., Ltd.

US$ 1,500 - 2,300 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

jinchuan

Model Number:

SJYL0.1-6

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name jinchuan

Model Number SJYL0.1-6

Lift Mechanism Telescoping Lift

Lift Drive / Actuation Hydraulic

Power 0.75/1.1kw

Rated Loading Capacity 100kg

Min. Lifting Height 900mm

Max. Lifting Height 6000mm

Table Size 550*550mm

Overall Dimensions 1260*800*1980mm

Weight 380kg

Certification ISO9001

Warranty 12months

Specifications

elevated working platform
1)High Quality.
2)Electric Hydraulic.
3)extra hydraulic safety

Adopting high strength aluminum molding material keeps deflecting degree and swing tiny.

Equipped with overload safety protection device
Equipped with safeguard valve to avoid hydraulic pipe rupture
It installs the emergency manual hydraulic valve to cope with power cut.
It also can add stretch platform to extend to the desired place when the platform length isn’t enough.
Double chains greatly improve the safety factor.
Adopt emergency stop button multiple safety protection measures.
The translatable supporting legs can ensure working dead zone minimization .
Tailor-made guide wheel device equipped on the mast makes lifting smooth and stable.

The same product different models for your choice

Item		SJYL0.2-6	SJYL0.2-8	SJYL0.2-10	SJYL0.2-12	SJYL0.2-14
Capacity(kgs)		200
Min.Lifting height(m)		1.98	1.98	1.98	1.98	2.3
Max.Lifting height(m)		6	8	10	12	14
Working height		7.5	9.5	11.5	13.5	15.5
Platform size(mm)		1300*600	1400*600	1450*600	1550*600	1550*600
Overall dimension(mm)		13508501980	14508501980	15508701980	18009001980	18509002300
Power	Electric current	AC
		DC needs to add another 2battery(250$)/4battery(500$)
	Voltage	220
	Kilowatt	1.5
Net weight(kgs)		600	700	760	800	860
Main material		High strength aluminum alloy material

About us

Jinan Jinchuan Hydraulic Machinery Co., Ltd is located in Xinxiang City Henan Province, the biggest crane manufacturing base in China. Specialized in crane design and manufacturing, we have passed ISO 9001:2000, CE, SGS.

Up to now, we have exported cranes and platforms to Russia, Uzbekistan, Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Pure, Brazil, and Nigeriaand etc.

Many clients all over the world, even the best-known companies in the word, such as Italy IMF Group(the biggest complete set of foundry equipment supplier in the word), choose DGCRANE.
