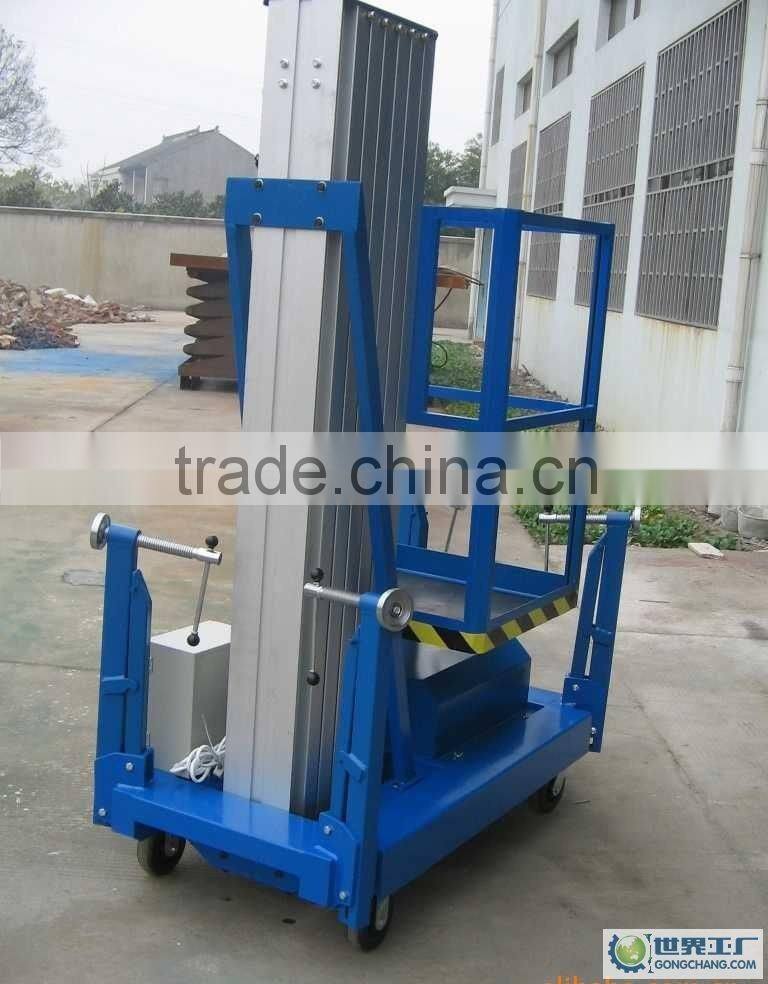

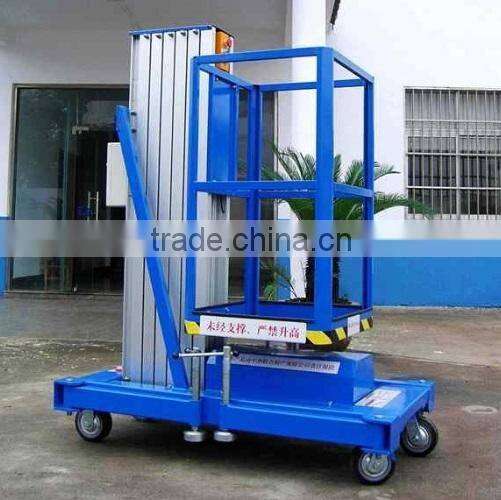

mobile aluninum electric elevator

Specifications

aluninum electric elevator
1.Smooth Operation Positioning fast

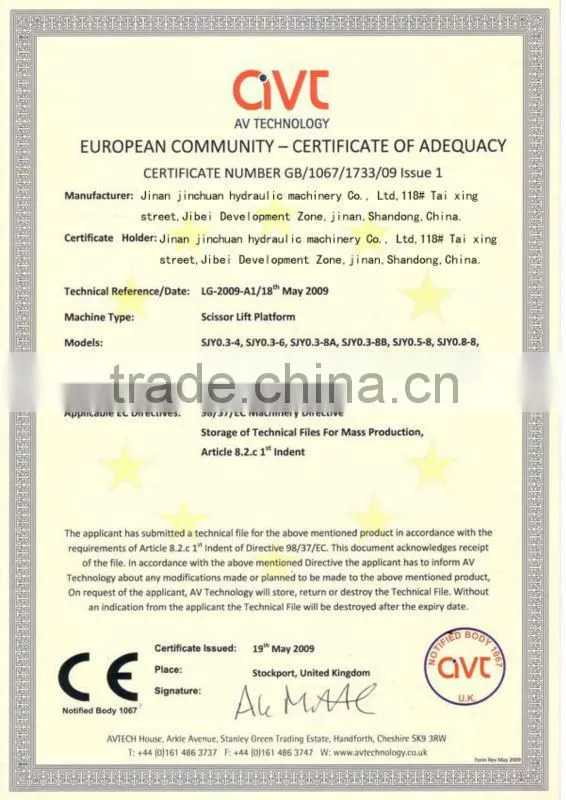

2.Motor is CE certification



aluninum electric elevator

Specifications



1.High working capacity, easily pushed around,most spacious platforms for several people to work on

2.igh strength steel structures,smoothly lift up and drop down, easily operated, few faults.

3.Moving method: 4 wheel and 2wheel types are optional, it can be pneumatic rubber tyres, solid rubber tyres or polyurethane tyres.

4.Power sources: local power available at the working sites(110V, 220V, 380V, 415V), diesel engines and generators

5.Working heights:  4m, 6m, 8m, 10m, 12m, 14m, 16m, 18m, 20m











Technical specifications

aluninum electric elevator



Model		SJYZN-6M	SJYZN-4M	SJYZN-8M	SJYZN-10M
Max height (m)		4	6	8	10
Max working height (m)		5.8	7.8	9.8	11.8
Rated load capacity(kg)		300	300	300	300
Table size m		1.92*0.9	1.92*0.9	1.92*0.9	2.4*1.2
Dimension L*W*H		2.13*1.11*1.185	2.13*1.11*1.325	2.13*1.11*1.465	2.6*1.3*1.465
Shut height m		1.185	1.325	1.465	1.465
Guardrail height mm		1.11	1.11	1.11	1.11
Stretch table m		0.8	0.8	0.8	0.8
Radius of gyration (out/in)m		2.7/1.8	2.7/1.8	2.7/1.8	2.84/2.04
Table drive speed	Shut max m/s	0.85	0.85	0.75	0.7
	Open max m/s	0.14	0.14	0.14	0.14
Deep pit protect device	Shut distance from the ground m	0.06	0.06	0.06	0.06
	Open distance from the ground	0.02	0.02	0.02	0.02
Grade ability		6	6	6	6

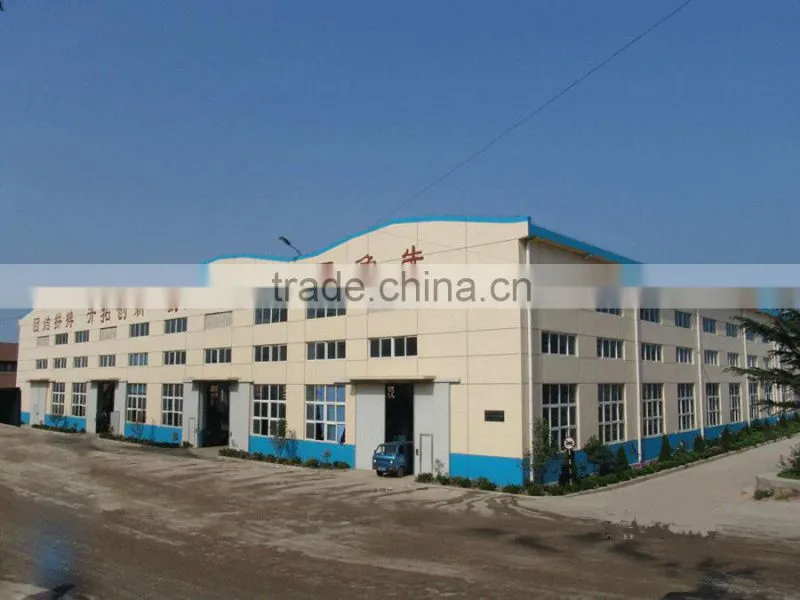

About our company

aluninum electric elevator

Jinan jinchuan hydraulic machinery co., LTD. is a design, development, production, sales in the integration of enterprise, specializing in lifting platforms and dock ramps etc. aerial work platform and hydraulic lifting machinery .



We have more than ten years experience to product

 all kinds of lift platform as below



l  Mobile scissor lift platform



l  Stationary scissor lift table



l  Stationary guide rail lift platform

l  Aluminium alloy hydraulic platforms

l  Vehicle mounted scissor lift platform

l  Mobile lift for special use

l  Self-propelled articulated work platform

l  Telescopic cylinder lift platform

l  Life stage

l  Lift with no obstacle for the elderly,the disable and special equipment.

l  Mobile hydraulic yard ramp introduction

l  Stationary hydraulic yard ramp



LOOKING FORWARD TO YOUR ORDERS
