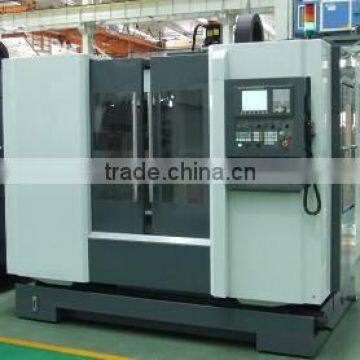

CE CNC Box Way Vertical Machining Center Hot-sale VDF1800

Item

VDF1000

VDF1200

VDF1500

VDF1800

Table(L×W)(mm)

1120×560

1220×620

1700×800

2000×800

T-slot(Numbers × Width × Distance) (b/t slots)

5×18×100

5×18×100

6×18×125

Table load Max(kg)

750

1200

2500

The distance from spindle center line to column guide way surface(mm)

629

660

850

The distance from spindle nose end face to table upper surface(mm)

135-735

90-765

200-962

180-942

X/Y/Z travel(mm)

1020/560/600

1200/600/675

1530/800/762

1850/800/762

X/Y/Z guide way type

box way

box way
Y-axis 4 rails

box way
Y-axis 4 rails

X/Y/Z rapid traverse speed(m/min)

24/24/18

20/20/18

15/15/12

Feedrate (mm/min)

1-10000

1-10000

1-6000

X/Y/Z servo motor power(Nm)

12/12/12

22/22/22

22/22/22

Spindle motor power(kW)

7.5/11

11/15

11/15 wide range motor

Spindle speed range(r/min)

60-8000

45-6000

45-6000

Spindle taper

#40(7/24)

#50(7/24)

#50(7/24)

Tool magazine capacity/Type

20/drum
24/swingarm

24/swing arm

24/swing arm

Tool adaptor type

BT40

BT50

BT50

Max. Tool weight(kg)

7

15

15

Max. Tool diameter/length(mm)

77/305
swing arm

127/305
swing arm

110/350swingarm

Time of tool change(T-T)(sec)

6-8/3

3.5

3.5

Air pressure requirement (mPa)

0.6

0.6

0.6

Power requirement (kW)

25

35

40

Overall dimension(L×W×H)

2820×2820×2477

2880×2815×2791

4300×3480×3120

5160×3480×3120

Net weight (kg)

8000

8500

14000

14500
