Y3150e economic hydraulic gear hobbing machine Quality Choice

FOB Price

USD $24,500 - $24,900 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Dalian/Tianjing/Shanghai/Qingdao China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Gear Hobbing Machine
CNC or Not	Normal	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	Y3150e gear hobbing machine
Voltage	220V 380V 400V 415V 440V 480V	Power(W)	6.45kW
Dimension(LWH)	2439x1272x1770mm	Weight	4300kgs
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

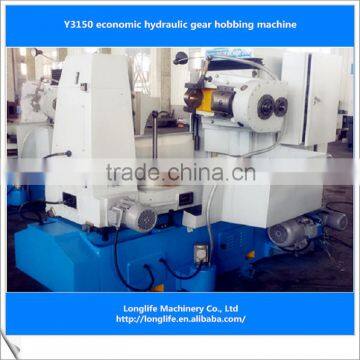

Y3150e hydraulic gear hobbing machine

Main Features

y3150e hydraulic gear hobbing machine has following features:

1. it is capable of cutting spur and helical gears, worm wheels, sprockets and short spline shafte in one-off, small-scale and a large-scale production.

2. The machine features reasonable construction, high rigidity, high working accuracy, easy operation, and simple setup.

3. It can work in the conventional or climb method. It is equipped with an automatic shut-down device, safety-securing mechanisms and an automatic lubricating system. The machine can be furnished with imported hydraulic components or tangential hob head for cutting worm wheel in tangential feed mode on customer’s request.

4. Machining accuracy: class 7.

5. workpiece clamped on tailstock is hydraulic;

Main Technical Data

Specifications	Unit	y3150 gear hobbing machine
Max. workpiece diameter	mm	500
Max. tooth width	mm	250
Max. hobbing modulus	mm	8
Min tooth number of workpiece		Z min/K number of hobbing head=5
Max. hob diameter	mm	160
Max. hob length	mm	160
Max. swivel angle of tool holder	°	240
Min. swivel angle of tool holder	°	5
Max. hob shifting travel	mm	55(manual)
Tool spindle bore taper		MT5
Tool bar diameter(changeable)	mm	22 27 32
Vertical travel speed of tool holder	mm/min	532
Vertical travel speed of tool holder(manual)	mm/min	0.75
Distance from hob axis to worktable axis	mm	max. 330, min 30
Worktable diameter	mm	510
Worktable bore diameter	mm	80
Max. worktable speed	r/min	7.8
Rapid transverse of worktable(hydraulic)	mm	50
Main motor power	kW	4
Total power	kW	6.45
Machine dimensions(L×W×H)	mm	2439×1272×1770
N.W/G.W	kg	4300/5200

Free Std Accessories

Name	Code	specification	Qty	Remark
Main machine and parts			1	case
Standard change gears			1 set
Tools for installation and setup			yes
Technical documents
Operation manucal(I)			1	Mechnical and hydraulic
Operation manucal(II)			1	electric
Certificate of conformity			1
Packing list			1
Catalogue of parts			1
Tools and Accessories
Oil gun			1 pc
Hex. nut			6 pcs
Foundation bolts			6 pcs
Wrench
